Description
Key Technical Specifications
- Product Model: AAI143-S00
- Manufacturer: Yokogawa Electric
- Channel Count: 16 Isolated Channels
- Input Signal: 4 to 20 mA DC
- Input Impedance: 270Ω (at 20mA) to 350Ω (at 4mA)
- Accuracy: ±16 µA
- Data Update Cycle: 10 ms
- Isolation: Channel-to-system isolation (1500 V AC, 1 min)
- Power Supply: 24 VDC (Internal bus)
- Current Consumption: 540 mA (24V), 230 mA (5V)
- Operating Temp: -20°C to +70°C (with G3 option)
Product Introduction
Your DCS shows a flatline on a critical flow loop. The transmitter is fine. The wiring is fine. The problem is the input card. The Yokogawa AAI143-S00 is the workhorse analog input module for CENTUM VP and CS3000 systems, pulling 16 channels of 4-20mA signals through the backplane and into your control logic. It’s isolated, it’s fast (10ms update), and it’s been running refineries for decades.
Bottom line—you’re buying a discontinued part. That means you need to check the hardware revision and the “-S00” suffix. The “S” means standard type, “00” means basic configuration. If your old card had a different suffix, this won’t be a plug-and-play swap. Verify the revision index on the nameplate against your system documentation before you order.
Troubleshooting Quick Reference
- Channel Reads 0 mA / Open Wire: 85% chance it’s a field issue. Measure voltage at the module terminal. If 24V loop power is present but no current, check the transmitter and wiring. If voltage is missing, check the 24V supply rail.
- Erratic / Noisy Reading: Ground loop or bad termination. Check shield grounding at the marshalling panel. Verify the 270Ω input impedance isn’t being bypassed by a parallel load.
- All Channels Dead: Backplane power failure. Measure 5V and 24V at the module’s backplane connector. If both are good, the module’s internal power stage is likely failed.
- Module Fault LED Lit: Internal self-test failure. Power cycle the module. If the LED stays on, pull it and test in a known-good slot. If it fails again, the module is dead.
- HART Comm Fails: Wrong module type. The “-S00” is a standard analog input. HART communication requires the “-H50” or “-H53” variant. Check your order.

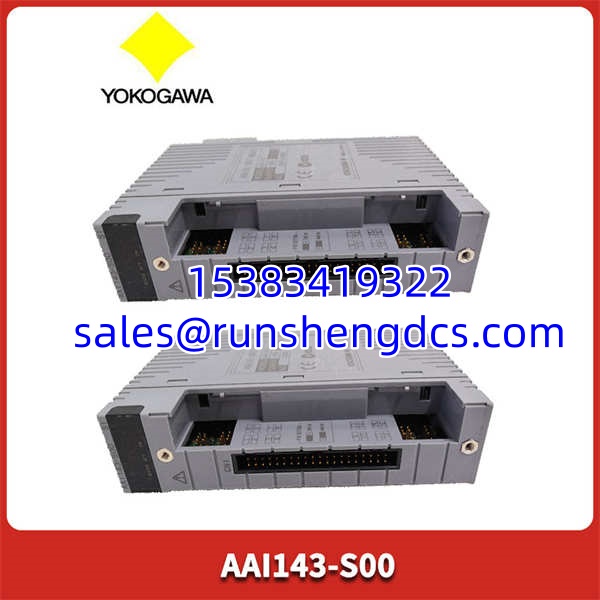

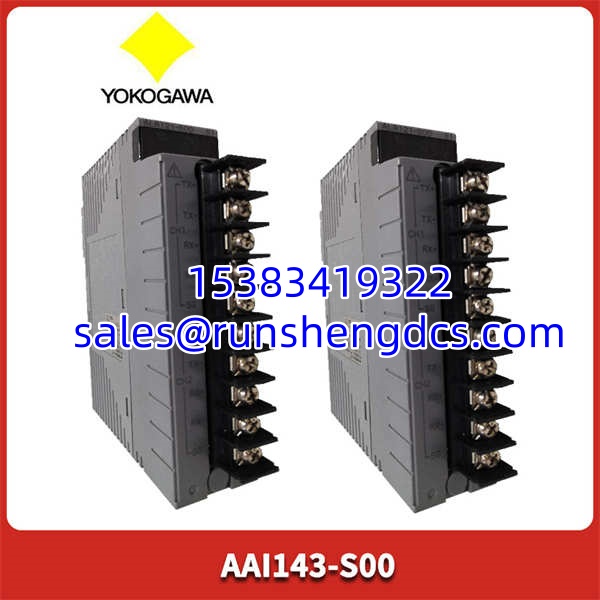

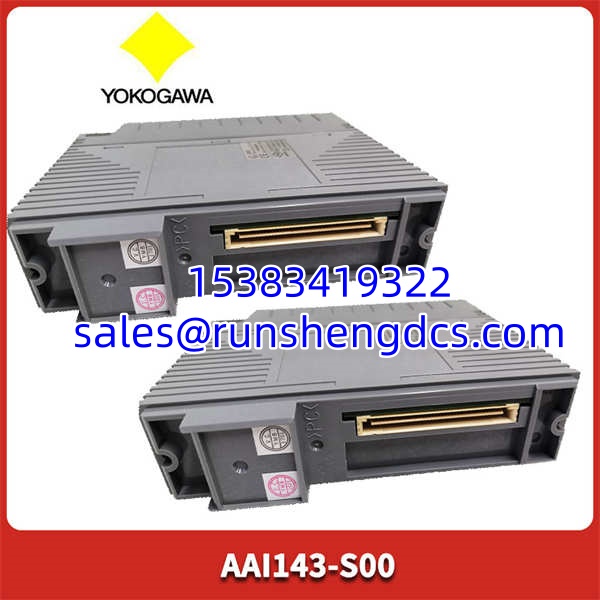

YOKOGAWA AAI143-S00
Application Scenarios & Pain Points
- Refinery Distillation Column: 20-year-old CS3000 system. Pain point: OEM parts are scarce, and lead times are 16+ weeks. A verified AAI143-S00 spare cuts downtime from months to days.
- Power Plant BOP Control: Feedwater and lube oil monitoring. Pain point: Aging electrolytic caps on legacy cards. Bench testing reveals marginal 5V rails before they fail in the field.
- Chemical Batch Reactor: Precision temperature control. Pain point: ±16µA accuracy drift over time. A refurbished unit with a fresh calibration certificate gets you back to spec without a full system upgrade.
Compatible Replacement Models
- ✅ Drop-in Replacement: AAI143-S00 (Exact match, verified surplus). No config changes. Swap and verify diagnostics. Stock is finite—secure your spare now.
- ⚠️ Software Compatible: AAI143-S03 (G3 option, -20 to +70°C). Same base module, enhanced temperature range. Requires Safety Designer/Exaopc config check. No reprogramming needed, but verify your cabinet cooling can handle the G3 option’s power draw.
- ❌ Hardware Incompatible: AAI143-H50 (HART version). Different internal circuitry for digital comms. Will not function as a direct replacement for a standard “-S00” application. Do not substitute unless your system requires HART.
