Description
Key Technical Specifications
- Product Model: 5501-470
- Manufacturer: Woodward
- Product Type: Digital Control Module
- System Compatibility: Woodward Micronet / MicroNet 5500 Series
- Processor: Motorola 68020 (16 MHz)
- Memory: 512 KB RAM, 256 KB ROM
- Input Voltage: 24V DC
- Control Accuracy: ±0.1% Speed Regulation
- Response Time: <10ms
- Communication: RS-232, RS-485 (Modbus), Ethernet, CANopen
- Operating Temp: -40°C to +85°C
- Condition: Refurbished / Tested (Verify with vendor)
Product Introduction
Gas turbine throws a speed control fault during synchronization, and the backup controller is lagging. The Woodward 5501-470 is the exact digital control module you need to restore prime mover stability. Sitting in the control rack, this Micronet CPU is the brain of the governor, taking analog speed signals and executing PID loops to manage fuel valves and load sharing with extreme precision.
Bottom line—this controller is built for the harsh reality of power generation. The 5501-470 uses a Motorola 68020 processor to deliver a blistering <10ms response time and ±0.1% speed regulation accuracy. It operates flawlessly from -40°C up to 85°C, making it ideal for unheated turbine enclosures. Sourcing these today means relying on verified refurbished units, but getting the right firmware revision prevents a $100k/hour grid trip caused by a load rejection.
Troubleshooting Quick Reference
- Speed Instability / Hunting: 70% chance of degraded PID tuning or actuator feedback issue. Check the actuator LVDT wiring. Verify PID parameters in NETCON Configurator.
- Comm Loss / Network Drop: 80% chance of RS-485 termination or Modbus mismatch. Check the 120Ω termination resistor. Verify the baud rate hasn’t been corrupted.
- Module Fault LED Solid: Internal processor or memory failure. Check the diagnostic buffer. Swap the CPU module.
- No 24V Power to Module: Backplane power issue. Measure 24VDC at the module input terminals. Check the rack power supply.
- Intermittent Control Drops: EMI or loose connector. Reseat the module. Check the shield grounding on the speed sensor cables.

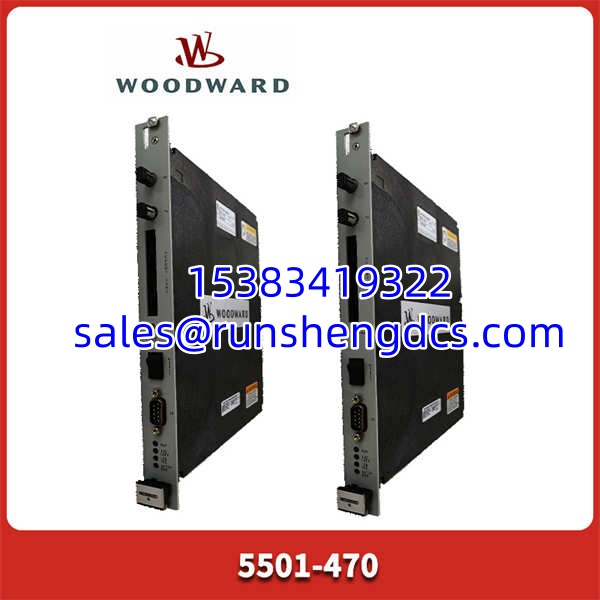

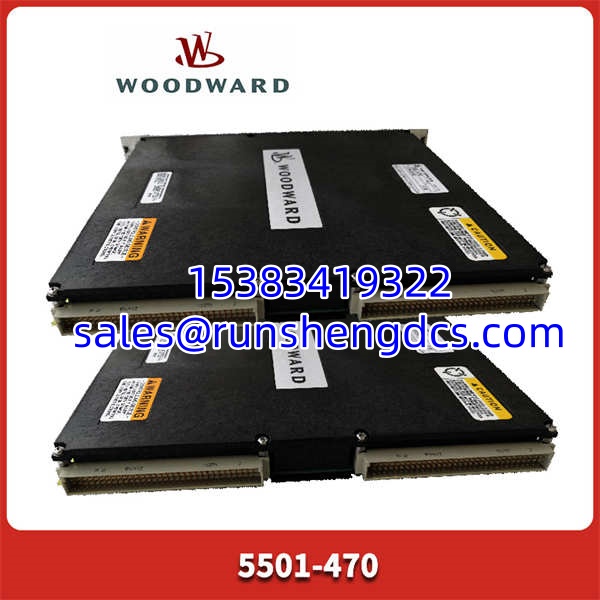

WOODWARD 5501-470
Application Scenarios & Pain Points
- Gas & Steam Turbine Power Plants: Speed governing and load sharing. Requires zero-tolerance for control drift during grid synchronization.
- Marine Propulsion: Main engine and auxiliary generator control. Harsh vibration and salt-air environments where standard PLCs fail.
- Oil & Gas Compression: Pipeline compressor drivers. Remote locations where a failed controller means missing the next service window.
- Industrial Mechanical Drive: Centrifugal compressors and pumps. Needs fast dynamic response to prevent surge conditions.
