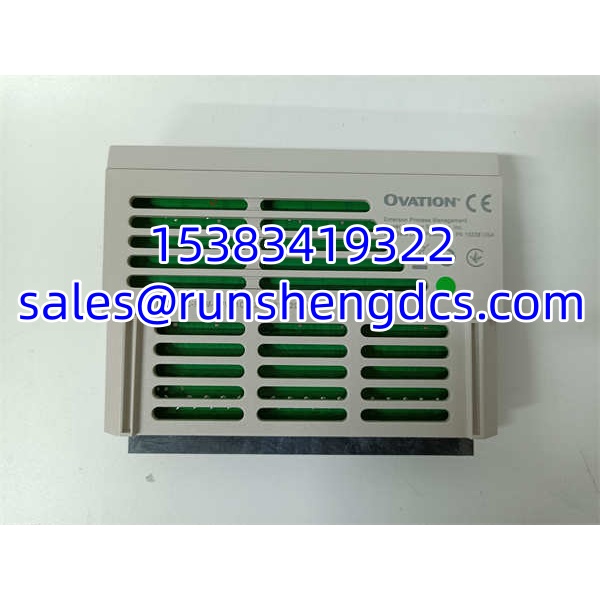

A DCS does not announce a bad analog card with a warning light. It announces it with a drifting temperature reading, a stuck flow value, or an alarm that the operator has learned to ignore. The Westinghouse/Emerson 1C31227G01 is an 8-channel analog input personality module for the Ovation DCS, designed to accept 4–20 mA current signals from field transmitters and convert them into digital values the controller can use for regulation, alarming, and data logging.

In the Ovation I/O architecture, the 1C31227G01 is the personality module — it defines the signal type and channel characteristics — and it mates with a corresponding electronics module and field terminal assembly (FTA). This separation is important: the 1C31227G01 alone is not a complete standalone I/O card. It must be paired with the correct Ovation electronics module and wired to the correct FTA terminals. It was commonly deployed in power generation, water treatment, and process plants where 4–20 mA transmitters for pressure, level, flow, and temperature needed reliable, diagnostics-enabled acquisition.

WESTINGHOUSE 1C31227G01

QA/QC Transparency SOP

Every 1C31227G01 unit goes through a structured pre-shipment check:

1. Intake & Origin Verification — Confirm part number 1C31227G01, inspect for physical damage, connector pin integrity, and label authenticity.
2. Visual & Connector Inspection — Check the personality module contacts, mating edge, and FTA connector for corrosion, bent pins, or burnt traces.
3. Bench Functional Test — Install the module in a compatible Ovation carrier with the correct electronics module. Apply a known 4–20 mA signal and verify the controller reads the correct engineering units.
4. Channel-by-Channel Verification — Test all 8 channels for accuracy, linearity, and diagnostic status. Verify open-circuit and short-circuit diagnostics trigger correctly.
5. Final QC & Anti-Static Packaging — Document test results, photograph labels and connectors, then pack in anti-static material for shipment.

Field Engineer Gotchas

It is a personality module, not a standalone card.
The 1C31227G01 must be paired with the correct Ovation electronics module and FTA. Swapping only the personality module without verifying the electronics module revision can result in mismatched channel behavior or the controller failing to recognize the I/O point configuration.

4–20 mA wiring polarity matters.

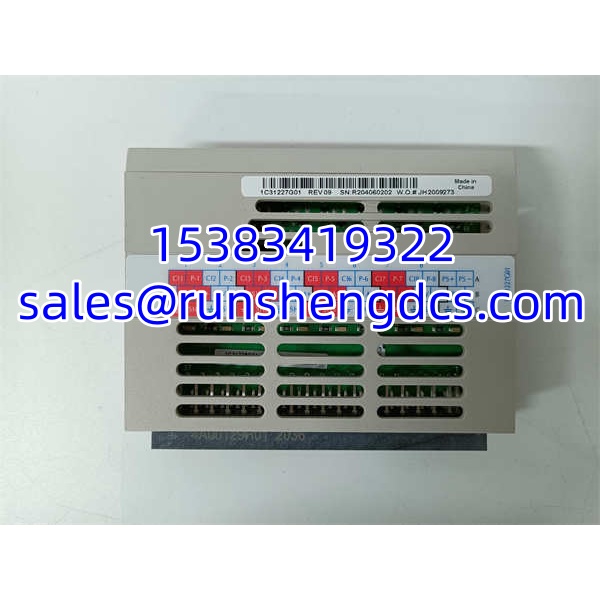

On Ovation AI cards, the positive terminal typically goes to the A column, negative to the B column, and shield to the C column. For internally powered (DCS-sourced) loops, P(n) and CI(n) must be shorted at the terminal block. For externally powered loops, that jumper must be removed. Wrong wiring produces zero readings, saturated readings, or blown fuses.

Diagnostics can mask a real process fault.
The 1C31227G01 includes channel-level diagnostics. If a channel reports a fault, it could be a broken wire, a failed transmitter, a blown fuse at the FTA, or a bad module. Do not replace the module until you have verified the field loop with a mA source or clamp meter.

Resolution is 14-bit, not 16-bit.
Some third-party listings claim 16-bit resolution for this module, but authoritative references specify 14-bit. If your control strategy depends on fine resolution near the lower end of the 4–20 mA range, verify the actual digitization step size before assuming equivalence with newer AI modules.

Surplus market listings are inconsistent.
The 1C31227G01 appears under both “Westinghouse” and “Emerson” branding, and some sellers mislabel it as a digital or universal analog module. Always confirm the part number on the physical label and verify it matches the Ovation I/O configuration database before purchasing.

WESTINGHOUSE 1C31227G01

Application Scenarios

Power plant process monitoring.
The 1C31227G01 was commonly used to acquire 4–20 mA signals from pressure, level, and temperature transmitters in boiler feedwater, condenser vacuum, and auxiliary systems. The built-in diagnostics help identify failed transmitters before they cause trip conditions.

Water and wastewater treatment.
Municipal water plants running Ovation DCS use 4–20 mA AI modules to monitor flow meters, tank levels, chlorine residuals, and pump discharge pressures. The 8-channel density keeps I/O rack footprint manageable.

Legacy Ovation maintenance and migration planning.
Facilities still running Westinghouse-era Ovation systems need replacement personality modules when channels drift or fail. The 1C31227G01 is a like-for-like replacement that avoids the cost and risk of a full I/O rack migration.

Case note: A power plant reported that two channels on a 1C31227G01 AI module read saturated high after a routine transmitter calibration. The module was replaced, but the new module showed the same behavior. The root cause was incorrect FTA wiring — the P/CI jumpers had been installed for internal power, but the transmitters were externally powered. Removing the jumpers and re-verifying the loop restored correct readings. The module was not faulty; the wiring was.

FAQ

Is the 1C31227G01 a complete I/O card?
No. It is the analog input personality module. It must be installed with the correct Ovation electronics module and wired to the appropriate FTA to function as a complete I/O channel.

What signal range does it support?
The 1C31227G01 is specified for 4–20 mA current input. It is not a universal analog input module for voltage, RTD, or thermocouple signals.

Can I substitute it with 1C31224G01?
Not without verification. Both are Ovation analog input modules in the 1C3122x family, but the G01 and G02 revisions may differ in electronics module pairing, diagnostics behavior, or terminal assignments. Always match the exact part number from the failed unit and the Ovation configuration database.

Does it support HART?
No. The 1C31227G01 is a standard 4–20 mA analog input module. HART capability requires a dedicated HART AI module in the Ovation system.

Is it hot-swappable?
Yes. Ovation I/O modules support hot-swap replacement without shutting down the controller. However, the affected process points will be unavailable during the swap, so coordinate with operations.

What is the operating temperature range?
0°C to 60°C typical, with 0% to 95% humidity, non-condensing. Verify the actual cabinet environment if the module is installed near heat sources or in unconditioned I/O rooms.

Where can I find the wiring diagram?
Refer to the Ovation I/O wiring manual for the specific FTA paired with your electronics module. For 4–20 mA AI cards, the general rule is: positive to A column, negative to B column, shield to C column; internal-power loops require P/CI jumpers.
