Description
Key Technical Specifications

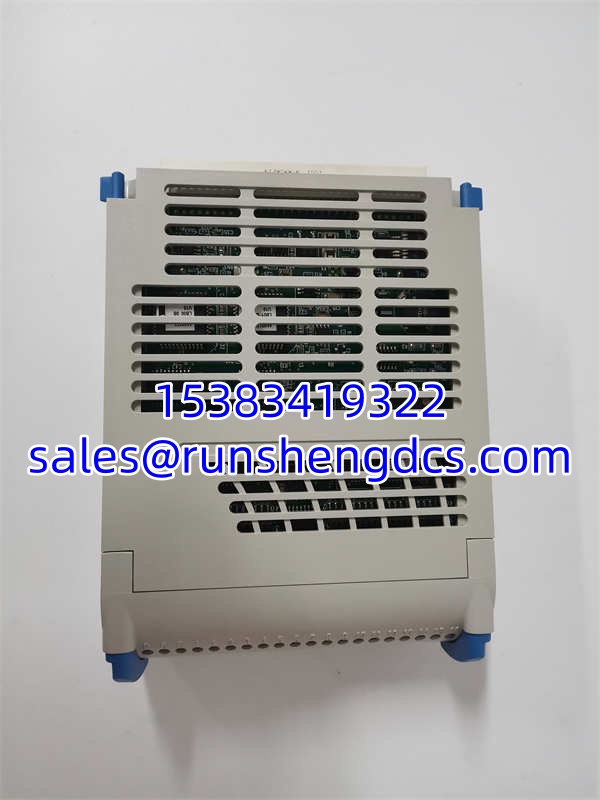

- Product Model: 1C31166G02
- Manufacturer: Westinghouse (Emerson Process Management)
- Product Type: Digital Input Module (LC Card)
- System Platform: Ovation DCS / WDPF
- Signal Type: Digital / Discrete Input
- Logic Voltage: 24 VDC (Typical)
- Channel Count: Multi-channel (Verify specific sub-revision)
- Backplane Interface: Ovation Standard LC Slot
- Diagnostics: LED Status Indicators (P, C, E, I)
- Operating Temp: 0°C to 60°C (Control Room Rated)
- Mounting: Ovation LC Rack / Drop
- Warranty: 1 Year (Supplier Dependent)
Product Introduction
Ovation racks don’t care about your spare parts budget. When a digital input card fails, you lose visibility on limit switches and valve positions instantly. The Westinghouse 1C31166G02 is a standard LC-series digital input module designed for the Ovation DCS backplane, handling discrete signal conditioning and status reporting. (Honestly, mixing up the G01 and G02 revisions is a classic field mistake—always check the suffix before you slot it in).
Why hunt for this specific legacy card? Because migrating an Ovation system costs a fortune in engineering hours. The Westinghouse 1C31166G02 provides reliable 24VDC logic processing with built-in diagnostics for power, communication, and internal faults. Finding verified surplus units is getting tougher as Emerson pushes newer I/O, but keeping a tested spare on the shelf is the only way to avoid a 3 AM scramble for a 20-year-old part.
Troubleshooting Quick Reference
- Module Dead (No LEDs) | Backplane 24V or seating issue | 90% | Measure 24V at LC drop connector | Reseat card, check backplane fuse
- E LED Solid Red | External field fault | 80% | Check field wiring & fuse | Verify 24V source, check for short
- I LED Solid Red | Internal module failure | 70% | Swap with known good card | RMA module if fault follows card
- C LED Off/Blinking | Backplane comm loss | 60% | Check adjacent cards & rack | Verify controller status, reseat
- Chattering Inputs | Noise or bad termination | 50% | Check shield grounding | Verify dry contact vs. sourced wiring

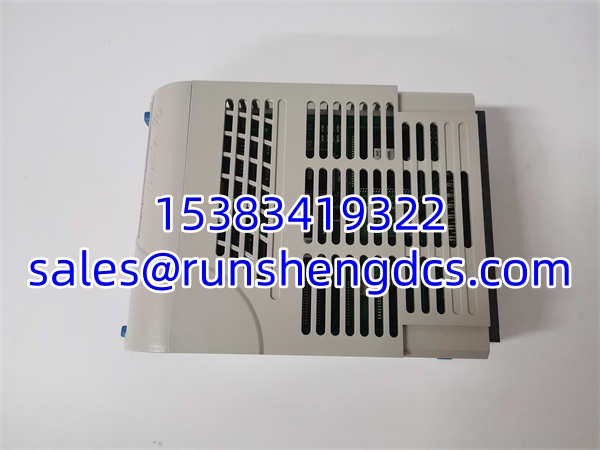

WESTINGHOUSE 1C31166G02
Application Scenarios & Pain Points
- Coal-Fired Power Plants: High EMI from motor starters causes input chatter. The Westinghouse 1C31166G02 has filtering, but verify your field wiring isn’t running parallel to VFD cables.
- Water Treatment Facilities: Corrosive atmospheres attack backplane pins. The 1C31166G02 is conformal coated, but inspect the edge connector for green oxidation before blaming the card.
- Oil & Gas Separators: 24VDC ground loops are common. The Westinghouse 1C31166G02 expects isolated inputs; if you’re seeing phantom trips, check your field ground potential relative to the cabinet.
