Description

Key Technical Specifications

Product Model: 3805E
Manufacturer: TRICONEX
Product Type: Enhanced Analog Output (AO) Module
System Architecture: Triple Modular Redundancy (TMR)
Channel Count: 8 Independent Output Channels
Output Signal: 4-20 mA DC (+6% Overrange)
Resolution: 12-bit
Output Accuracy: <0.25% FSR (4-20 mA range)
Fault Switching Time: <10 ms (typical)
Isolation: None (Common Return, DC Coupled)
Operating Temp: 0°C to 60°C (32°F to 140°F)
Diagnostics: Module Status, Load, PWR1, PWR2 LEDs

Product Introduction

When your Safety Instrumented System (SIS) needs to close a valve in an emergency, you don’t have time for a single point of failure. The TRICONEX 3805E is the muscle behind that command, taking the TMR controller’s vote and driving the field device with absolute certainty. I’ve seen plants try to save money by using standard PLC outputs for safety; they always regret it when a stuck output causes a trip or, worse, a failure to trip. The 3805E exists to prevent that nightmare.

Engineers trust the 3805E because it doesn’t just output a signal; it validates it. With internal diagnostics and a fault switching time under 10ms, it catches open circuits or shorted loads before they compromise the safety function. One subjective note from the field: this card runs warm. The 3805E dissipates more heat than your average analog output because it’s doing three times the work internally. Ensure your panel cooling is adequate, or you’ll be chasing thermal derating issues in the middle of summer.

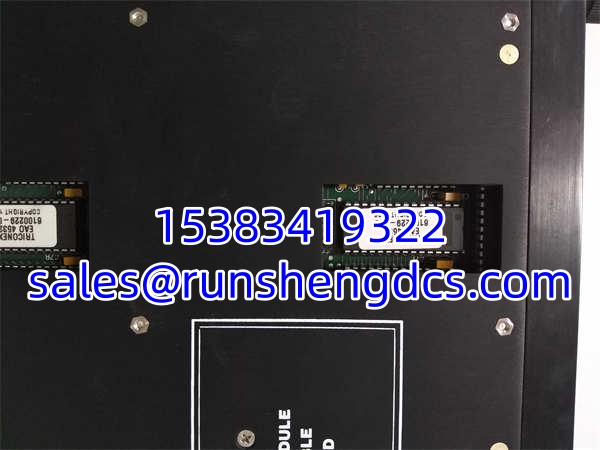

TRICONEX 3805E

Quality SOP & Tech Pitfalls

We don’t ship untested safety cards. Every 3805E undergoes a visual inspection for cold solder joints or connector damage, followed by a live rack test where we force outputs and verify the 4-20mA current against a precision calibrator. I use a Fluke 115 to check loop resistance and ensure the common return isn’t floating. Firmware revision is logged, and the unit is sealed in anti-static packaging.

Here is the brutal reality: LOAD alarms on the 3805E are usually field wiring problems, not card failures. I’ve seen techs swap three “bad” cards before realizing there was a short in the junction box. Don’t be that guy. Also, never ignore the PWR1/PWR2 LEDs. If one is out, your loop power supply is failing, and the 3805E is running on borrowed time. And for the love of safety, verify your jumper settings. I once saw a 3805E configured for 0-10V when the field device needed 4-20mA; the card didn’t fail, but the valve didn’t move either.

Installation & Configuration Guide

Pre-Installation: ⚠️ SAFETY FIRST. Put the SIS in maintenance mode or bypass the affected loop. Verify zero energy on the field loop. Photograph the old 3805E‘s jumper block and wiring before touching anything.
Removal: Label every wire. Release the DIN clip gently; these racks get brittle. Pull the 3805E straight out to avoid bending backplane pins.
Installation: COPY ALL JUMPER SETTINGS NOW. This prevents 90% of startup headaches. Align the new 3805E with the backplane, press firmly until seated, and reconnect wires exactly as photographed. Torque terminal screws to spec.
Power-On & Testing: Restore power. Check the 3805E LEDs: Module Status should be green, PWR1/PWR2 solid. Go online in TriStation and force a 50% output; verify 12mA at the field device. Check for LOAD or RANGE alarms in the diagnostic buffer.

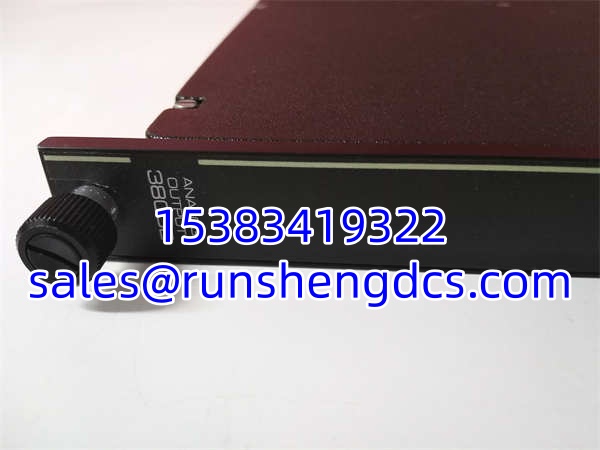

TRICONEX 3805E

Compatible Replacement Models

✅ Drop-in Replacement: 3805E (Ensure the suffix matches; some older revisions have different loop power requirements).
⚠️ Software Compatible: 3805E-RevC (Same hardware, but requires a firmware update in the chassis; expect 15 minutes of config time).
❌ Hardware Mod Required: 3806E (Different channel count and pinout; do not attempt to force this into a 3805E slot without rewiring the entire marshalling panel).

Frequently Asked Questions

Can I hot-swap this module while the SIS is running?
Yes, the 3805E supports hot-swapping, but only if your system is configured for it and the loop is in a safe state. I still recommend putting the loop in maintenance mode first. Hot-swapping a live safety output can cause a momentary glitch that might trip a sensitive final element. Better safe than sorry.

The “LOAD” LED is on. Is the card dead?
Not necessarily. The 3805E triggers a LOAD alarm when it detects an open circuit or a short. Check your field wiring first. I’ve seen countless “bad” 3805E cards that were perfectly fine once we fixed a corroded terminal in the field junction box. Only swap the card if the diagnostics confirm an internal fault.

Do I need to calibrate this in the field?
No. The 3805E is factory-calibrated and self-calibrating. You can verify the output with a multimeter, but don’t try to adjust internal pots; there aren’t any. If it’s out of spec, replace it.

Is this compatible with older Tricon chassis?
Generally, yes, but verify the backplane revision. The 3805E is designed for the Tricon TMR architecture, but mixing very old chassis with newer cards can sometimes cause power distribution issues. Check the OEM compatibility matrix before installing.

What happens if the loop power fails?
The 3805E will detect the loss of PWR1 or PWR2 and trigger a diagnostic alarm. The outputs will go to their configured fail-safe state (usually 0mA or hold last). Don’t wait for the alarm; if your loop power supply is acting up, replace it before the 3805E has to go into safe state.

Can I use this for non-safety control?
You can, but it’s overkill and expensive. The 3805E is a safety-rated card with TMR voting. Using it for basic process control wastes its diagnostic capabilities and budget. Save the 3805E for where it actually prevents a catastrophe.
