Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 3721C |
| Module Type | Tricon Communication Module (TCM) |
| Ethernet Ports | 2x 10/100Base-TX copper Ethernet (NET 1, NET 2) |
| Serial Ports | 4x RS-232/RS-485, each up to 115.2 kbps |
| Debug Port | 1x dedicated debug port (Triconex internal use) |
| Port Isolation | 500 VDC |
| Supported Protocols | TriStation, Modbus (master/slave), TCP/IP, UDP/IP, ICMP, SNTP, TSAA, Jet Direct |
| GPS Time Sync | Via serial port #1 with Trimble GPS receiver |
| OPC Server | Not on 3721C; embedded OPC supported on 4353/4354 variants |
| Max TCM per System | Up to 4 TCMs, occupying 2 logical slots each; different TCM types cannot share the same logical slot |
| Max Modbus Endpoints | 32 Modbus master/slave endpoints across all serial and network ports |
| Compatible Firmware | Tricon v10.0 and above |
| Mounting | Tricon chassis, slot-mounted; supports online replacement but not hot-standby |
| Weight | Approximately 3.18 kg (module); ~4.5 kg shipping |
| Safety Role | Communication and data exchange only; not part of the critical trip execution path |
Product Introduction
The Triconex 3721C is a Tricon Communication Module that bridges the Tricon TMR safety controller with external systems. It provides two copper Ethernet ports and four serial ports, enabling TriStation engineering access, Modbus integration, TCP/IP data exchange, SNTP time synchronization, and optional GPS time sync through serial port #1.
In a Tricon rack, the 3721C does not execute safety logic or drive field devices directly. Its role is communication continuity: connecting the SIS to the DCS, operator stations, Modbus instruments, printers, and time synchronization sources. For legacy Tricon v10-era systems, the 3721C remains a common spare. Before replacement, confirm the TCM slot assignment, the TriStation database, and whether the application uses serial Modbus, Ethernet Modbus, or GPS time sync, because those settings must be preserved.
Troubleshooting Quick Reference
- Fault: Ethernet link down on NET 1 or NET 2 | Cause: ~50% cable/switch port; ~25% IP mismatch; ~25% TCM port fault | Relevancy: High | Quick Check: Verify link LED and test with a known-good cable | Fix: Replace cable or switch port; confirm IP, subnet, and firewall settings.
- Fault: TriStation cannot connect to the Tricon controller | Cause: ~40% network path; ~30% TriStation protocol/port mismatch; ~20% TCM configuration; ~10% controller issue | Relevancy: High | Quick Check: Ping the TCM IP and verify TriStation communication settings | Fix: Correct IP/port; ensure TriStation protocol is enabled; verify TCM slot assignment.
- Fault: Modbus communication fails | Cause: ~50% wrong serial/Ethernet mapping; ~25% baud rate or parity mismatch; ~25% address/register error | Relevancy: High | Quick Check: Confirm whether Modbus runs over serial port #1/#4 or TCP/IP | Fix: Match baud rate, parity, slave address, and register map; verify Modbus endpoint count does not exceed 32.
- Fault: GPS time sync not working | Cause: ~60% GPS receiver or antenna issue; ~25% serial port #1 not configured for Trimble GPS; ~15% cabling | Relevancy: Medium | Quick Check: Confirm serial port #1 is assigned to Trimble GPS in TriStation | Fix: Repair GPS antenna/cable; reload correct serial port configuration.
- Fault: TCM replaced but communication still fails | Cause: ~50% wrong logical slot; ~30% TriStation database mismatch; ~20% backplane or firmware issue | Relevancy: High | Quick Check: Verify TCM slot assignment and firmware compatibility (v10.0+) | Fix: Correct slot configuration; reload TriStation database; do not mix different TCM types in the same logical slot.

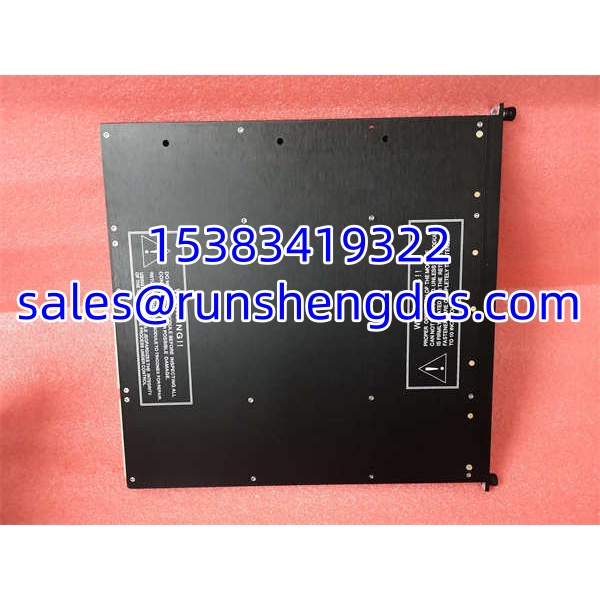

Triconex 3721C
Application Scenarios & Pain Points
- ESD/SIS systems requiring Modbus integration with DCS or third-party instruments. The 3721C provides serial and Ethernet Modbus paths without adding external gateways.
- Legacy Tricon racks where TriStation engineering access has been lost after a network migration. The TCM is often the first point of investigation.
- Plants using GPS time synchronization across multiple Tricon systems. Serial port #1 must be correctly assigned to Trimble GPS.
- Brownfield sparing situations where documentation is incomplete. The rack configuration database and TriStation project file are more reliable than module labels alone.
