Description
Key Technical Specifications
- Signal Type: 4-20 mA Analog Input
- Redundancy: Triple Modular Redundancy (TMR) with Voting
- Safety Integrity: SIL 3 Capable (IEC 61508)
- Channel Isolation: Channel-to-Channel & Channel-to-Backplane
- Diagnostics: Continuous Self-Test & Per-Channel Health Checks
- HART Support: Passthrough (Dependent on Card Rev & TA)
- Hot-Swap: Yes (Follow Site MOC & Safety Procedures)
- Conformal Coating: Enhanced Humidity/Contaminant Resistance
- Backplane: Deterministic Tricon Interface
- Termination: Requires Standard Tricon TA (e.g., 4200 Series)
Product Introduction
In safety-critical loops, a single noisy wire shouldn’t trip a multimillion-dollar compressor, but standard PLCs can’t tell the difference between a sensor drift and a real emergency. The 3664 solves this by running three independent measurement paths inside one card, voting on the result, and only passing through what the majority agrees is real. It’s the workhorse analog input for Tricon systems, sitting in the heart of ESD and BMS panels where “maybe” isn’t an acceptable answer.
I trust this module because it actually delivers the diagnostic coverage it promises; when a channel starts drifting, the 3664 flags it before it causes a nuisance trip, giving you time to plan a maintenance window instead of scrambling at 3 AM. The conformal coating is a lifesaver in coastal plants or humid compressor sheds, preventing the corrosion that kills lesser cards. Just be careful with HART passthrough; it works, but only if your termination assembly and firmware revision are perfectly aligned, otherwise you’re just getting a dumb 4-20 mA reading.
Quality SOP & Tech Pitfalls
The Lab Report:
We don’t sell “tested” stickers. Every 3664 gets a visual inspection under magnification to check for cold solder joints on the backplane connector and corrosion on the TA interface pins. We mount it in a live Tricon chassis, inject a precise 4-20 mA signal, and verify that all three internal channels read within tolerance and that the voting logic is active. We also check the diagnostic flags to ensure the card can self-report a channel failure. Finally, it’s sealed in anti-static shielding with a silica pack.
The Engineer’s Warning:
Here is the most common way to waste money: Do not ignore the Termination Assembly (TA). The 3664 is just the brain; the TA is the hands. I’ve seen guys swap the card, assume the wiring is fine, and get garbage data because the previous tech used a TA with a blown fuse or a corroded terminal block. Always photograph the TA wiring before you touch anything. Also, verify the HART revision. If you need HART passthrough and the card is an older revision, it won’t work, no matter what the sales guy says. Check the silkscreen.
Installation & Configuration Guide
- Pre-Installation Safety: ⚠️ BYPASS SAFETY LOGIC FIRST. This is a safety module. You must bypass the associated safety functions in the logic solver before pulling the card, or you risk a spurious trip. Take a photo of the existing wiring and DIP switch/jumper settings on the old 3664.
- Removal: Label every wire at the TA. Release the card retention screws. Pull the 3664 straight back; do not wiggle, or you’ll damage the backplane pins. Inspect the TA for burnt contacts or loose screws.
- Installation: MATCH ALL JUMPER SETTINGS. This prevents 90% of startup failures. Slide the new 3664 into the slot, ensuring it seats fully against the backplane. Tighten retention screws to 0.5 Nm. Re-terminate wires to the exact same TA terminals.
- Power-On & Testing: Restore power. Watch the module LEDs: Power should be solid green, and the “OK” LED should illuminate within 30 seconds. Check the diagnostic status in TriStation; all three channels should show “Good.” Force a known signal to verify the voting logic is passing the correct value.

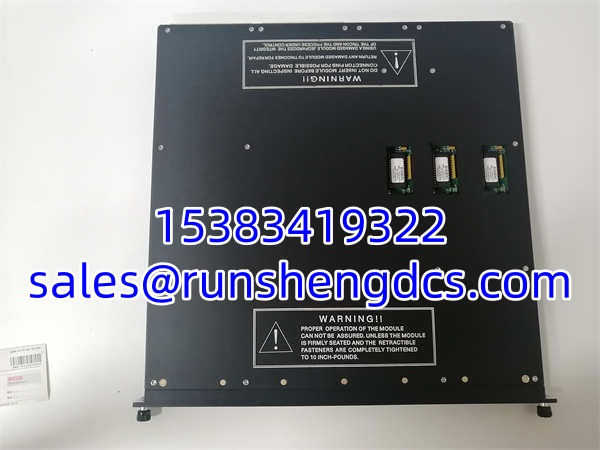

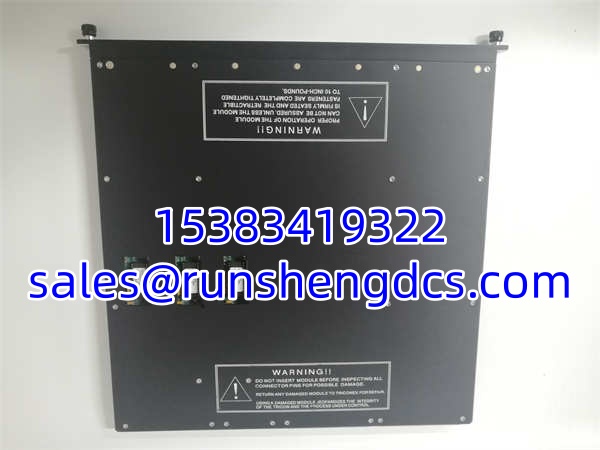

TRICONEX 3664
Compatible Replacement Models
| Model | Compatibility Tier | Notes |
|---|---|---|
| 3664 | ✅ Drop-in Replacement | Exact hardware/firmware match. Verify suffix/rev. |
| 3664A | ⚠️ Software Compatible | Same hardware, updated firmware. May require config reload. Allow 15 mins. |
| 3721 | ❌ Hardware Mod Required | Differential Analog Input. Different signal type. Not a direct swap. |
Frequently Asked Questions (FAQ)
Can I hot-swap this while the plant is running?
Yes, but only if you follow the site Management of Change (MOC) and safety procedures. The 3664 supports hot-swap, but you must bypass the safety logic first to prevent a spurious trip during the swap. Never just yank it out; treat it like a live safety device.
Why is my HART device not communicating?
Check the card revision and the Termination Assembly. The 3664 supports HART passthrough, but only on specific revisions and with compatible TAs. If you have an older card or a non-HART TA, you’re just getting a standard 4-20 mA signal. Verify the part numbers on both.
What does the “Channel Fail” LED mean?
It means the internal diagnostics detected a fault in that specific channel. The 3664 runs continuous self-tests; if one channel fails, the TMR voting isolates it, and the card keeps running on the other two. Don’t panic; plan a maintenance window to replace the card or check the field wiring.
Is this module compatible with my old Tricon chassis?
Yes, the 3664 fits all standard Tricon chassis (v4, v5, v6, v7, v8, v9, v10). Just verify the backplane type; some very old v4 chassis might have firmware limitations. Check your chassis manual.
Can I use this for 0-10V signals?
No. The 3664 is strictly a 4-20 mA analog input module. If you need voltage inputs, look at the 3721 or 3722 modules. Do not try to wire 10V into a 3664; you’ll fry the input circuitry.
Does this require special grounding?
Yes. The 3664 has channel-to-backplane isolation, but the chassis ground must be solid. I’ve seen noise issues caused by a loose chassis ground screw. Torque it to spec. If you’re in a high-noise environment, use shielded twisted-pair cable and ground the shield at the TA only.
