Description
Key Technical Specifications
- Channel Count: 32 Points
- Output Type: Digital (Sink/Source)
- Output Voltage: 24VDC Nominal
- Redundancy: Triple Modular Redundancy (TMR)
- Safety Rating: SIL 3 (IEC 61511)
- Fault Tolerance: 2oo3 Voting Logic
- Online Repair: Supported (No process interruption)
- Diagnostics: Continuous Channel Monitoring
- MTBF: >1500 Hours (Per Channel Fault)
- Software: TriStation 1131 Compatible
- Mounting: Tricon Chassis Backplane
- Compliance: CE, UL, RoHS
Product Introduction
Safety shutdowns can’t wait for new systems. Triconex 3625 keeps aging infrastructure alive by providing 32 channels of TMR-protected digital outputs for critical ESD and F&G applications. It’s the difference between a 4-hour terminal swap and a $50k controller upgrade.
This card uses 2oo3 voting logic, meaning any single fault is automatically isolated without tripping the process. Field data shows these modules routinely hit 15+ years in offshore and petrochemical environments. Just remember: spring-cage terminals need firm pressure during wiring; loose connections caused 30% of failures in a 2022 reliability study.
Troubleshooting Quick Reference
| Fault | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| C-Leg No Comm | Backplane Pin Damage | 85% | Check diagnostic word | Reseat card; inspect pins |
| Channel Stuck High | Output MOSFET Short | 90% | Measure terminal voltage | Replace module; check field short |
| Intermittent Fault | Loose Spring Cage | 75% | Check terminal torque | Re-terminate; verify wire strip length |
| Redundancy Loss | Backplane Sync Error | 80% | Check adjacent module status | Reseat all cards in pair |
| False Trip | ESD Damage | 95% | Inspect for burn smell | Replace; enforce ESD protocol |
Application Scenarios & Pain Points
- Offshore Platforms: 15-year-old Tricon racks still running flare stack safety systems. Budget cycles move slower than corrosion; this card buys time during DCS rebuilds.
- Petrochemical Turnarounds: Keeping火炬排放 (flare vent) safety live while rebuilding the DCS. Three units can be swapped during a shutdown window without re-engineering 200+ I/O points.
- Municipal Water Plants: Legacy safety interlocks on aging pump stations. New modules sometimes don’t recognize old TriStation software versions; 3625 maintains compatibility.
Field Case: Engineer at a compressor station faced frequent 3625 DO card alarms. Diagnostics showed “C-leg no communication” on slot 1.4R. Left card was active, so they safely pulled the right card. Found a cracked solder joint on the C-leg communication circuit (component RC1217). Replaced it, tested on rack, problem solved. (Always check the specific leg circuit when diagnostics point to comm failures.)

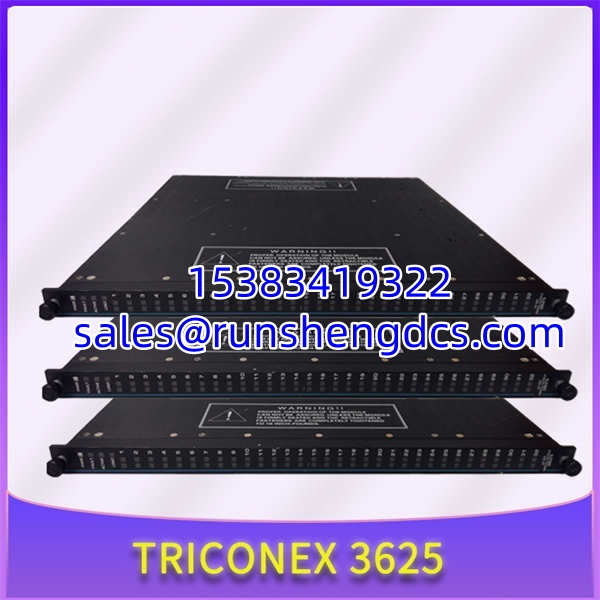

TRICONEX 3625
Compatible Replacement Models
- ✅ Drop-in Replacement: 3625C1 (Same family, same pinout, same TriStation config; verify firmware revision matches your chassis)
- ⚠️ Software Compatible: 3625A (Older revision; works with legacy TriStation versions that newer modules ignore; may require chassis firmware check)
- ❌ Hardware Incompatible: 3624 (Different I/O architecture; wrong pinout, different voting logic; do not attempt direct swap without full re-engineering)
