Description
Key Technical Specifications

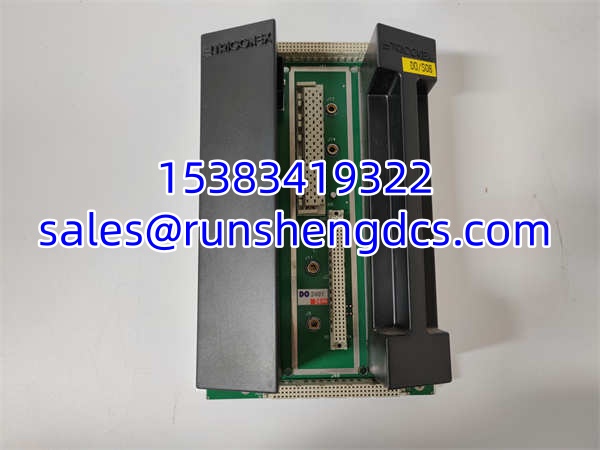

- Product Model: TRICONEX 2401 / DO2401
- Brand: Triconex
- Product Type: Digital output baseplate / DO base module
- System Family: Tricon / Triconex TMR safety control system
- Primary Function: Field wiring interface for digital output modules
- Associated Module: Commonly used with Tricon digital output modules such as DO3401
- Output Channels: Up to 32 independent digital output channels in typical DO2401 base configurations
- Terminal Style: Screw-clamp / screw-terminal field connections
- Isolation: Output channels isolated from the system bus to reduce noise and ground-loop issues
- Protection Features: Overcurrent, short-circuit, and ground-fault protection commonly referenced
- Installation Style: Modular Tricon I/O base; chassis and slot compatibility must be verified
- Hot-Swap Support: Tricon systems commonly support hot-swap replacement, but only if the chassis, firmware, and module health allow it
- Operating Temperature: Approximately 0°C to 60°C, with derating often required above 45°C
- Power: Typically supplied through the Tricon chassis backplane; commonly 24 VDC system domain, but verify the exact baseplate and module
Product Introduction
On a Tricon safety cabinet, the TRICONEX 2401 / DO2401 is not where the logic lives. The logic lives in the Tricon controllers and safety program. The 2401 is the hardware bridge that takes safe digital output commands and connects them to the real world — solenoid valves, ESD relays, trip circuits, shutdown actuators, and field interlocks.
That makes it a high-consequence spare. If the baseplate is damaged, corroded, miswired, or mismatched to the output module, you can lose safe shutdown capability even if the Tricon controller itself is healthy. Its value is not in being a fancy card; it is in being the correct, tested mechanical and electrical interface between a Tricon digital output module and the plant’s final safety actuators.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| Output does not energize field device | Baseplate wiring, fuse, output module, or logic command missing | Check field voltage, fuse, and output module status LEDs | Measure at the DO2401 terminal; verify command from Tricon logic |
| Intermittent trip / false output | Loose screw terminal, corroded contact, or EMI | Inspect terminals, torque connections, check cable shielding | Reseat and retorque wiring; verify isolation and grounding |
| Short-circuit or ground-fault alarm | Field wiring fault, damaged solenoid, or failed output channel | Disconnect field load and check resistance to ground | Isolate faulty field device; replace channel/module only after fault is cleared |
| Module fits but no communication | Wrong baseplate revision, slot, or chassis compatibility | Compare nameplate, revision, and chassis slot assignment | Match full Triconex part number and revision; reseat module |
| Baseplate powers up but outputs misbehave | DO module mismatch or configuration error | Confirm associated output module, e.g., DO3401 | Verify module/base pairing and safety program I/O mapping |
| Burnt smell or visible damage | Overcurrent, shorted field device, or backplane fault | Visual inspection; check upstream fuses and power supply | Do not reuse; replace only after root cause is cleared |

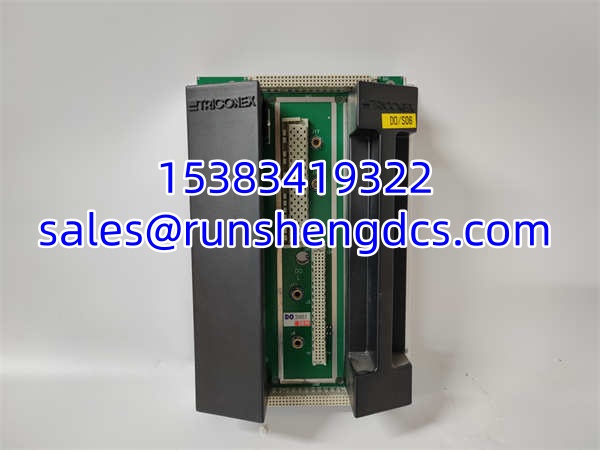

TRICONEX 2401
Application Scenarios & Pain Points
- Oil and gas ESD systems: The DO2401 may drive shutdown valves or trip relays. Pain point: wrong baseplate revision or field wiring mistake can prevent a safety trip.
- Petrochemical process safety: Used for solenoid-driven valve actuators and shutdown interlocks. Pain point: moisture, corrosion, and vibration can damage screw terminals over time.
- Power generation safety systems: May interface with turbine trip circuits or auxiliary relay logic. Pain point: ground faults in field wiring can falsely implicate the baseplate.
- Gas processing / pipeline shutdown: Used where reliable digital output is required for emergency isolation. Pain point: surplus baseplates may lack test records or revision traceability.
- Aging Tricon system maintenance: Older cabinets often depend on specific Triconex baseplates. Pain point: the part number 2401 is not enough; revision and module pairing matter.
