Description
Key Technical Specifications
- Model Number: SIS CM01-CM01-A-V001
- Manufacturer: SIS
- Series: SIS Safety Instrumented System
- Module Type: Power Supply Module
- System Role: Provides regulated DC power to SIS logic solvers and I/O
- Mounting Style: Standard DIN Rail / Backplane
- Operating Environment: Industrial Grade (Safety Rated)
- Status: Legacy / Active Spare

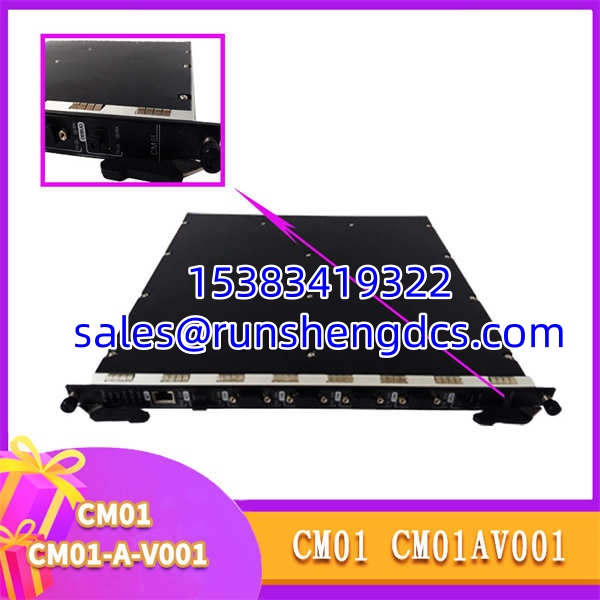

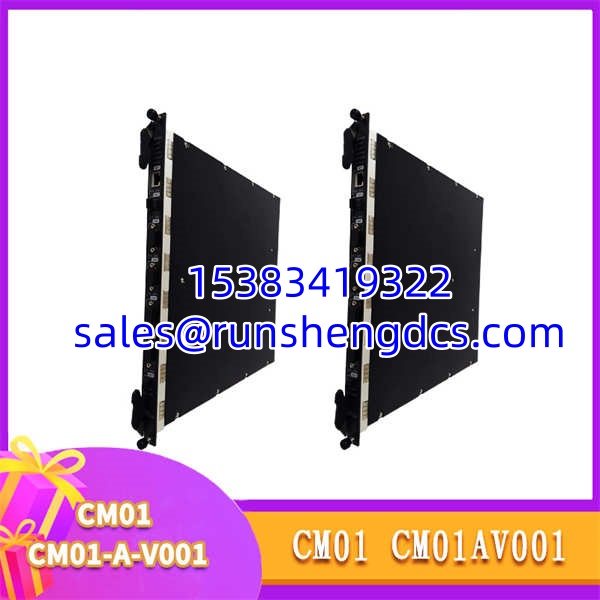

SIS CM01-CM01-A-V001
Functional Role & Application Analysis
The SIS CM01-CM01-A-V001 serves as the dedicated power supply module within the SIS safety instrumented system architecture. Its primary role is to deliver clean, regulated, and highly reliable DC power to the safety logic solvers and field I/O modules. It is primarily used to solve the critical challenge of maintaining power integrity in safety-critical loops, ensuring that emergency shutdown functions execute without power-related failures.
Typical use cases include:
- Emergency Shutdown Systems (ESD): Providing stable power to safety controllers in oil refineries and chemical plants to guarantee reliable trip execution.
- Safety System Retrofits: Replacing degraded or obsolete power modules in aging SIS installations to restore SIL-rated performance.
- High-Availability Safety Loops: Acting as a primary or redundant power source in redundant SIS architectures to maintain continuous safety coverage.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. We have established a rigorous, multi-stage testing process to ensure every SIS CM01-CM01-A-V001 we ship is 100% functional. Our testing mimics real-world SIS operational conditions.
- Visual & Component Inspection: All modules undergo professional cleaning and visual inspection under magnification to ensure no physical damage, corrosion, or compromised electrolytic capacitors exist on the power board.
- Live System Test: The module is installed in a live SIS test rack and run continuously to verify stable output voltage, ripple performance, and load regulation.
- Full-Function Diagnostics: We simulate full-load conditions to test the power module’s current delivery capability and verify that over-current and over-voltage protection circuits trigger correctly.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

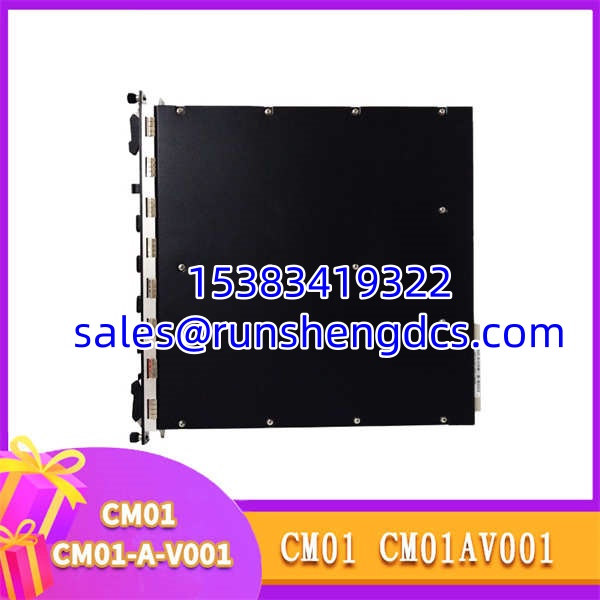

SIS CM01-CM01-A-V001
Compatibility & Migration Paths
To ensure this SIS CM01-CM01-A-V001 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk in safety system maintenance.
- Hardware Revisions: You must confirm the full model string (CM01-A-V001) matches your existing SIS backplane and power distribution requirements. Mismatched revisions can cause backplane faults.
- Required Components: This power module must be seated correctly in the SIS backplane and paired with the correct input power source to ensure stable DC bus voltage.
- Replacement & Alternatives: If your system requires a different voltage output or higher current capacity, verify if an upgraded power variant is supported by your current SIS logic solver before ordering.
- Get Expert Help: Unsure about your SIS system configuration? Contact our technical team today for a free compatibility check.
