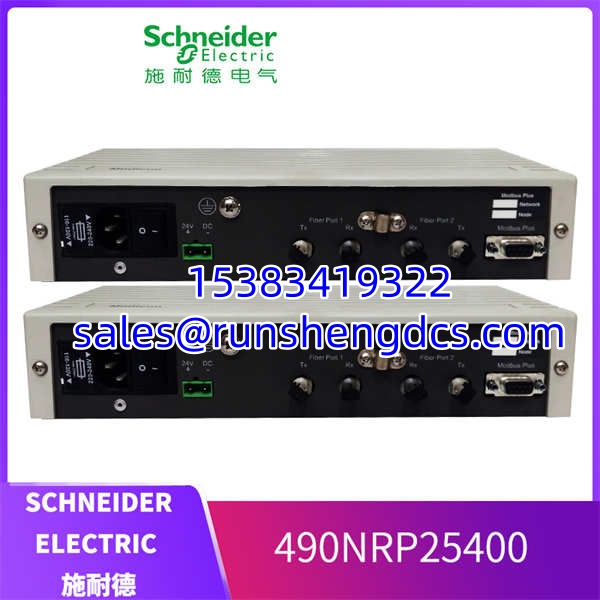

Description
Key Technical Specifications
- Model Number: 490NRP25400
- Manufacturer: Schneider Electric
- Series: Modicon Quantum / Modbus Plus
- Protocol: Modbus Plus (MB+)
- Communication Rate: 1 Mbps
- Data Interface: SER1 / SER2 Industrial Terminals
- Fiber Interface: ST (Standard), SC, FC Options
- Isolation Voltage: 5000V Surge / 1000V Continuous
- Power Supply: 9-36 VDC (Typical 24 VDC)
- Operating Temperature: -10°C to +70°C
Functional Role & Application Analysis
The 490NRP25400 is Schneider Electric’s dedicated fiber optic repeater for Modbus Plus networks. It bridges the gap between copper and fiber, allowing you to push MB+ communications beyond the strict 45-meter copper limit. You get galvanic isolation up to 5000V, which kills ground loops and protects your PLCs from lightning strikes or heavy VFD noise on the factory floor.
This module solves the reliability problem in electrically hostile environments. By converting the electrical signal to light, you eliminate EMI-induced packet loss and communication timeouts. The 490NRP25400 supports multi-mode fiber up to 2km and single-mode up to 20km, giving you the reach to connect remote substations or distributed pump stations back to the central Quantum PLC without signal degradation.
Typical use cases include:
- Water & Wastewater: Extending MB+ networks across large treatment plants where copper cabling is exposed to high-voltage interference.
- Mining & Metals: Connecting remote motor control centers (MCCs) in high-noise environments where fiber is the only viable medium.
- Legacy System Maintenance: Replacing failed repeaters in aging Modbus Plus networks to restore critical data flow without a full system migration.
Our Quality Standard & Testing Process
We know that a dead repeater isolates entire network segments and halts production. The 490NRP25400 is a legacy component; finding a reliable spare requires more than a visual check. We validate every unit against factory specifications before it ships.
- Visual & Component Inspection: We inspect the aluminum housing for damage, verify the DIN rail clips are intact, and check the ST/SC fiber ports for contamination or bent alignment sleeves.
- Live System Test: The module is powered up on a test bench and monitored for 4 hours. We verify the 24VDC power draw stays under 4W and check for thermal anomalies in the internal regulators.
- Full-Function Diagnostics: We connect the module to a live Modbus Plus network and verify 1Mbps data throughput. We test the SER1 and SER2 ports for proper signal termination and confirm the relay alarm outputs trigger correctly on link loss.
- Warranty Backing: Only modules that pass all functional and physical tests ship with our 12-month warranty. We stand behind every 490NRP25400 we sell.

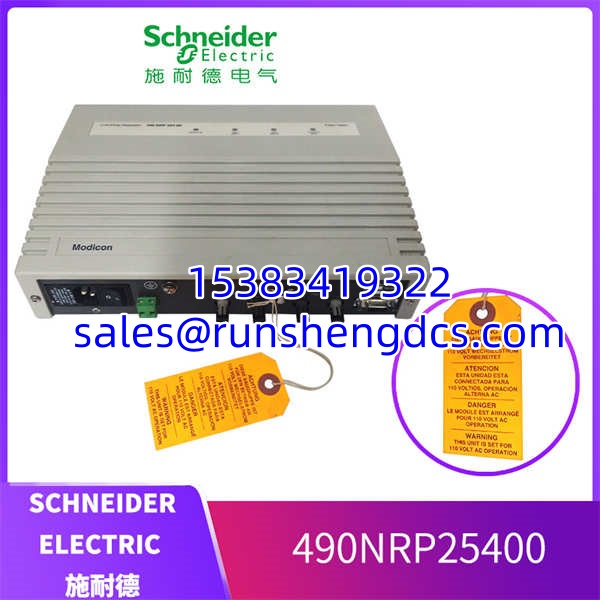

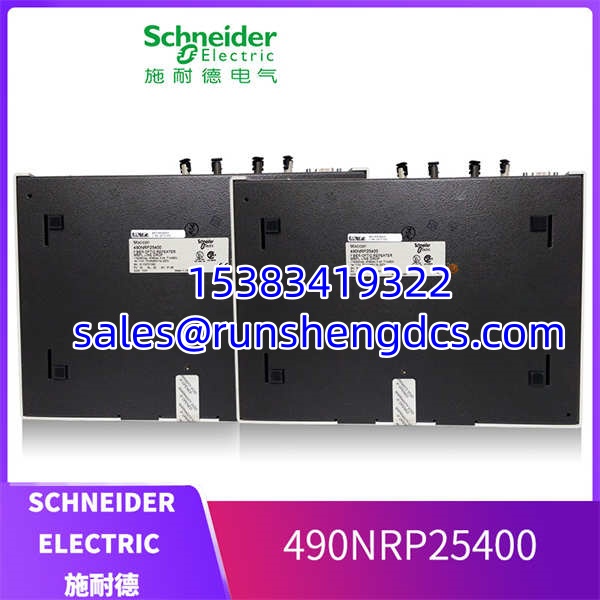

SCHNEIDER 490NRP25400
Compatibility & Migration Paths
To ensure this 490NRP25400 is 100% compatible with your network, you must check these key compatibility points. Modbus Plus is a deterministic network; wrong termination or mismatched fiber types will cause silent failures.
- Fiber Type & Connector: Confirm your existing fiber is multi-mode (850/1310nm) or single-mode (1310/1550nm). The 490NRP25400 defaults to ST connectors; if you have SC or FC, you need the correct variant or an adapter.
- Termination Resistors: This module does NOT have internal termination resistors. You must install external 100Ω terminators on the first and last devices on the MB+ copper segment. Missing terminators cause signal reflections and intermittent drops.
- Replacement & Alternatives: The 490NRP25400 is the standard MB+ fiber repeater. If you need higher density or ring topology support, consider the 490NRP25300 or third-party alternatives like the Comark Genius MB+ repeater, but verify pinout compatibility first.
- Get Expert Help: Unsure about your fiber type, termination, or network topology? Contact our technical team today for a free compatibility check. Send us a network diagram and we will validate the match.
