Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Product Model | 140DDI35300 |
| Manufacturer | Schneider Electric |
| Product Type | Low-voltage DC discrete input module |
| Compatible Platform | Modicon Quantum automation platform |
| Discrete Inputs | 32 |
| Channel Groups | 4 groups × 8 channels |
| Logic Type | Positive / sink |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 19.2–30 VDC |
| State 1 Guaranteed | 15–30 VDC |
| State 0 Guaranteed | -3 to 5 VDC |
| State 1 Current | ≥ 2 mA |
| State 0 Current | ≤ 0.5 mA |
| Input Impedance | 2,500 Ω |
| Leakage Current | 200 µA at Us = 5.5 V and Uin = 4 V |
| Absolute Maximum Input | 30 VDC continuous; 56 VDC during 1.3 ms decaying pulse |
| Response Time | ≤ 1 ms (0→1 and 1→0) |
| Addressing | 2 input words |
| Bus Current | 330 mA from backplane |
| Power Dissipation | 1.7 W + (0.36 × number of ON points) |
| Isolation | 1,780 Vrms group-to-bus; 500 Vrms group-to-group, 1 min |
| Protection | Resistor-limited input protection |
| Indicators | 32 green input status LEDs; 1 red external fault LED; 1 green Active LED |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 95% non-condensing |
| Altitude | ≤ 5,000 m |
| Certifications | UL 508, CSA C22.2 No. 142, FM Class I Div 2, ATEX Zone 2/22 |
| Weight | 0.3 kg |
Product Introduction
On a live Quantum rack, the 140DDI35300 is one of those modules you only notice when something goes wrong. A limit switch stops reporting, a proximity sensor flickers, or an entire group of inputs reads stuck-on. Most of the time the problem is in the field wiring or the sensor power supply — but when it is the module itself, you need a verified replacement fast.
The Schneider Electric 140DDI35300 is a 32-point 24 VDC discrete input module for the Modicon Quantum platform. It accepts sink-type inputs, meaning the field common is tied to the positive side of the 24 VDC supply and the module pulls each input low through its internal impedance. The 32 channels are organized into four isolated groups of eight, so a ground fault or transient on one group is less likely to take down the entire module. Each group is isolated from the backplane bus at 1,780 Vrms and from adjacent groups at 500 Vrms.
With a ≤1 ms response time and 2-word I/O addressing, the 140DDI35300 is well suited for general-purpose status monitoring: limit switches, pushbuttons, relay contacts, proximity sensors, and equipment run/fault signals. It does not source output power to field devices — that is the job of discrete output modules or external 24 VDC supplies.
Bottom line: if your Quantum rack still runs a 140DDI35300, keep a tested spare on the shelf. For new installations, Schneider Electric’s current platforms such as Modicon M580 or M340 should be considered instead.
QA/QC Transparency SOP
1. Intake & Nameplate Verification
Confirm the full model number 140DDI35300. Inspect the front connector, housing, and backplane pins for physical damage. Verify it is the 32-point 24 VDC input variant, not a 140DDO output module or a 140DDI85300 wide-range input module.
2. Backplane Communication Check
Install the module in a verified Modicon Quantum backplane with a compatible CPU. Power up the rack and confirm the green Active LED illuminates, indicating normal backplane communication.
3. Channel Functional Testing
Apply 24 VDC to individual input channels through current-limited test leads. Verify each channel’s green LED responds correctly and that the corresponding input bit updates in the PLC I/O table. Test all 32 points.
4. Group Isolation & Fault LED Check
Verify that the red external fault LED behaves according to specification. Check group-to-group and group-to-bus isolation with a hipot tester if required by site QC standards. Confirm no cross-talk between adjacent channels.
5. Final Documentation & Packaging
Record model number, firmware/revision if available, number of channels tested, bus current draw, and any fault codes observed. Package in ESD-safe materials with connector protection. Include a test report referencing the backplane and CPU used.
Field Engineer Gotchas
Sink Logic, Not Source
The 140DDI35300 is a sink input module. The field common must be connected to the positive side of the 24 VDC supply, and the field device switches the negative side. Wiring it as a source input will prevent channels from reading correctly.
Group Isolation Matters
The 32 inputs are divided into four isolated groups of eight. If one group shares a questionable ground or noisy sensor supply, it may not affect the other groups — but it can still cause intermittent faults within that group. Keep sensor commons separated by group when troubleshooting.
≤1 ms Response Is Fast, But Not Instant
A 1 ms response time is adequate for most status monitoring, but it is not intended for high-speed counting or encoder applications. For fast pulse inputs, use a dedicated high-speed counter module.
No Internal Channel Fuses
The module uses resistor-limited input protection but does not have per-channel fuses. A sustained overvoltage or shorted field wire can damage the input stage. Consider external fuse blocks or fused distribution terminals for harsh environments.
Bus Current Budget
The module draws 330 mA from the Quantum backplane. When populating a rack with multiple high-current I/O modules, verify that the power supply can support the total 5 VDC bus load.
Leakage Current Confusion
Some third-party listings incorrectly state 200 mA leakage current. The correct specification is 200 µA under defined test conditions. A true 200 mA leakage would indicate a failed input channel.
Legacy Platform
Modicon Quantum is a mature/legacy platform. The 140DDI35300 remains in use in many installed bases, but new projects should evaluate migration to Modicon M580 or M340 for long-term support.

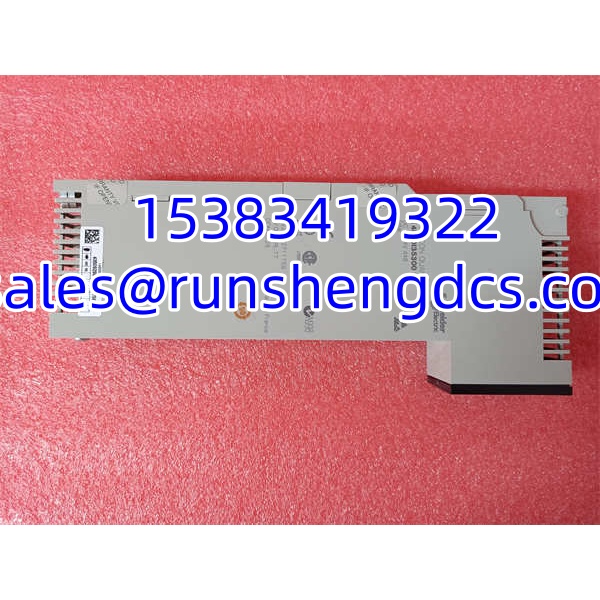

Schneider 140DDI35300
Application Scenarios
Process Plant Status Monitoring
Pump run signals, valve position switches, pressure switch contacts, and motor overload alarms are commonly wired into 140DDI35300 modules in water/wastewater, chemical, and power generation facilities.
Machine Safety and Interlock Inputs
Guard door switches, E-stop auxiliary contacts, and hydraulic pressure interlocks can be monitored through the module’s isolated input groups, improving fault segregation.
Conveyor and Material Handling Systems
Limit switches, photoeyes, and zero-speed sensors on conveyor lines map cleanly into the 32-point layout, with four independent groups allowing separate sensor power domains.
Case Study (Anonymized):
A chemical plant reported that eight inputs on a Quantum rack suddenly read ON even though no field devices were energized. The maintenance team replaced the 140DDI35300, but the fault returned within hours. Further investigation revealed that one group’s 24 VDC sensor supply had developed a ground reference shift due to a damaged cable tray. Because the 140DDI35300 uses sink logic with group isolation, only the affected group was compromised. Replacing the module alone would not have solved the problem — the root cause was field wiring. The lesson: on sink-type input modules, always check the sensor common and 24 VDC reference before condemning the module.
FAQ
Is the 140DDI35300 still in production?
The Modicon Quantum platform is a mature/legacy system. Availability varies by region and channel. For new installations, consider Modicon M580 or M340. Check current Schneider Electric product documentation for official lifecycle status.
What is the difference between 140DDI35300 and 140DDI85300?
The 140DDI35300 is rated for 24 VDC nominal (19.2–30 VDC). The 140DDI85300 supports a wider input range of 10–60 VDC. They are not direct substitutes without verifying field device voltage levels.
Can I use the 140DDI35300 with source-type sensors?
Not directly. The 140DDI35300 is a sink input module. Source-type sensors require a source-type input module or an intermediate relay/interface.
How many PLC address words does it occupy?
It requires 2 input words in the Quantum I/O map for its 32 channels.
Does it have per-channel fuses?
No. It uses resistor-limited input protection. External fusing should be applied at the field distribution level if required by site standards.
What does the red F LED mean?
The red external fault LED indicates a detected external fault condition. Consult the Modicon Quantum hardware reference manual for specific fault definitions and recovery procedures.
Can it be hot-swapped?
Modicon Quantum I/O modules are generally designed for hot-swap capability, but always follow site-specific lockout/tagout procedures and verify with the official Schneider Electric product manual before removing or inserting a live module.
