Description
Product Introduction

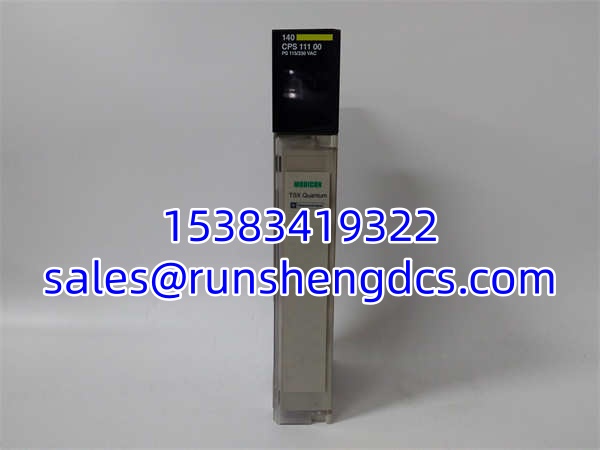

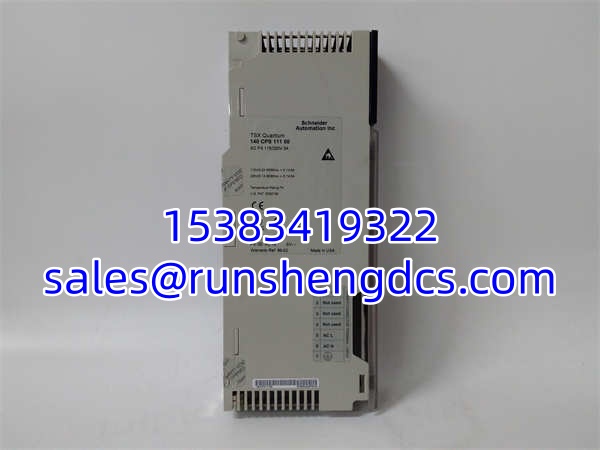

The Schneider 140CPS11100 is the standard standalone power supply for the Modicon Quantum PLC platform, converting 120-230 VAC mains into the 5.1V DC backplane power that your CPU and I/O cards depend on. Honestly, if you’re still running a Quantum system in 2026, you’re likely managing a legacy asset, and this specific PSU is the heartbeat of that rack.
What makes this module tricky right now is its lifecycle status. Schneider officially stopped production on June 4, 2026, and service ends December 31, 2026. This means you are now in the “last-time-buy” or surplus window. It’s a 3A standalone unit, so don’t confuse it with the 140CPS11420 (8A summable) or 140CPS12420 (8A redundant); if your rack is loaded with high-draw analog cards, this 3A module might be under-specced for your current load.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 120…230 V AC |
| Output Voltage | 5.1 V DC (Backplane) |
| Output Current | 3 A (Standalone) |
| Module Type | Standalone (Non-summable) |
| Protection | Overvoltage, Undervoltage, Overcurrent, Short Circuit |
| Fusing | 5A Slow-blow internal fuse |
| Status LED | 1x Green (PWR OK) |
| Alarm Contact | 1x NC (6A/220V) for fault signaling |
| Operating Temp | -15°C to +70°C |
| Dimensions | 16.3 x 4.5 x 31.2 cm |
| Weight | 0.65 kg |
| Lifecycle | End of Service: 2026-12-31 |
Compatibility & Replacement Matrix
- Schneider 140CPS11100 → Schneider 140CPS11100 : Direct Replacement — Identical part number, plug-and-play for standalone 3A applications.
- Schneider 140CPS11100 → Schneider 140CPS11420 : Upgrade / Needs Config — The 11420 is an 8A summable module. It fits physically but requires backplane configuration changes. Do not mix 11100 and 11420 in the same rack without verifying power distribution rules.
- Schneider 140CPS11100 → Schneider 140CPS12420 : Incompatible for Standalone — The 12420 is a redundant power supply. It requires a companion module and specific backplane slots. You cannot drop this into a slot designed for a standalone 11100 without a full power architecture redesign.
- Schneider 140CPS11100 → Schneider 140CPS21100 : Incompatible — The CPS21100 is a 24 VDC input power supply. The 140CPS11100 is VAC input. Plugging a 24VDC module into a 120VAC source will destroy the module instantly.
Quality Inspection & SOP Transparency
Given this is an End-of-Life part, we validate strictly:
- Incoming Inspection: We verify the part number and check the manufacturing date code. For EOL parts, we inspect the electrolytic capacitors for bulging or leakage, as shelf life is a real concern for units sitting in warehouses since 2025.
- Live Functional Test: We install the module into a Modicon Quantum 140XCP900 test chassis. We apply 120VAC and 230VAC to verify universal input compatibility. We measure the 5.1V backplane rail with a Fluke 179 to ensure it stays within ±2% tolerance under a 2A resistive load.
- Protection Verification: We simulate a short circuit on the 5V rail to verify the internal 5A slow-blow fuse opens correctly and the NC alarm contact triggers. This ensures the module won’t fry your CPU if a field wire shorts.
- Thermal Check: We run the module at full 3A load for 2 hours and monitor the internal temperature. If it exceeds 65°C, it fails QC. Old capacitors often have higher ESR, causing excess heat.
- Final QC & Packaging: After passing, we seal it in an anti-static bag with fresh desiccant. For EOL parts, we include a printed “Test Report” with the actual output voltage measured during QC.
Schneider 140CPS11100
Common Replacement Pitfalls
- ❗ The “Summable” Trap: This is the #1 mistake. The 140CPS11100 is Standalone. If your old card failed and you grab a 140CPS11420 (8A Summable) from the spare crib, it will not work in a standalone slot without backplane configuration changes. The Quantum backplane treats them differently. Always match the suffix: 11100 = Standalone, 11420 = Summable.
- ❗ Input Voltage Mismatch: Double-check your field wiring. The 140CPS11100 is 120-230 VAC. If your panel was previously upgraded to 24VDC distribution and someone installed a 140CPS21100, putting a 11100 back in will result in a loud pop and a dead PSU. Verify the input breaker label before energizing.
- ❗ Capacitor Aging: Since production stopped in June 2026, “New Old Stock” might have been sitting for years. If you receive a unit and it trips immediately on power-up, the input capacitors may have degraded. Always use a variac to ramp up voltage slowly for first power-on after long storage.
- ❗ Alarm Contact Wiring: The NC alarm contact is rated for 6A/220V. If you are using this to trigger a PLC input or a stack light, ensure you have a pull-up resistor or proper voltage source. A floating alarm contact will give you false “Power OK” readings.
FAQ
Q: Can I hot-swap this power supply while the Quantum rack is running?
A: No. The 140CPS11100 does not support hot-swapping. Removing it will cut 5V backplane power, causing an immediate CPU crash and potential data loss. Always schedule a controlled shutdown. If you need hot-swap capability, you must migrate to a redundant pair (140CPS12420) which requires a different backplane configuration.
Q: My rack has two power supplies. Is this the right one?
A: If you have two power supplies, you are likely running a Redundant configuration. The 140CPS11100 is Standalone. You probably need the 140CPS12420 (Redundant, 8A). Check the label on the working module. If it says “12420”, do not buy the 11100.
Q: What happens after December 31, 2026?
A: Schneider Electric will cease official support, repairs, and spare parts distribution. After this date, your only source is the surplus market (like us). We strongly recommend securing at least 2-3 spare units now or planning a migration to the Modicon M580 or EcoStruxure Control Expert platform before the end of 2026.
Q: Can I use this in a high-vibration environment?
A: The 140CPS11100 is rated for standard industrial vibration. If you are on a turbine skid or heavy press, look for the 140CPS11100C (Coated version). The conformal coating protects against both vibration-induced micro-cracks and corrosive atmospheres. Standard uncoated units may fail prematurely in high-G environments.
Q: How do I know if the power supply is failing?
A: Watch the green PWR OK LED. If it flickers or goes out, check the NC alarm contact. Also, listen for a high-pitched whine from the transformer, which indicates failing filter capacitors. If your Quantum CPU is randomly resetting or showing “Backplane Voltage Low” errors, test the 5V rail with a multimeter immediately. Don’t wait for the LED to die.
