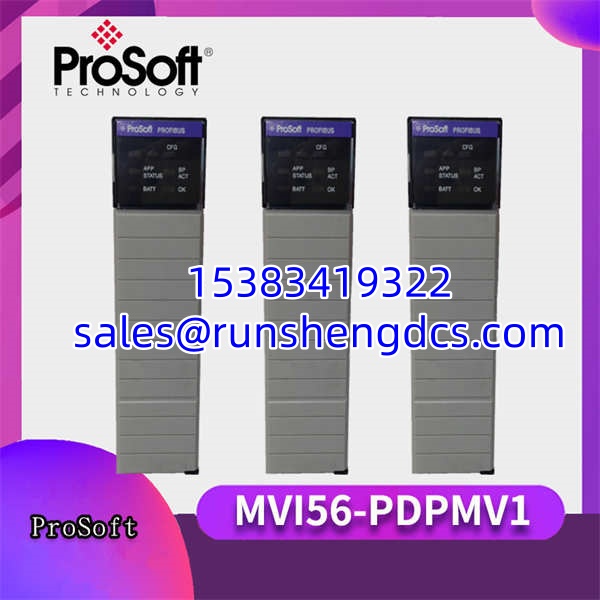

Description
Key Technical Specifications
- Model Number: MVI56-PDPMV1
- Manufacturer: ProSoft Technology
- Product Type: PROFIBUS DPV1 Master Communication Module
- Compatible Platform: Rockwell Automation ControlLogix
- Protocol Support: PROFIBUS DPV0/DPV1
- Max Baud Rate: 12 Mbps
- Max Slaves: 125 nodes
- Data Capacity: Up to 1536 bytes I/O per slave
- Physical Interface: DB-9F Optically Isolated RS-485
- Configuration Software: ProSoft Configuration Builder (PCB)
- Standards Compliance: IEC 61158
Functional Role & Application Analysis
The MVI56-PDPMV1 is a high-performance PROFIBUS DPV1 Master module designed specifically for Rockwell Automation ControlLogix platforms. It acts as a protocol gateway, allowing the ControlLogix processor to communicate with PROFIBUS DPV0/V1 slave devices such as drives, HMIs, and distributed I/O. This module solves the critical integration challenge of connecting legacy or third-party PROFIBUS field devices into modern ControlLogix architectures without requiring a separate standalone gateway. It appears to the processor as a standard I/O module, enabling asynchronous data exchange through the backplane.
Typical use cases for this module include:
- Drive Integration: Connecting Siemens, ABB, or Allen-Bradley PowerFlex drives with PROFIBUS interfaces directly to a ControlLogix controller for speed and torque control.
- Distributed I/O Expansion: Expanding remote I/O capacity using PROFIBUS-based ET200 or equivalent distributed I/O stations in large manufacturing facilities.
- Legacy System Migration: Integrating existing PROFIBUS field devices into new ControlLogix control systems during plant upgrades, preserving capital investment in field instrumentation.
- Multi-Vendor Environments: Bridging communication between Rockwell PLCs and third-party equipment that only supports PROFIBUS DP protocol.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable communication module is far greater than its purchase price. A failed PROFIBUS master can silence an entire network segment. We have established a rigorous, multi-stage testing process to ensure every MVI56-PDPMV1 we ship is 100% functional and ready for deployment.
Our professional testing process includes:
- Visual & Component Inspection: All units undergo professional cleaning and high-magnification visual inspection to ensure no physical damage, corrosion, or compromised connectors exist.
- Live System Test: The module is installed in a live ControlLogix test rack and run for a minimum of 24 hours to verify backplane communication, LED status indicators, and continuous operation.
- PROFIBUS Network Test: We connect actual PROFIBUS slave devices to verify master-slave handshake, data exchange integrity, baud rate stability, and DPV1 acyclic messaging capability.
- Configuration Validation: We verify that ProSoft Configuration Builder successfully detects the module, imports GSD files, and downloads configurations without errors.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

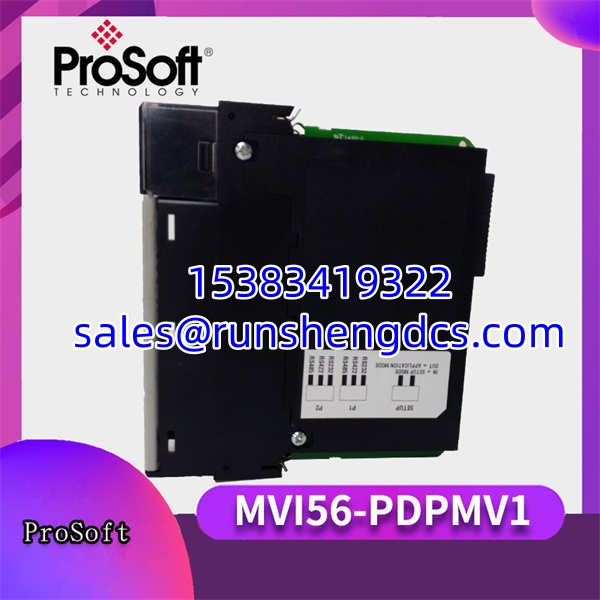

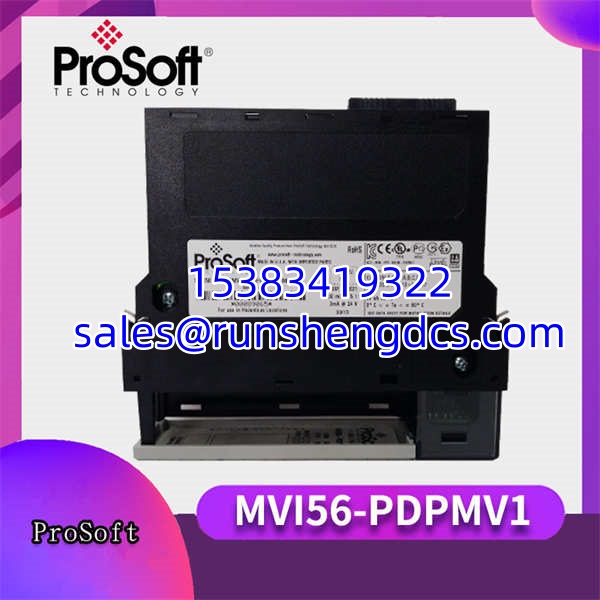

ProSoft-MVI56-PDPMV1
Compatibility & Migration Paths
To ensure this MVI56-PDPMV1 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to communication failures and extended commissioning time.
Key verification points:
- Firmware Version: You must confirm your module firmware is version 1.28.000 or later if you plan to use CIPconnect for Ethernet-based configuration. Earlier versions do not support this feature.
- ENBT Module Requirement: For CIPconnect functionality, the 1756-ENBT module must be in the same rack as the MVI56-PDPMV1. Cross-rack bridging is not supported by comDTM software.
- Replacement & Upgrade Path: ProSoft has released the ILX56-PBM as the next-generation replacement for the MVI56-PDPMV1. The ILX56-PBM is a drop-in replacement with enhanced performance. If you are planning a long-term strategy, consider migrating to ILX56-PBM using the PLX50 Configuration Utility conversion tool.
- Get Expert Help: Unsure about firmware compatibility or migration planning? Contact our technical team today for a free compatibility check before ordering.
