Description
Key Technical Specifications
- Channels: 32 differential analog input channels
- Input Range: ±10V (gain = 1) down to ±0.1V (gain = 100)
- Common-Mode Input Range: ±10V
- Overvoltage Protection: ±42V peak AC / 60V DC per channel
- Filtering: 3-pole lowpass filter, 200 Hz cutoff frequency (per channel)
- Cold Junction Compensation: Built-in CJC sensor for thermocouple measurements
- Thermocouple Types Supported: J, K, T, E, C (and others via software config)
- Input Coupling: DC
- Multiplexer: Internal — all 32 channels multiplexed to a single output driving one DAQ channel
- Compatible Chassis: SCXI-1000, SCXI-1001, SCXI-1000DC
- Compatible Terminal Blocks: SCXI-1300 (general-purpose), SCXI-1303 (isothermal/CJC)
- Power: Drawn from SCXI chassis backplane — no external supply needed
- Operating Temperature: 0°C to 50°C (non-condensing)
- Dimensions: 1.2 × 6.8 × 8.0 inches
- Weight: 24.6 oz
- Front Connector: 96-pin male DIN C
- Rear Connector: 50-pin male ribbon cable
- Driver Support: NI-DAQmx (up to 9.3.x), Traditional NI-DAQ (7.4.4), LabVIEW Real-Time (Phar Lap), Linux (8.0.1mx). Not supported on Mac OS X.
Product Introduction
Thirty-two thermocouple channels. One SCXI slot. That is the pitch of the SCXI-1102B — high-density temperature and low-level voltage acquisition packed into a single signal conditioning module that slides into any SCXI chassis. It does not digitize anything on its own. The module conditions your raw signals — amplifies mV-level thermocouple outputs, applies cold junction compensation, runs each channel through a 200 Hz lowpass filter to kill 50/60 Hz power-line noise — then multiplexes all 32 channels onto a single output line that feeds into a DAQ device (E/M/X Series or SCXI-1600 USB) for actual analog-to-digital conversion.
The reason this module still shows up in surplus listings years after its production run ended: 32 channels of thermocouple input in one slot is hard to beat for applications like environmental chamber mapping, battery pack thermal monitoring, and multi-point test stands. The built-in CJC eliminates the need for external cold junction hardware when paired with an isothermal terminal block like the SCXI-1303. The per-channel filtering keeps slow-changing temperature readings clean even in electrically noisy industrial environments. The catch — NI has moved on. The SCXI platform is legacy. Driver support tops out at NI-DAQmx 9.3.x, and there is no Mac support. If you are building a new system today, you need to weigh the channel density advantage against the reality that this is end-of-life hardware.
Troubleshooting Quick Reference
| Fault | Likely Cause | Probability | Quick Check | Fix |
|---|---|---|---|---|
| No signal from any channel | DAQ device not connected or not sampling | 85% | Verify DAQ card is installed and recognized in NI MAX; check that a task is running | Confirm DAQ device is selected in your measurement task; verify SCXI chassis is powered |
| Single channel reads open/erratic | Broken thermocouple wire or loose terminal block connection | 75% | Swap suspect channel with a known-good channel; check terminal block screw torque | Re-terminate wire; replace thermocouple; verify SCXI-1303 isothermal block is seated |
| All channels read same value | Multiplexer stuck on one channel | 60% | Cycle power to SCXI chassis; check if channel scanning advances in software | Power-cycle chassis; if stuck, module may need replacement |
| Noisy readings / 50/60 Hz hum | Filter not enabled or grounding issue | 70% | Verify lowpass filter is enabled in NI-DAQmx config; check shield grounding | Enable 200 Hz filter in software; ensure signal shields are grounded at one end only |
| CJC temperature reads wrong | Terminal block not isothermal type or poor thermal contact | 65% | Confirm SCXI-1303 (not SCXI-1300) is installed; check module-to-block mating | Install SCXI-1303 isothermal block; ensure module is fully seated in chassis |
| Overvoltage fault / inaccurate readings | Input voltage exceeds ±42V peak / 60V DC | 50% | Measure actual voltage at input terminals with multimeter | Add external protection circuitry; verify signal source is within spec |
| Module not recognized in NI MAX | Driver mismatch or chassis communication failure | 55% | Open NI MAX; check if SCXI chassis and module appear in device tree | Reinstall NI-DAQmx 9.3.x; verify chassis-to-DAQ cable is seated |

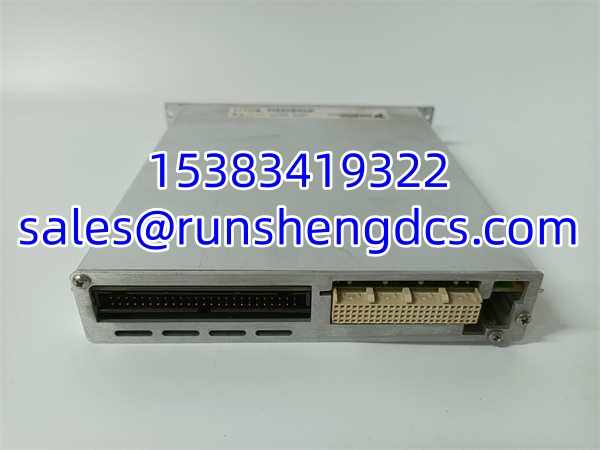

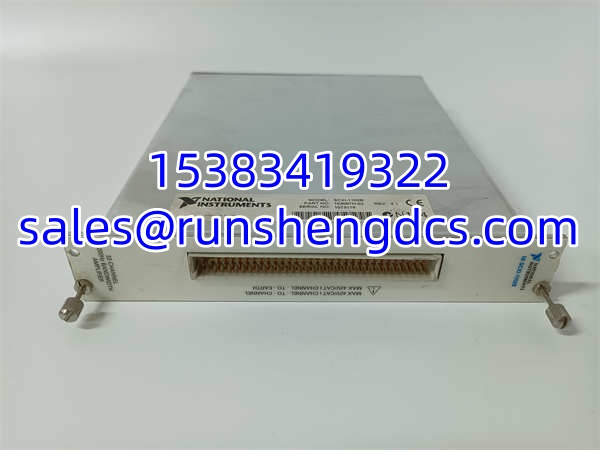

NI SCXI-1102B
Application Scenarios & Pain Points
Environmental chamber thermal profiling:
A test lab needs to map temperature uniformity across a 1.5 m³ environmental chamber using 28 thermocouples. The SCXI-1102B handles all 28 channels in a single slot, multiplexing them into a PXI DAQ card. The pain point — the 200 Hz filter and multiplexed architecture limit effective scan rate. At 32 channels, you are not getting fast transient response. This module is built for slow-moving thermal measurements, not dynamic events.
Battery pack thermal monitoring:
An EV battery test station monitors cell temperatures across a 96-cell pack using groups of SCXI-1102B modules. Each module covers 32 cells. The built-in CJC with SCXI-1303 terminal blocks keeps thermocouple accuracy tight without external compensation hardware. The catch — when a module fails, the entire 32-cell group goes blind until a replacement is sourced from surplus inventory.
Aerospace wind tunnel static pressure mapping:
A wind tunnel test facility uses SCXI-1102B modules to acquire static and total pressure transducer signals (mV-level outputs) alongside thermocouple arrays. The differential input configuration and ±0.1V range at gain 100 match the low-level pressure transducer outputs. The pain — NI’s SCXI platform is legacy, and finding matching chassis and terminal blocks from surplus channels is becoming harder every year.
Real-world case:
A test engineer at a semiconductor fab was running a thermal characterization system built around a PXI-6220 DAQ and three SCXI-1102B modules (96 thermocouple channels total). During a scheduled OS upgrade, the new Windows version was incompatible with NI-DAQmx 9.3.x — the last driver supporting the SCXI-1102B. The engineer faced a choice: roll back the OS or replace 96 channels of signal conditioning hardware. The rollback won. The lesson — when your DAQ hardware is this deep into legacy status, the software stack becomes a constraint, not a tool.
