Description
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Family: SCXI Series
- Board Type: Analog Input Signal Conditioning Module
- Channel Count: 32 multiplexed analog input channels
- Input Types: Thermocouple (all standard types), RTD, thermistor, low-level voltage (mV), 0–20 mA, 4–20 mA current loops
- Per-Channel Architecture: Instrumentation amplifier + 2 Hz lowpass filter
- Multiplexer Scan Rate: Up to 333 kS/s (aggregate, dependent on host DAQ device)
- Form Factor: Single-width SCXI module
- Chassis Compatibility: SCXI-1000, SCXI-1001, SCXI-1000DC
- Terminal Block Options: SCXI-1300 (screw terminal), SCXI-1303 (isothermal/CJC for thermocouples), SCXI-1308, SCXI-1310, BNC-2095
- Companion Modules: SCXI-1581 (32-channel current excitation source for RTD/thermistor measurements)
- DAQ Interface: Requires NI E/M/X Series DAQ card or SCXI-1600 USB interface for ADC and control
- Driver Software: NI-DAQmx
- Software Environments: LabVIEW, LabWindows/CVI, C, C++, .NET, Python
- Power: Supplied through SCXI chassis backplane — no external power supply needed
- Operating Temperature: 0°C to 50°C (non-condensing)
Product Introduction
Your test rack has 32 thermocouples wired to a SCXI chassis, but every reading is drifting by 3°C and you cannot figure out if it is the cold junction compensation or a bad terminal block. The SCXI-1102 is the module sitting behind those screw terminals — a 32-channel signal conditioning front end that amplifies, filters, and multiplexes low-level analog signals before handing them off to your DAQ card for digitization. It does not sample or digitize on its own. Every channel passes through an instrumentation amplifier and a 2 Hz lowpass filter, which kills 50/60 Hz power-line noise but also means you should not expect to capture anything faster than slow-changing temperature or pressure signals.
This module has been a workhorse in NI-based test systems for decades — environmental chambers, battery pack monitoring, multi-point temperature mapping on production test stands, and HVAC diagnostic rigs all rely on it. The 32-channel density in a single SCXI slot is hard to beat for high-channel-count temperature applications. The catch: NI has shifted focus to PXI and CompactDAQ platforms, so sourcing replacements means working through surplus channels. The SCXI-1102B is the updated variant with the same core architecture — verify which revision your existing system uses before ordering.
Troubleshooting Quick Reference
| Fault | Likely Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| All channels reading same value or stuck | Multiplexer stuck or DAQ card not scanning correctly | High (80%) | Open NI MAX; verify module appears in device tree; check if DAQ task is running | Restart DAQ task; reseat module in chassis; verify DAQ card is recognized |
| Thermocouple readings drifting | Missing or incorrect CJC (cold junction compensation) | High (75%) | Check if isothermal terminal block (SCXI-1303) is installed; verify CJC sensor is being read in software | Use SCXI-1303 terminal block; read cjtemp channel in NI-DAQmx; apply CJC in Convert Thermocouple VI |
| Noisy readings on specific channels | Open thermocouple wire, broken connection, or EMI | High (70%) | Measure voltage at terminal block with multimeter; check for loose screws | Reseat wiring; verify continuity from sensor to terminal block; check cable routing near VFDs |
| 4–20 mA signal reads zero | Missing 250Ω precision shunt resistor | Medium (65%) | Check if 250Ω resistor is installed across the differential input pair | Install 250Ω precision resistor across channel input pins to convert current to voltage |
| Module not detected by NI MAX | Chassis power fault or backplane communication failure | Medium (60%) | Check chassis power LED; verify DAQ device enumeration | Cycle chassis power; reseat module; test in known-good chassis slot |
| Slow scan rate / bottleneck | DAQ card scan rate too low for 32-channel multiplexing | Low (45%) | Check DAQ card specs and configured sample rate in task | Upgrade to faster DAQ card (e.g., M Series); reduce channel count per task |

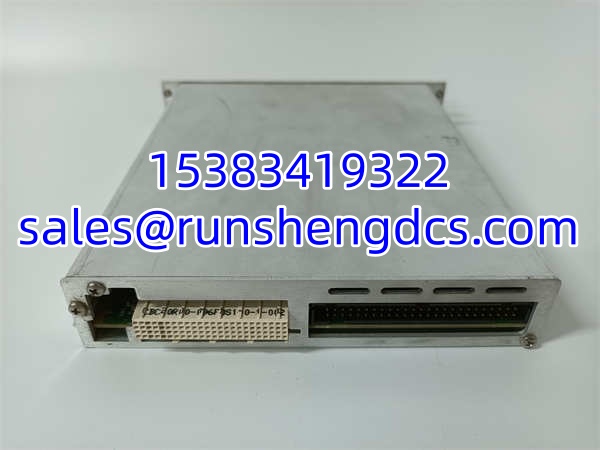

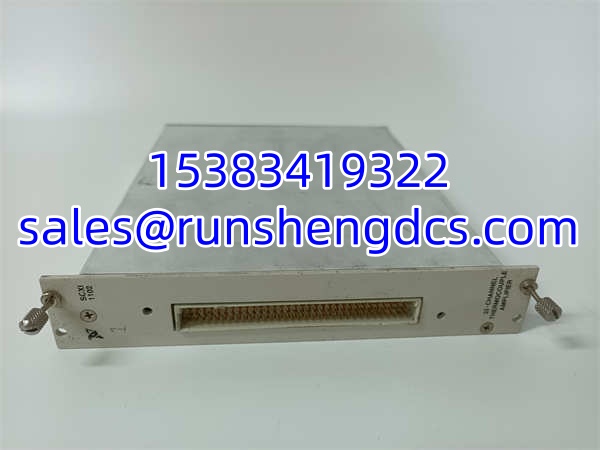

NI SCXI-1102
Application Scenarios & Pain Points
- Environmental chamber with 32-point temperature mapping: A battery test lab needs to monitor cell temperatures across a full pack during thermal cycling. The SCXI-1102 handles all 32 thermocouples in one slot — but the pain point is CJC accuracy. Without an isothermal terminal block (SCXI-1303), ambient temperature gradients across the terminal block introduce measurement errors of 1–2°C.
- HVAC system diagnostics reading multiple 4–20 mA pressure transmitters: An engineer connects differential pressure transmitters to the SCXI-1102 for building automation testing. The module accepts the current input, but you must add a 250Ω precision resistor across each channel to convert the current loop to a measurable voltage — a step that catches a lot of first-time users off guard.
- Legacy refinery data acquisition system: A process monitoring rack built 15 years ago around SCXI-1102 modules and an E Series DAQ card. The original DAQ card died. Finding a compatible replacement DAQ card that still works with the SCXI backplane and NI-DAQmx is the real headache — especially if the plant is running an old version of LabVIEW.
- R&D test stand measuring RTD temperature with SCXI-1581 excitation: The SCXI-1102 pairs with the SCXI-1581 current source module to provide 32-channel RTD measurement. The 1581 provides stable 100 µA excitation with ±0.05% accuracy. The pain point is wiring complexity — each RTD needs excitation lines from the 1581 and sense lines to the 1102, doubling the terminal block wiring effort.
