Description
Key Technical Specifications
- Part Number: SCXI-1001
- NI Material Number: 776561-01
- Slot Count: 12 standard SCXI module slots
- Power Input: 100–240VAC, 50/60Hz (voltage selection tumbler on rear panel)
- Internal Power Outputs: +5V DC (12A), ±15V DC (3A)
- Power Conversion Efficiency: >85%
- Bus Interface: SCXI bus (compatible with SCXI-1349 bus cable to DAQ device)
- Bus Speed: 1 Mbps
- Cooling: Forced air with built-in fan(s) and filter(s)
- Operating Temperature: 0°C to +55°C (per NI manual)
- Dimensions: 406mm × 254mm × 133mm (L × W × H)
- Weight: ~5.4 kg
- Protection: Overcurrent, overvoltage, and short-circuit protection; rear-panel fuse
- Chassis Addressing: DIP switches on front panel for multi-chassis configurations
- Compatible DAQ Devices: NI PCI/PXI/USB multifunction DAQ devices (via SCXI bus cable)
- Software: NI-DAQmx (version 19.0 or earlier — versions above 19.0 dropped SCXI support), NI MAX, LabVIEW, LabWindows/CVI
- Daisy-Chain Capability: Up to 8 SCXI chassis per single DAQ device
Product Introduction
You’ve got a test bench or a production monitoring system built around NI’s SCXI ecosystem — strain gauges, thermocouples, isolated analog inputs, relay outputs — all conditioned by SCXI modules sitting inside this chassis. The SCXI-1001 is the 12-slot workhorse of that family. It doesn’t acquire data itself. It powers the modules, routes signals through its internal analog buses and multiplexed timing circuits, and passes conditioned signals to a DAQ device (PCI, PXI, or USB) connected via the SCXI bus cable. Think of it as the backbone that holds the signal chain together.
This chassis showed up in bridge collapse testing (244-channel DAQ systems loaded with SCXI-1520 stress modules), industrial process monitoring, lab calibration rigs, and anywhere a dense bank of conditioned I/O was needed without going full PXI. NI discontinued the entire SCXI platform in 2018, which means every unit you find today is surplus or pulled from a decommissioned system. NI-DAQmx dropped SCXI support after version 19.0, so if your host PC has been updated to a newer driver, the chassis won’t even show up in NI MAX.
Troubleshooting Quick Reference
| Fault | Likely Cause | Probability | Quick Check | Fix |
|---|---|---|---|---|
| Chassis not recognized by NI MAX | NI-DAQmx version >19.0 installed (SCXI support removed) | ~70% | Check NI-DAQmx version in NI MAX | Downgrade to NI-DAQmx 19.0 or earlier |
| Power LED off | Power cord, fuse, or voltage tumbler misconfigured | ~55% | Check rear voltage tumbler matches line voltage; inspect fuse | Set correct voltage; replace fuse if blown |
| Modules not communicating | SCXI bus cable loose or DAQ device not recognized | ~50% | Verify SCXI-1349 cable is seated at both chassis and DAQ ends | Reseat cable; verify DAQ device passes self-test in NI MAX |
| Intermittent module failures | Backplane contact corrosion or module not fully seated | ~35% | Remove and reseat modules; inspect backplane contacts | Clean contacts; replace module if problem follows it |
| Fan noise or overheating | Fan failure or filter clogged with dust | ~30% | Check rear fan operation; inspect filter | Clean/replace filter; replace fan if seized |
| Multi-chassis address conflict | Two chassis set to same DIP switch address | ~25% | Check address DIP switches on front panel of each chassis | Set unique address per chassis |

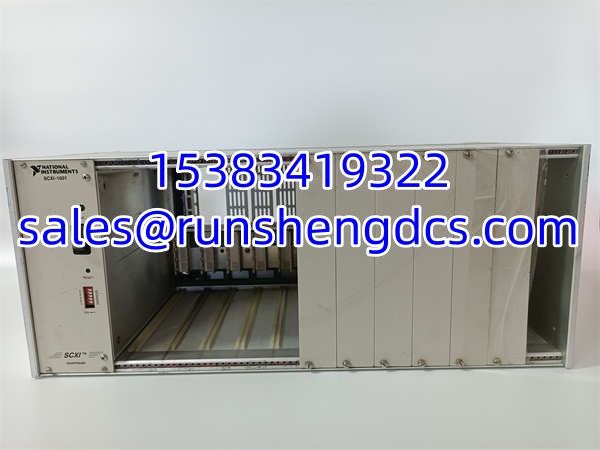

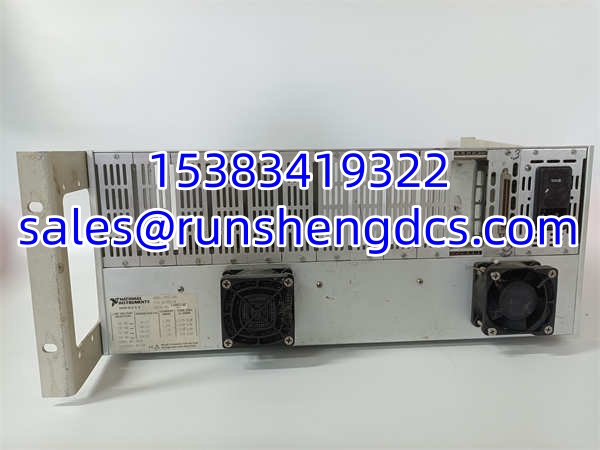

NI SCXI-1001
Application Scenarios & Pain Points
- Structural testing with dense strain measurement: A civil engineering lab loads a bridge model to failure using 24 SCXI-1520 stress modules across two SCXI-1001 chassis, all read through a single PCI-6250 DAQ board. Pain point — when the lab upgrades to Windows 10 and a newer NI-DAQmx, the chassis disappears from MAX. They’re stuck rolling back drivers or migrating the entire system.
- Industrial process monitoring with mixed I/O: A manufacturing line uses SCXI-1001 chassis to condition thermocouples, RTDs, and isolated analog inputs from a noisy environment. Pain point — the chassis is discontinued, and a failed power supply means sourcing from surplus with no warranty and unknown operating hours on the internal capacitors.
- Legacy system expansion: An existing SCXI system needs more channels. The team wants to daisy-chain a third SCXI-1001 onto the bus. Pain point — finding a surplus chassis with a matching revision and verifying that the DAQ device can handle the bus load across three chassis.
