Description
Key Technical Specifications
- Product Model: PXI-6608
- Manufacturer: National Instruments
- Part Number: 185745H-02
- Channel Count: 8 Counter/Timers, 32 Digital I/O (5V TTL/CMOS)
- Timebase: 10 MHz Oven-Controlled Crystal Oscillator (OCXO)
- Max Source Frequency: 80 MHz (125 MHz with prescaler)
- OCXO Stability: 75 ppb over 1 year
- GPS Synchronization: Supports DC-level IRIG-B; 300 ns accuracy to GPS
- Backplane Clocking: Can drive PXI Star/Clk10 only when installed in Slot 2
- Form Factor: Single-Slot PXI (100 x 160 mm)
- Operating Temp: 0°C to 55°C (5-min warmup recommended)
Product Introduction
You need sub-microsecond timing across a distributed PXI chassis, and standard crystals just won’t cut it. The NI PXI-6608 185745H-02 isn’t just another counter card; it’s a precision timing reference with a built-in 10 MHz OCXO that holds 75 ppb stability over a year. When you slot this into PXI Slot 2, it doesn’t just count pulses—it drives the entire backplane clock, synchronizing every other module to that same rock-solid timebase. For GPS-synchronized applications, it accepts IRIG-B DC-level signals and locks to within 300 ns, making it the backbone for distributed test systems that can’t afford drift.
Why does the 185745H-02 part number matter? That’s the specific build code for the 8-channel OCXO variant, not the base PXI-6602. You’re getting 32 digital I/O lines (8 dedicated, 24 shared with counters) and hardware-triggered simultaneous starts across all 8 channels. Bottom line—if your test requires deterministic timing, encoder position tracking, or GPS-correlated event counting, this board is the reference clock your entire PXI system is waiting for. Just don’t expect it to work in Slot 2 for backplane clocking if you’ve already filled that slot with something else.
Troubleshooting Quick Reference
- OCXO Not Locking / Frequency Drift: 90% chance the module hasn’t warmed up. The OCXO needs a full 5-minute thermal stabilization period after power-on before hitting 75 ppb spec. Check ambient temp; it’s rated 0-55°C.
- Backplane Clock Not Distributed: 95% probability the module isn’t in Slot 2. The PXI-6608 only drives the PXI Star/Clk10 line from Slot 2. Move it or reconfigure your chassis map.
- GPS Sync Fails / IRIG-B Not Recognized: 80% chance of signal level mismatch. Verify you’re sending DC-level IRIG-B, not modulated. Check wiring to the designated PFI/IRIG terminal. Measure signal amplitude at the connector.
- Counter Misses Pulses / Erratic Counts: 70% likelihood of input signal noise or impedance mismatch. The input impedance is 25kΩ-500kΩ. Add a 300mV Schmitt trigger hysteresis if signals are noisy. Verify max 80MHz source freq (125MHz with prescaler).
- Module Not Detected in MAX: 85% chance of backplane communication issue. Reseat the module. Check PXI chassis power rails. Verify no other module is conflicting in Slot 2.
Application Scenarios & Pain Points
- Distributed Sensor Arrays: Synchronizing data acquisition across multiple PXI chassis for seismic or acoustic monitoring. Pain point: Clock drift between chassis ruins correlation. The PXI-6608’s OCXO + GPS IRIG-B sync solves this with 300ns accuracy.
- High-Speed Encoder Positioning: Tracking rotary encoders in semiconductor wafer steppers or CNC machines. Pain point: Missing counts at high RPM causes positioning errors. The 80MHz source freq and hardware debouncing eliminate this.
- Pulse Sequence Generation: Generating precise trigger sequences for radar or lidar testing. Pain point: Software timing jitter destroys pulse fidelity. Hardware-triggered simultaneous starts across all 8 channels guarantee deterministic output.

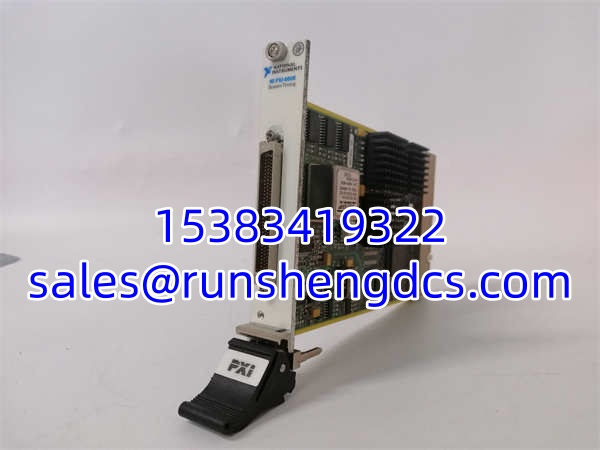

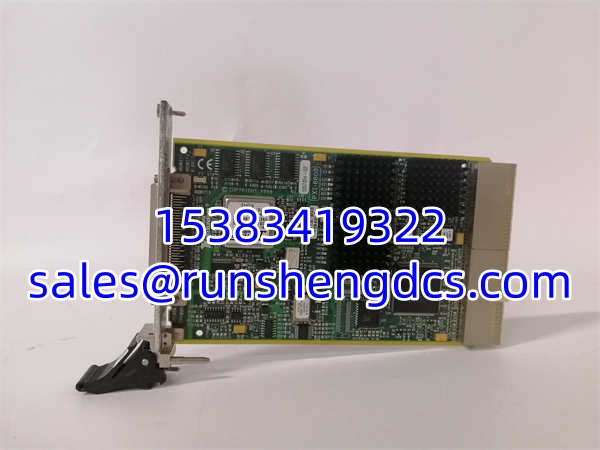

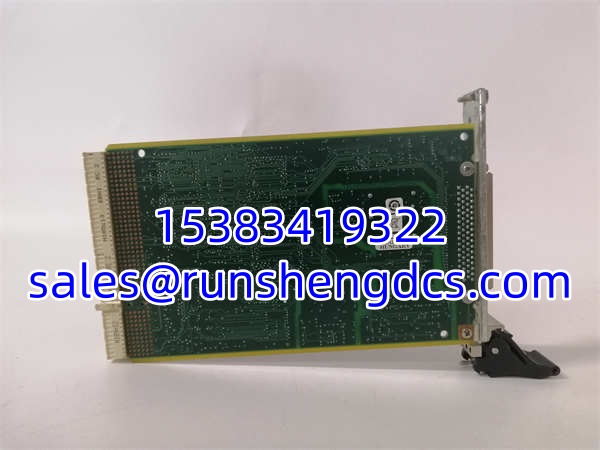

NI PXI-6608 185745H-02
Compatible Replacement Models
- ✅ Drop-in Replacement: PXI-6608 185745H-02. Exact same build. No config changes. Slide-in and go.
- ⚠️ Software Compatible: . Same model, different part number. Verify OCXO spec matches your application. May require recalibration or driver update. Expect 1-2 hours validation.
- ❌ Hardware Incompatible: PXI-6602. Same form factor, but no OCXO. Will not provide backplane clock stability or GPS sync. Do not substitute if timing precision is critical. PXIe-6612 is PXIe form factor—will not fit in legacy PXI chassis.
