Description
Key Technical Specifications
- Product Model: PXI-6527 185633D-01
- Manufacturer: National Instruments (NI)
- Product Category: PXI Digital I/O Module
- Channel Count: 48 Total (24 Input / 24 Output)
- Input Type: Optically Isolated (2V–28VDC Logic High)
- Output Type: Solid-State Relay (Bidirectional MOSFET)
- Max Switch Current: 120 mA per channel
- Max Input Voltage: 28 VDC
- Isolation Voltage: 60 VDC (Channel-to-Channel & Channel-to-PC)
- Connector Type: 100-Pin Keyed Female
- RTSI Support: None (Unstrobed I/O only)
- Operating Temp: 0°C to 50°C
Product Introduction
Legacy PXI systems often run on aging I/O cards that are impossible to source new. The NI PXI-6527 185633D-01 fills this gap as a 48-bit parallel digital interface designed for high-noise industrial environments. It splits its channels into 24 optically isolated inputs and 24 solid-state relay outputs, providing 60VDC isolation between channels and the PXI backplane. This isn’t a high-speed data acquisition card; it’s a rugged switch matrix for monitoring 24VDC logic and driving external relays or indicators.
Engineers value this module for its “jumperless” configuration and built-in digital filtering to kill contact bounce. However, be warned: the outputs are dry contacts (SSRs), not TTL voltage sources. You must provide external power to switch loads. With a 120mA current limit, it handles pilot duties well but will fail if you try to drive solenoids directly. Bottom line—this card is a workhorse for legacy ATE racks, but verify your external wiring before blaming the module for “no output.”
Troubleshooting Quick Reference
- Outputs Show 0V (No Load): 95% chance this is normal behavior. The PXI-6527 185633D-01 uses SSRs, not active drivers. Measure resistance to ground with power off, or wire an external 24V source through the relay to a load.
- Input Reads High When Open: 80% chance of floating wire or EMI. Check for 24V leakage or induced voltage. Enable the onboard digital filter via NI-DAQmx to debounce noisy mechanical switches.
- Module Not Recognized in MAX: 70% chance of backplane seating issue. Reseat the card firmly. Check the PXI chassis slot for bent pins. Verify the 3.3V/5V backplane rails are stable.
- Channel Stuck Low: 60% chance of blown SSR. Disconnect field wiring. Measure resistance across output terminals. A shorted SSR reads near 0Ω; an open SSR reads infinite. Replace if shorted.
Application Scenarios & Pain Points
- Legacy ATE Maintenance: Test stands built in the early 2000s rely on this exact card. Finding new stock is nearly impossible. Refurbished PXI-6527 185633D-01 units keep these critical test rigs running without a $50k system rewrite.
- Industrial Machine Control: Connecting PLC-level 24V signals to a PXI controller requires isolation. This module breaks ground loops and protects the expensive PXI chassis from field transients.
- Relay Rack Simulation: Simulating 24 discrete sensor states for HMI testing. The 24 inputs allow rapid verification of logic without physical sensors, while outputs drive status lamps.

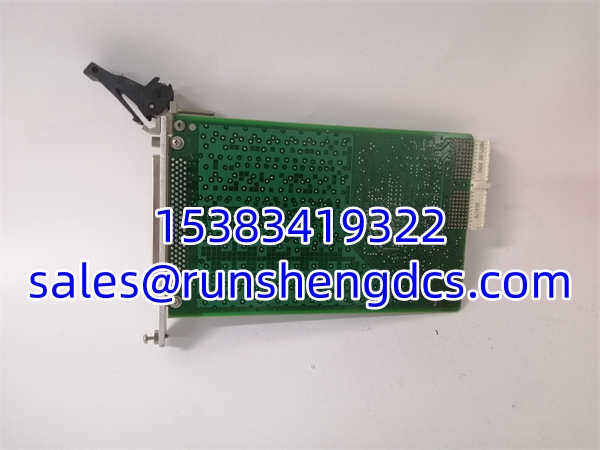

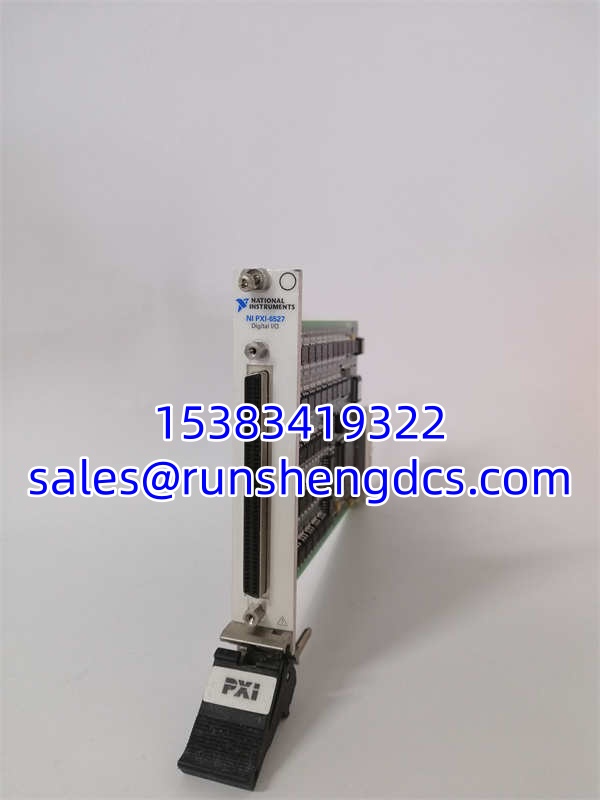

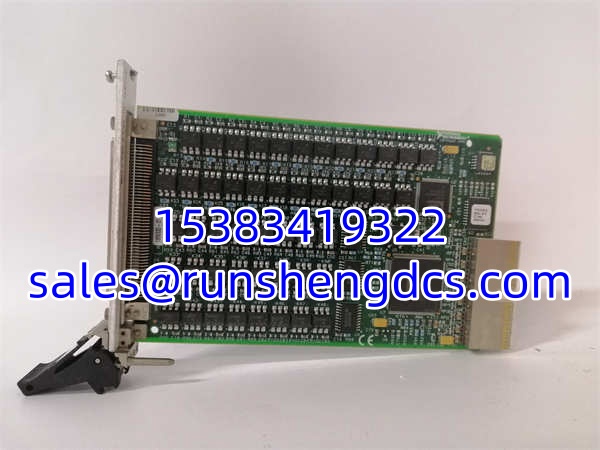

NI PXI-6527 185633D-01
Compatible Replacement Models
- ✅ Drop-in Replacement: PXI-6528 – Direct functional replacement. Adds RTSI support and higher channel count. Same form factor. Note: Requires driver update; pinout is compatible but verify cabling.
- ⚠️ Software Compatible: PCI-6527 – Identical silicon and specs, just PCI bus instead of PXI. Warning: Will NOT fit in a PXI chassis. Only for PCI desktop slots. Requires same NI-DAQmx drivers.
- ❌ Hardware Incompatible: PXI-6514 – Different channel count (32 vs 48) and no isolation on some lines. Do NOT use as a direct swap without rewriting test code and verifying voltage tolerances.
