Description
Key Technical Specifications
- Product Model: CFP-DO-400
- Manufacturer: National Instruments (NI)
- Product Type: Sourcing Digital Output Module
- Channel Count: 8 Channels
- Output Voltage: 10–30 VDC (Sourcing)
- Current per Channel: 2 A Continuous
- Total Module Current: 8 A Max (All channels combined)
- Update Rate: 20 Hz (Full channel update)
- Isolation: 2300 Vrms Channel-to-Backplane (Optical)
- Channel-to-Channel Isolation: None (Common Ground)
- Output Delay: 20 µs On / 50 µs Off
- Hot-Swap: Yes (HotPnP)
- Condition: Refurbished / Tested
Product Introduction
Your solenoid valve isn’t firing, and the multimeter shows 0V at the terminal. The NI CFP-DO-400 is the 8-channel sourcing output module sitting in that Compact FieldPoint slot, driving relays, pilot lights, and small solenoids with up to 2A per channel. It’s not a high-speed PWM card; it’s a rugged switching brick for industrial control.
This module uses optical isolation to protect the backplane from field spikes, but all 8 channels share a common ground plane. We test every NI CFP-DO-400 for short-circuit protection and LED indicator function, because a stuck-on output can overheat a solenoid coil in minutes. Bottom line—it’s legacy I/O, but when your LabVIEW logic needs to switch 24VDC loads reliably, this is the workhorse that’s been doing it for 20 years.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| No Output Voltage | Wrong Wiring (Sinking?) | 90% | Verify load connects to COM, not V+ | Rewire as sourcing circuit |
| LED On, No Voltage | Blown Fuse / Open Load | 85% | Measure voltage at terminal block | Check load continuity; replace module |
| Module Not Detected | Backplane Power / Seat | 80% | Reseat module; check cFP-BP status | Verify latch engagement; check PSU |
| Overcurrent Trip | Load > 2A or Short | 75% | Measure load current; check wiring | Reduce load; add external relay |
| Slow Response | Network Latency | 70% | Check Ethernet/Serial throughput | Optimize loop timing; reduce scan rate |
| All Channels Dead | Field Power Loss | 60% | Measure 10-30V at V+ terminal | Check external power supply/fuse |

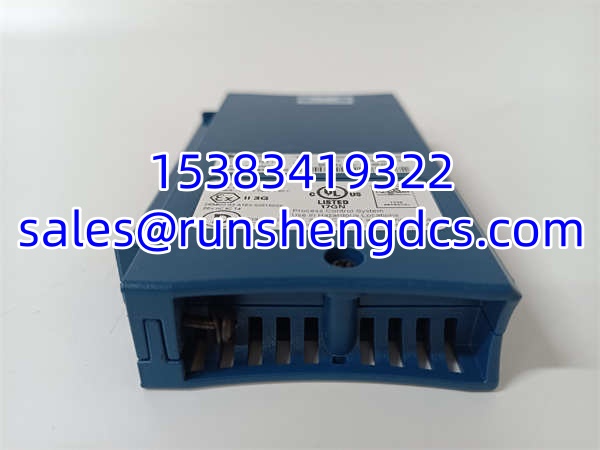

NI CFP-DO-400
Application Scenarios & Pain Points
- Packaging Line Control: Driving 24VDC solenoid valves for pneumatic cylinders. The CFP-DO-400’s 2A per channel handles standard valve coils directly without interposing relays.
- Test Stand Safety: Controlling emergency stop indicators and alarm stacks. Optical isolation prevents ground loops from corrupting sensitive analog measurements on the same backplane.
- Building Automation: Switching lighting contactors and HVAC relays. 8 channels per module reduces wiring density in crowded control panels.
