Description
Key Technical Specifications
- Product Type: Compact FieldPoint Connector Block
- System Compatibility: All Compact FieldPoint I/O Modules
- Terminal Count: 36 Standard Screw Terminals
- Wire Gauge Compatibility: 16 to 26 AWG copper wire
- Voltage Rating: Supports hazardous voltage operation (>30 Vrms / 60 VDC)
- Current Capacity: 4A Max (V and C terminals), 2A Max (all other terminals)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -55°C to +85°C
- Maximum Cable Diameter: 8 mm
- Mounting Method: Slides onto cFP-BP-x or cFP-180x Backplane
- Torque Specification: 1.1 N⋅m (10 lb⋅in) for captive screws
- Physical Weight: 7.1 oz (approx. 201 grams)
Product Introduction
Field wiring shouldn’t be an afterthought. The NI CFP-CB-1 is a 36-terminal integrated connector block designed to bridge the gap between your Compact FieldPoint I/O modules and actual field devices. It provides a secure, color-coded terminal interface for routing analog and digital signals to sensors, photoelectric switches, and solenoid valves. Honestly, if you are trying to wire a 4-20mA transmitter directly into a bare backplane, you are asking for a short circuit or a loose connection.
Why stick with the CFP-CB-1? Because it’s engineered specifically for the cFP ecosystem. It handles hazardous voltages safely and operates reliably from -40°C to +70°C, surviving harsh industrial cabinets without degrading. It also features tie-wrap anchors to prevent cable strain from ripping out your delicate signal wires. Bottom line — it’s the physical foundation of your data acquisition system, and using the correct wiring hub prevents costly troubleshooting down the road.
Troubleshooting Quick Reference
- Fault: Intermittent Signal Loss | Cause: Loose Wire / Stripped Thread | Relevancy: 85% | Quick Check: Gently tug on wire, verify screw torque | Fix: Re-terminate wire (strip exactly 6 mm), torque to 1.1 N⋅m
- Fault: Blown Fuse / Short Circuit | Cause: Hazardous Voltage Miswire | Relevancy: 80% | Quick Check: Inspect V and C terminals for solder bridges | Fix: Check fuse recommendations in I/O module manual
- Fault: Erratic Analog Readings | Cause: Ground Loop / Noise | Relevancy: 75% | Quick Check: Measure AC voltage between C terminal and chassis | Fix: Verify single-point grounding, check shield termination
- Fault: Module Won’t Seat Properly | Cause: Bent Backplane Pin | Relevancy: 70% | Quick Check: Visually inspect backplane socket | Fix: Do NOT force it; extract and inspect for mechanical damage
- Fault: Overheating at Power Terminals | Cause: Exceeding 4A Current Limit | Relevancy: 90% | Quick Check: Measure load current on V/C terminals | Fix: Redistribute load or upgrade power distribution

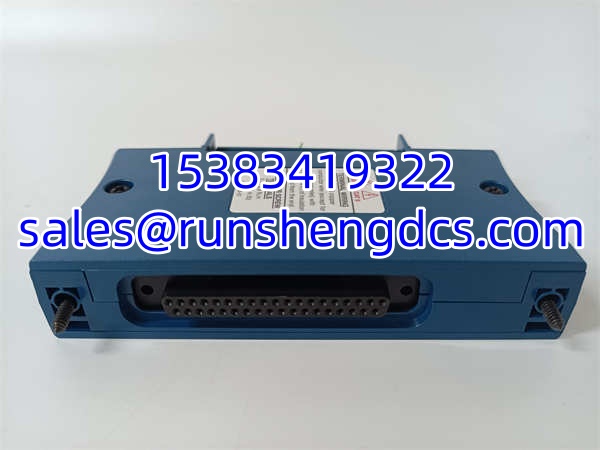

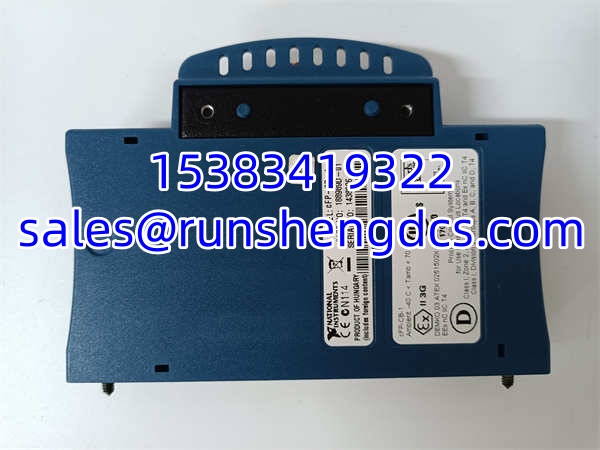

NI CFP-CB-1
Application Scenarios & Pain Points
- Industrial Automation Wiring: Connecting hundreds of discrete sensors to a cFP chassis. Standard terminal blocks take up too much DIN rail space. The CFP-CB-1 mounts directly to the backplane, eliminating cabinet clutter and reducing wiring errors.
- Test and Measurement Integration: Lab environments where signal routing changes frequently. The CFP-CB-1’s front-panel access and removable connectors allow technicians to swap out signal sources without rewiring the entire test rack.
- Harsh Environment Deployments: Outdoor or unheated cabinets where temperature swings destroy cheap connectors. The CFP-CB-1’s -40°C to +70°C rating and industrial-grade screw terminals maintain reliable contact where commercial blocks fail.
