Description
Key Technical Specifications
- Product Model: CFP-AI-100
- Manufacturer: National Instruments (NI)
- Product Type: Analog Input Module
- Channel Count: 8 Single-Ended
- ADC Resolution: 12-bit
- Update Rate: 360 Hz (Asynchronous)
- Input Ranges: ±1V, ±5V, ±15V, ±30V, 0-1V, 0-5V, 0-15V, 0-30V, ±20mA, 0-20mA, 4-20mA
- Isolation: 250 Vrms Channel-to-Ground (2300 Vrms dielectric test)
- Operating Temp: -40°C to +70°C
- Hot-Swap: Yes
- Condition: Refurbished / Tested
Product Introduction
Your FieldPoint rack is missing a channel, and the OEM is pushing you toward a $2,000 migration project. The NI CFP-AI-100 is the 8-channel analog input module sitting in that slot, grabbing 4-20mA and ±30V signals with a 360Hz update rate that’s fast enough for most process control loops. It’s not a high-speed DAQ card; it’s a workhorse I/O brick for distributed control.
This module delivers 12-bit resolution with 250Vrms channel-to-ground isolation, protecting your backplane from field transients and ground loops. We test every NI CFP-AI-100 on a live Compact FieldPoint backplane to verify ADC linearity and hot-swap logic, because a stuck bit means a valve that won’t close. Bottom line—it’s legacy silicon, but when your plant runs on LabVIEW and FieldPoint, this is the only thing keeping the data flowing.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| “Over Range” LED | Floating Input / Wrong Config | 90% | Check single-ended vs. differential config | Ground unused channels; verify range |
| No Data Update | Backplane Comm Fail | 85% | Reseat module; check cFP-BP status | Verify network module health |
| Erratic Readings | Ground Loop / Noise | 80% | Check shield grounding; verify isolation | Single-point ground; check wiring |
| Module Not Detected | Backplane Power / Fuse | 75% | Measure 24V at backplane test points | Check power supply; replace fuse |
| Hot-Swap Fail | Latch Not Engaged | 70% | Verify module is fully seated & locked | Push firmly until click; check latch |
| Drifting Values | Sensor / Wiring Issue | 60% | Disconnect field wire; check zero | Verify sensor; check for moisture |

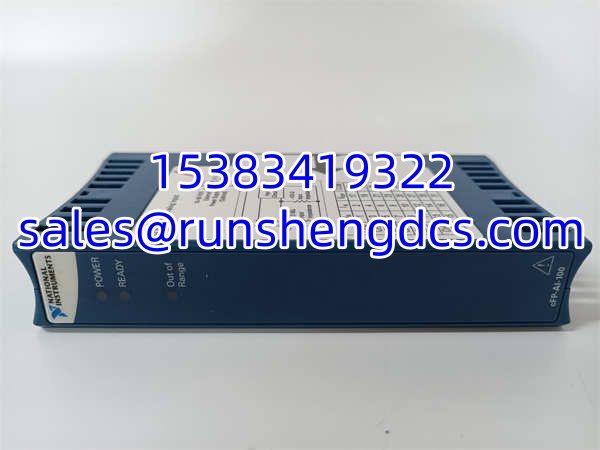

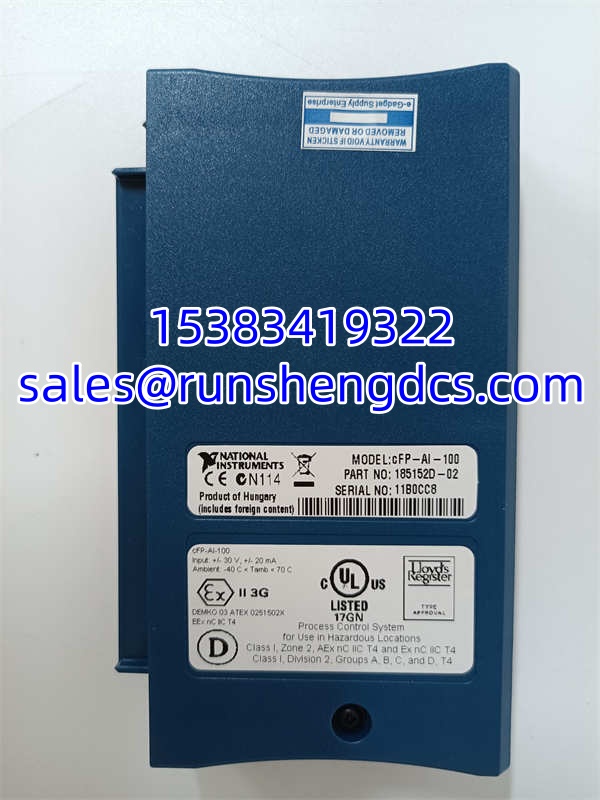

NI CFP-AI-100
Application Scenarios & Pain Points
- Water Treatment SCADA: Distributed I/O across remote pump stations. The CFP-AI-100’s 250Vrms isolation survives the ground potential differences between wet wells and control panels.
- Packaging Line Monitoring: Temperature and pressure monitoring on high-speed lines. 360Hz update rate provides sufficient resolution for thermal profiling without the cost of high-speed DAQ.
- Test & Measurement Rigs: Multi-point voltage monitoring in aging test stands. 8 channels per module reduces rack space by 75% compared to older single-channel FieldPoint cards.
