Description
Product Introduction
The 1C31129G03 is the muscle of the Ovation control strategy. It takes digital commands from the controller and converts them into precise 4-20 mA currents that move control valves and variable speed drives in the field.
Sixteen channels of isolated analog output provide the resolution needed for smooth process control. Its reputation rests on tight calibration stability over time—meaning less time tweaking zero and span adjustments during maintenance windows.
Key Technical Specifications
- Module Type: 4-20 mA Analog Output
- Number of Points: 16
- Signal Range: 4 to 20 mA (Standard)
- Isolation: Channel-to-Channel & Field-to-Logic
- Resolution: 12-bit (typical for series)
- Status Indication: LED per channel + Module OK
- Backplane Interface: Ovation Chassis
- Compliance: CE, UL Listed
- Calibration: Factory Calibrated (verify drift)
Compatibility & Replacement Matrix
- 1C31129G01 → 1C31129G03: Direct Replacement — G03 is the updated revision.
- 1C31129G02 → 1C31129G03: Direct Replacement — compatible in the same chassis.
- 1C31128G01 → 1C31129G03: Incompatible — different function (Analog Input vs Output).
- 1C31130G01 → 1C31129G03: Incompatible — different point count (8pt vs 16pt).
Emerson 1C31129G03
Quality Inspection & SOP Transparency
Incoming Inspection
We verify the authenticity of the Emerson label and serial number. The unit must be free of physical damage, corrosion, or any signs of being “repaired” in the field. We check the packing list against the serial to ensure traceability.
Live Functional Test
The module is installed in an Ovation rack powered by a 50 VDC backplane supply. Using a Fluke 754, we measure the output current on all 16 channels. We command 4 mA, 12 mA, and 20 mA setpoints, verifying accuracy within ±0.1 mA. The Module OK LED stays solid—no blinking indicates a hardware fault.
Electrical Parameter Test
We perform a continuity check on the field wiring terminals to ensure no internal shorts. Using a Megger, we verify the isolation resistance between the field side and the logic ground exceeds 100 MΩ.
Firmware Verification
The firmware version is read via the Ovation engineering tool. We ensure it matches the revision expected by the majority of field systems (typically R5.x or R6.x).
Final QC & Packaging
After a 24-hour powered burn-in at room temperature, the module is sealed in an anti-static bag. The “Tested & Passed” label is applied, followed by double-wall cardboard packaging for shipping.
Common Replacement Pitfalls
Firmware Revision Mismatch
This is the most common headache. If your Ovation cabinet is running an older software version (e.g., R4.5), it might not recognize the firmware on a newer 1C31129G03. The module will power up but show a “Fault” or “Unknown” status. Always check your cabinet’s software revision before buying. You may need to downgrade the module’s firmware, which requires a specific Emerson tool.
Wiring Terminal Block
The terminal block (TB1xxx series) is specific to this module type. Do not assume the old block slides out and into the new module. Check the pinout carefully. The 4-20 mA sourcing terminals must be connected correctly; reversing the polarity will prevent the valve from moving.
Field Power Source (Loop Power)
The 1C31129G03 is an active output module. It supplies the 4-20 mA current. Ensure the field device (the valve or drive) is wired as a 2-wire passive input. If you connect it to another active source, you’ll create a ground loop that corrupts the signal.
Burn-in and Calibration
Analog modules are sensitive to thermal shock. If the module was stored in a cold warehouse (like太原 in winter) and plugged into a hot rack, the internal resistors can drift temporarily. Let the unit acclimate to room temperature for 30 minutes before powering up.
ESD Precautions
The analog circuitry is sensitive. Always use an anti-static wrist strap. I’ve seen cases where a static zap didn’t kill the module instantly but caused the output to drift by 5% over a week. It’s a subtle failure that drives engineers crazy.
Get these five right and you’ll cut rework time by most of the afternoon.

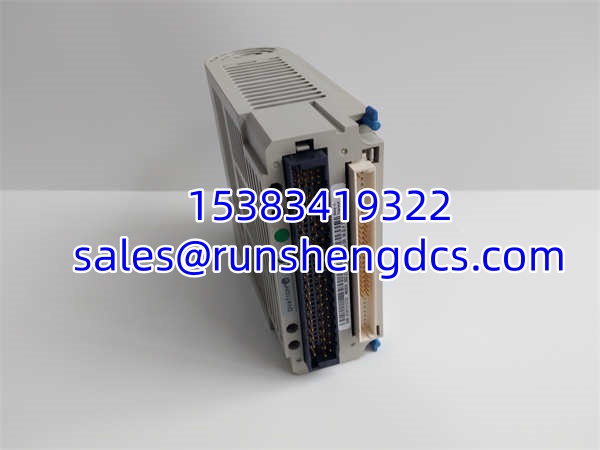

Emerson 1C31129G03
FAQ
Q: Can I just swap this in directly?
A: Yes, it is a direct replacement for the G01 and G02 versions. The form, fit, and function are identical. However, take a photo of the DIP switches (if any) and the wiring on the old terminal block before you remove it.
Q: My system runs Ovation R5.0—will this module work?
A: It should. The 1C31129G03 typically ships with firmware compatible with R5.0 and R6.0 systems. However, if your cabinet is on a very old revision (R4.x), you might need to update the cabinet or get the module downgraded. Verify your system version first.
Q: Is this brand new or pulled from a panel?
A: This is New Original (New Surplus) condition. It is excess stock from a decommissioned project or surplus inventory, never installed in an operating plant. It comes in the original packaging or with a verified anti-tamper seal.
Q: What if the output is inaccurate?
A: First, check the calibration. Analog modules can drift over years of operation. If it’s new and inaccurate, it’s likely a wiring issue. Ensure the field wiring is tight and the shield is grounded at the cabinet end only (not the field end) to prevent noise.
Q: Do you have the terminal block?
A: The standard terminal block for this module is the TB1016 (or similar). However, Emerson changed the terminal block style over the years. The screw size might differ between old and new blocks. Check the terminal screw size on your existing block before ordering a spare.
