Description
Key Technical Specifications

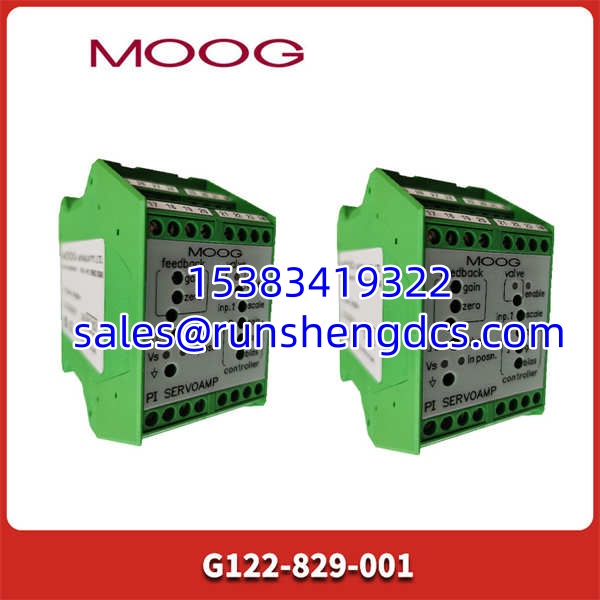

- Product Model: G122-829-001
- Manufacturer: MOOG
- Product Type: P-I Servo Amplifier
- Control Modes: Proportional (P), Integral (I), or P-I selectable via internal switches
- Input Signal: 4-20 mA or ±10V (Selectable)
- Output Current: Up to ±100 mA continuous
- Dither Frequency: Fixed at 200 Hz, adjustable level

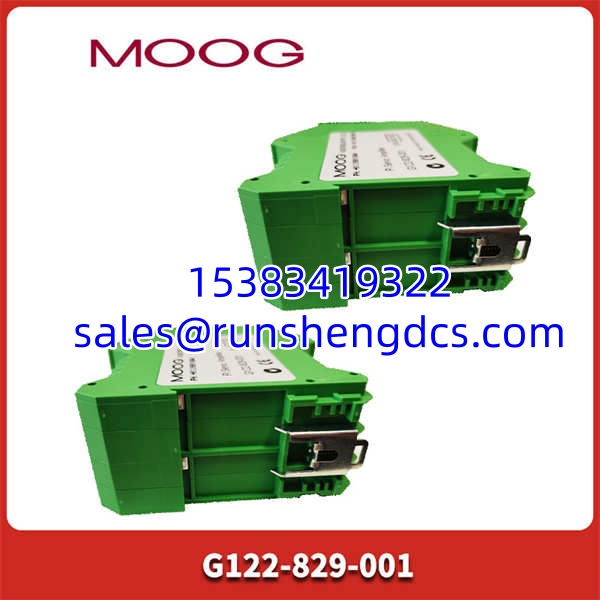

- Mounting: DIN Rail (TS-35)
- Cooling: Natural convection via top/bottom vents
- Supply Voltage: 24V DC (Typical, verify on label)
- Adjustments: Front panel potentiometers for Gain, Bias, Dither, and Feedback
Functional Positioning & Application Analysis
The MOOG G122-829-001 is a versatile, general-purpose servo amplifier designed to bridge the gap between low-level control signals and high-performance hydraulic or pneumatic servo valves. It primarily solves the challenge of stabilizing closed-loop systems by providing adjustable Proportional and Integral gain, ensuring zero steady-state error in position or pressure loops. The G122-829-001 features a built-in 200 Hz dither signal to reduce valve stiction, making it a critical component for achieving smooth, precise motion in demanding industrial environments.
- Hydraulic Press & Injection Molding: Provides the precise flow control needed for ram positioning and holding pressure, where the integral action of the G122-829-001 eliminates drift during long hold cycles.
- Turbine & Valve Actuation: Used in power generation for steam valve control, where the amplifier’s stability and dither function ensure accurate flow modulation and prevent hunting.
- Legacy System Maintenance: Essential for sustaining older MOOG servo systems; replacing a failed G122-829-001 restores original performance without requiring a full system retrofit.
Quality Standards & Testing Protocol
We understand that in hydraulic control, amplifier drift or noise can lead to catastrophic system instability. Therefore, every G122-829-001 undergoes a rigorous verification process to ensure it meets original performance standards:
- Visual & Physical Inspection: Comprehensive check for potentiometer wear, terminal integrity, and PCB condition to ensure mechanical reliability in vibration-prone environments.
- Functional Bench Test: Installed on a verified MOOG test rig with a standard servo valve to validate output current linearity, zero adjustment range, and enable logic.
- Signal Validation: Input signals (4-20mA / Voltage) are swept to verify gain accuracy and feedback scaling; Dither level is measured to ensure it falls within the ±10% adjustment range.
- Warranty Assurance: Only units passing all electrical and functional benchmarks are released, backed by a 12-month warranty against manufacturing defects.
MOOG G122-829-001
Compatibility & Upgrade Path
To ensure the integrates seamlessly into your existing control architecture, our technical advisors recommend verifying the following critical points:
- Wiring Configuration: Verify your input signal type (Current vs. Voltage) matches the internal jumper settings of the . Incorrect jumper settings can result in no output or saturated drive.
- Valve Compatibility: Confirm the valve coil resistance and current requirement are within the ’s ±100 mA output limit. For higher current valves, consider the G123 series.
- Feedback Loop: If using position feedback, ensure the feedback transducer signal (e.g., LVDT, potentiometer) is compatible with the amplifier’s feedback input stage.
- Expert Consultation: Unsure about gain settings or wiring topology? Contact us immediately for a free system architecture review and loop tuning support.
