Description
Key Technical Specifications
- Model Number: MS-NAE5510-1
- Manufacturer: Johnson Controls. Series: Metasys NAE55
- Supply Voltage: 24 VAC nominal
- Processor: 400 MHz Geode GX533
- Memory: 512 MB Flash, 256 MB SDRAM
- Network Interfaces: 1×10/100 Ethernet; 2×isolated RS-485; 2×RS-232; 2×USB
- Supported Protocols: BACnet MS/TP, N2 Bus, Modbus RTU via serial ports
- Operating Temperature: 0 °C to +50 °C
- Humidity Range: 10–90% RH non-condensing
- Enclosure: DIN rail mount, IP20
- Software Platform: Metasys system software; internal modem support limited by release level

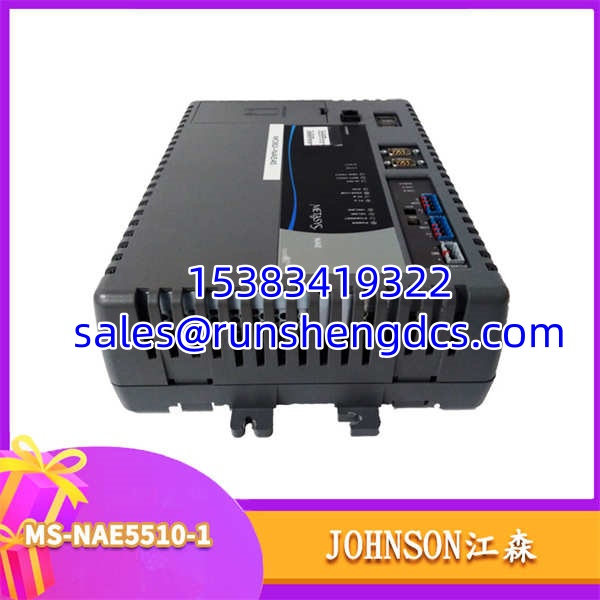

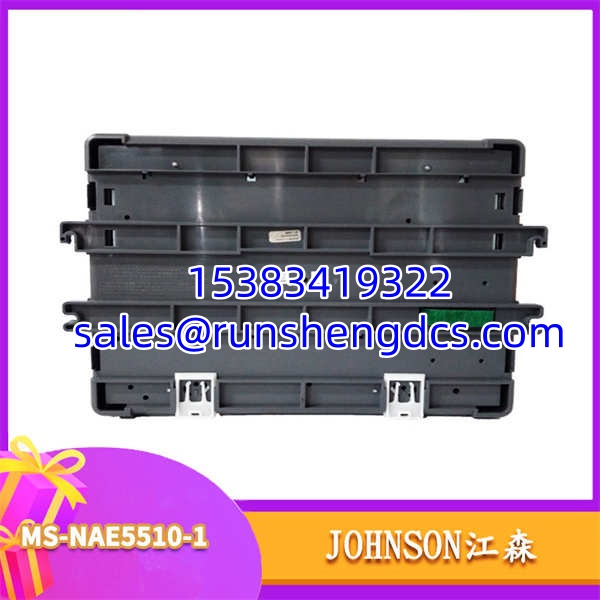

JOHNSON MS-NAE5510-1
Functional Role & Application Analysis
The MS-NAE5510-1 is not a field I/O controller. It is the supervisory engine that aggregates and coordinates Metasys building automation networks. It executes schedules, trend logging, alarm routing, and setpoint logic for connected HVAC, chiller, boiler, lighting and energy metering devices. It can operate as a BACnet Building Controller or report data to an ADS/ADX server.
A common site mistake is treating it as a generic replacement hardware swap. This unit’s operating system and database are tied to your Metasys release. Older firmware may not recognize newer database objects. Internal modem functionality also changes after Release 9.0; upgrading past that point disables the modem even if the hardware jack is present.
- Use Case 1: Legacy Metasys building BAS replacement for campus, commercial, hospital and data center HVAC systems
- Use Case 2: N2 bus and BACnet MS/TP trunk consolidation on retrofitted facilities
- Use Case 3: Spare inventory for sites still running pre-10.0 Metasys releases
- Use Case 4: Third-party integration via RS-232 Modbus RTU for power meters and ancillary equipment
- Use Case 5: Temporary standby unit while primary engine undergoes repair or OS upgrade
Our Quality Standard & Testing Process
We understand that the cost of an unreliable BAS engine is far greater than its purchase price. A failed NAE can stop trend collection, suppress alarms, or drop communication to critical air handling and chilled water equipment. We do not ship units based only on cosmetic condition.
- Visual & Component Inspection: Enclosure, terminal blocks, Ethernet and serial connectors, battery contacts and fans are checked for corrosion, bent pins or overheating signs.
- Power Cycle Test: Apply 24 VAC supply and verify stable boot sequence; capture boot LED behavior and confirm no inrush faults.
- Network Interface Validation: Ethernet link negotiation and RS-485 bus bias are verified under bench load.
- Storage & Clock Test: Confirm onboard clock battery holds time and flash storage accepts basic configuration writes.
- Firmware & Label Validation: Match hardware revision against customer’s installed release before shipment; note modem-capable vs non-modem configurations.
- Warranty Backing: Only engines passing all functional checks ship with our 12-month warranty. Test records are retained for traceability.

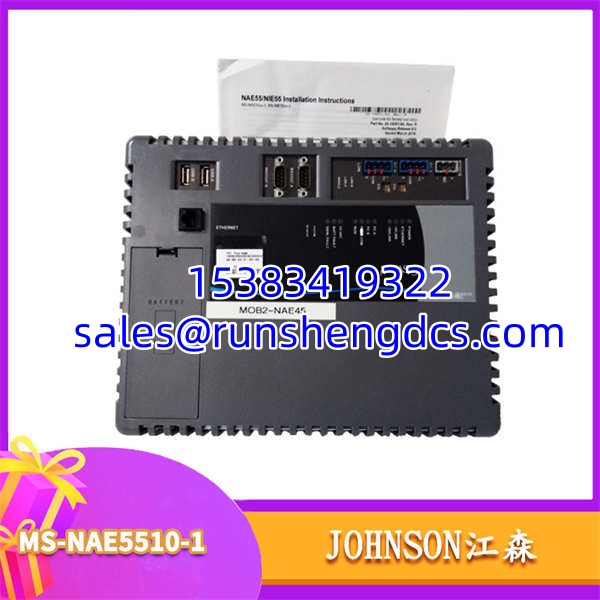

JOHNSON MS-NAE5510-1
Compatibility & Migration Paths
To avoid costly rework after installation, you must confirm three non-negotiable items. “It fits the DIN rail” does not mean it will run your existing database.
- Firmware/Hardware Revisions: MS-NAE5510-1 has fixed hardware capabilities. If your site runs Release 10.0 or newer, do not expect the internal modem to work even if the jack exists.
- Required Components: Check backup battery age before commissioning. The MS-BAT1010-0 battery has a typical 3–5 year service life; dead batteries cause configuration loss during power cycles.
- Network Wiring Risks: RS-485 trunk grounding, bus bias resistors and cable length directly affect N2 and BACnet MS/TP stability. Mismatched termination creates intermittent device drops.
- Replacement & Alternatives: Direct drop-in only for same-revision MS-NAE5510-1. For long-term roadmap, evaluate NAE85 or modern Metasys architecture instead of stocking legacy NAE55 hardware.
- Get Expert Help: Send photos of your current unit label, Metasys release number and trunk device list. Our team can flag OS incompatibilities before you remove the working engine.
