Description
Key Technical Specifications
- Channels: 32 analog inputs
- Resolution: 16-bit
- Input Range: ±10V DC
- Sampling Rate: 1000 samples per second per channel
- Redundancy: Triple modular redundant (TMR) architecture with three independent sampling paths per channel
- Voting Logic: 2oo3 (two-out-of-three) voting for fault-tolerant output determination
- Diagnostic Coverage: Monitors power rails, channel inputs, and internal circuitry for fault isolation
- Safety Rating: SIL 4 capable when deployed in a certified TMR system
- Communication: Interfaces with AADvance controller backplane
- Configuration Software: AADvance Engineering Workstation (AEW)

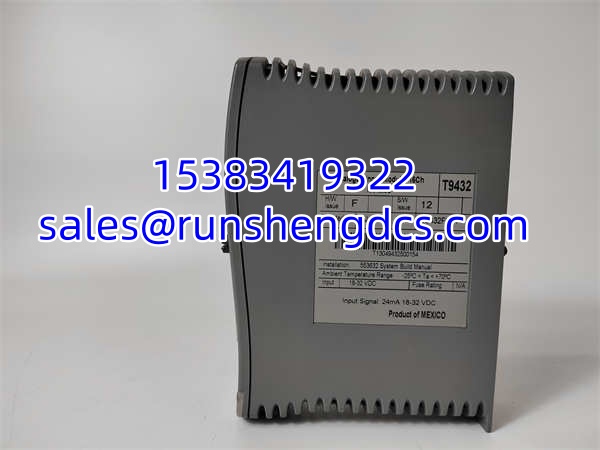

- Operating Temperature: -25°C to +70°C (ambient, per label data)
- Supply Voltage: 18–32V DC (backplane powered)
Product Introduction
You’re staring at a tripped safety interlock on a compressor train, and the HMI is flashing a bad AI channel. That’s where the T9432 earns its keep. This isn’t your garden-variety analog input card—it’s a 32-channel module built on ICS TRIPLEX’s triple modular redundant architecture, meaning each of its 32 inputs is independently sampled by three separate circuits. The voting logic compares all three readings and masks a faulty channel before it ever hits your control logic. It lives in the AADvance safety system rack, handling everything from pressure transmitters to thermocouple inputs on processes where a false trip costs six figures an hour.
Bottom line—you buy this module when single-channel redundancy isn’t enough. The 16-bit resolution gives you the granularity needed for precise process monitoring, and the 1000 samples/sec rate means it catches transient spikes that slower cards miss. The diagnostic coverage is wide enough that you’ll know which of the three sub-channels failed, not just that something failed. That cuts mean-time-to-repair significantly. For SIL 4 applications, this is the kind of hardware that keeps auditors happy and plants running.
Troubleshooting Quick Reference
| Fault | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Channel fault alarm | Single sub-channel failure in TMR trio | ~60% of T9432 faults | Check AEW diagnostics for which of the three sub-channels flagged | Module continues on 2oo3; schedule replacement at next turnaround |
| All 32 channels reading bad | Backplane power or communication loss | ~20% | Measure 18–32V DC at rack power terminals | Verify power supply module; check backplane connectors |
| Inaccurate readings on one channel | Sensor wiring or field device issue | ~15% | Disconnect field wiring; measure open-circuit voltage at terminal | Check sensor loop; verify shield grounding |
| Module not recognized by controller | Firmware mismatch or slot configuration error | ~5% | Verify slot assignment in AEW project; check firmware version | Recompile and download configuration; verify compatibility matrix |
ICS TRIPLEX T9432
Application Scenarios & Pain Points
- Refining — Hydrocracker unit: High-pressure, high-temperature environment where pressure transmitter drift can trigger an unnecessary emergency shutdown. The T9432’s 16-bit resolution and TMR voting prevent spurious trips from a single failing sensor.
- Power Generation — Turbine protection: Vibration and temperature monitoring on gas turbines demands sub-second response. The 1000 samples/sec rate catches transient anomalies that slower cards would average out.
- Chemical Processing — Reactor temperature control: Exothermic reactions where a missed high-temp reading is catastrophic. Triple sampling with 2oo3 voting ensures the safety system sees the real temperature even if one sub-channel drifts.
- Pipeline Compressor Stations: Remote, unmanned sites where a module failure means a truck roll. Wide diagnostic coverage lets operators identify the specific failed sub-channel before dispatching a technician.
