Description
Key Technical Specifications
- Product Model: T8110C B
- Manufacturer: ICS TRIPLEX
- Product Type: Trusted TMR Processor
- Processor Clock: 100 MHz
- Fault Tolerance: Hardware-Implemented 3-2-0 Voting
- Safety Integrity Level: SIL 3 (IEC 61508)
- Input Voltage: 20 to 32V DC
- Max Power Dissipation: 80 Watts
- SOE Buffer: 1000 Events (4000 in CI Buffer)
- Operating Temp: -25°C to +70°C
- Compatible Chassis: T8100 Controller Chassis
- Product Status: Legacy / Obsolete Spare Part
Product Introduction
Nuisance trips in a refinery ESD system can cost millions in lost production, yet a single-point failure in the safety controller is unacceptable. The ICS TRIPLEX T8110C B solves this with hardware-implemented 3-2-0 fault tolerance, allowing the system to continue operating safely on two processors if one fails, and only initiating a safe shutdown upon a second fault. It’s not just redundant; it’s fault-tolerant in a way that standard 2oo3 architectures simply aren’t.
This processor sits in the T8100 chassis and runs three independent processors in lockstep, voting on every logic scan. With a 100 MHz clock and an SOE buffer holding 1000 time-stamped events, it gives you the diagnostic depth to distinguish between a field wiring issue and a genuine safety threat. Bottom line — if your Trusted ICS system is still running, this module is the only processor that keeps it SIL3-compliant without forcing unnecessary trips.
QA/QC Transparency SOP
- Intake & Origin Verification: We verify the manufacturing date code and serial number of every ICS TRIPLEX T8110C B against Rockwell’s records to rule out counterfeit or recalled batches. Physical inspection checks for backplane pin damage, capacitor bulging, and thermal stress on the 80W power components.
- Live Functional Testing: Each module is installed in a live T8100 test chassis. We inject faults into individual processor channels and verify that the 3-2-0 voting logic correctly maintains output while flagging the degraded state in TriStation 1131.
- Electrical Parameter Tests: Using a calibrated Fluke 8846A, we verify the 20-32V DC input tolerance and measure actual power draw under full logic load. Any unit exceeding 80W dissipation or showing voltage rail ripple >50mV is rejected.
- Firmware/Config Verification: We read the firmware revision and hardware key code. For the ICS TRIPLEX T8110C B, we confirm the SOE buffer is functional and that the module matches the expected configuration for your specific Trusted ICS chassis.
- Final QC & Anti-Static Packaging: After passing all tests, the module is cleaned, labeled with a QC pass sticker and test date, and sealed in anti-static shielding with desiccant. No unit ships without a full test report.
Field Engineer Gotchas
- Firmware Rev Mismatch: Trusted ICS is brutal about firmware matching. Mixing a Rev C ICS TRIPLEX T8110C B with Rev A modules in the same TMR set will cause synchronization failures and force the system into a safe state. Solution: Always match the exact revision suffix. I’ve seen a plant spend 18 hours troubleshooting a “bad” module that was actually just a firmware mismatch.
- T8123 Adapter Compatibility: The ICS TRIPLEX T8110C B requires a T8123 Processor Interface Adapter. Using an old or mismatched adapter can cause backplane communication errors. Solution: Verify the T8123 revision matches your chassis and processor. Don’t assume all T8123s are identical.
- Power Supply Headroom: This module draws up to 80W. If your T8220 power supply is already loaded with I/O modules, adding a new processor can cause voltage sag and intermittent faults. Solution: Calculate your total backplane load before installation. I once watched a system fail 4 hours after a processor swap because the power supply was already at 90% capacity.
- Hot-Swap Procedure: The supports hot replacement, but only if you follow the exact procedure in TriStation 1131. Pulling it without initiating the online maintenance mode will corrupt the TMR voting logic. Solution: Always use the software-driven hot-swap sequence. Never just yank the card.

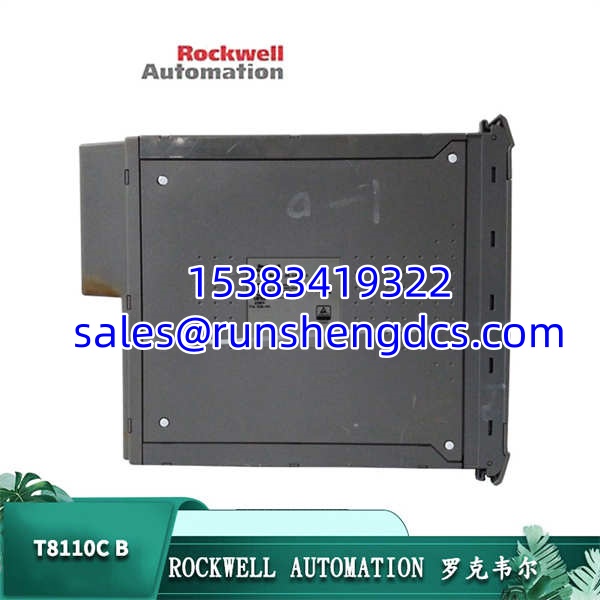

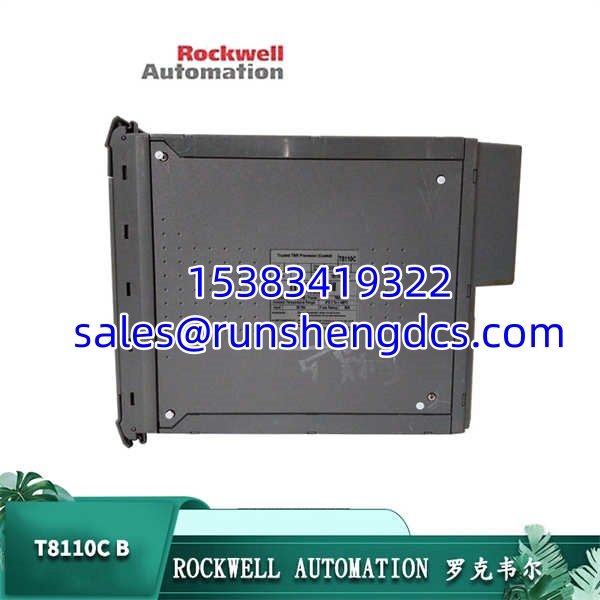

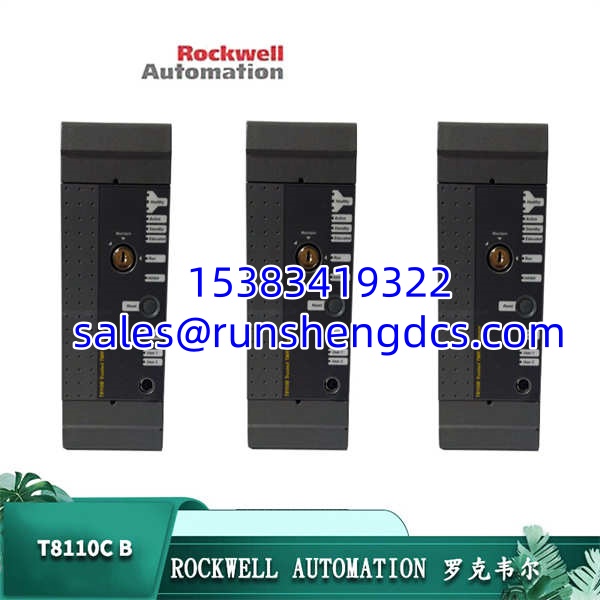

ICS TRIPLEX T8110C B
Application Scenarios
- Refinery ESD Systems: Reading 48VAC signals from HIPPS switches and safety valves, where a single false trip can halt a $2M/day crude unit.
- Offshore Fire & Gas: Processing inputs from hundreds of gas detectors, where nuisance alarms can trigger unnecessary evacuations and production shutdowns.
- Turbine Overspeed Protection: Monitoring shaft speed with microsecond response times, where a missed trip means catastrophic mechanical failure.
- Chemical Reactor Control: Executing complex safety interlocks for exothermic reactions, where deterministic scan times are non-negotiable.
Real-World Case: An LNG terminal’s F&G system was tripping every 72 hours. The ops team replaced gas detectors, then wiring, then the — twice. Finally, a senior tech pulled the SOE buffer and found a pattern: the trips always occurred during compressor startup. It wasn’t the processor; it was a ground loop from the compressor VFD coupling into the field wiring. We installed isolated signal conditioners and replaced the processor with a verified surplus unit. Trips stopped. Total downtime avoided: 3 days. Cost of the fix: 1,800. Cost of deferred production: 6M.
FAQ
A: No. It’s officially discontinued. What we sell is new surplus or professionally refurbished. Verify your exact revision — even one letter off can cause TMR voting failures.
Q: Can I hot-swap this processor in a live system?
A: Yes, but only if you use the TriStation 1131 online maintenance procedure. Pulling it without initiating the hot-swap sequence will corrupt the TMR logic and force a safe state. I’ve seen techs destroy a perfectly good redundant set by skipping this step.
A: The B is a later revision with updated firmware and potentially different hardware key codes. They are not always interchangeable. Always check your system’s compatibility matrix before ordering.
Q: How do I know if the SOE buffer is working?
A: In TriStation 1131, check the processor diagnostic page. The SOE status should show “ACTIVE.” If it shows “FULL” or “ERROR,” the buffer may be corrupted or the module is failing. Don’t ignore this — it’s your primary diagnostic tool.
A: 12 months functional warranty. If it fails under normal use, we replace it. We test every unit on a live T8100 chassis with fault injection before shipping — we’re not just reselling untested pulls.
A: Generally yes, but verify the firmware compatibility. Older T8123 Rev A adapters may require a specific firmware revision on the B to communicate properly. Always check the Trusted ICS compatibility matrix before ordering.
A: That’s fine. The T8111C is a later revision and is backward-compatible. They can coexist in the same chassis as long as each module is configured correctly. Just don’t mix revisions of the same model number in a TMR set.
