Description
Key Technical Specifications
| Parameter | Typical Value / Note |
|---|---|
| Brand | ICS Triplex (Rockwell Automation) |
| Model | 9802-1-9852-2 |
| Product Type | TMR controller / processor module |
| Architecture | Triple Modular Redundant (TMR), 3-2-0 operation |
| Fault Handling | Hardware-Implemented Fault Tolerance (HIFT) |
| Safety Rating | SIL-capable; public listings cite SIL 3 / SIL 4, verify against OEM datasheet |
| Chassis | Trusted TMR controller chassis with IMB backplane |
| Expansion | Supports Trusted I/O and expander modules via IMB/expander bus |
| Communications | System-dependent; RS-232, RS-485, Ethernet, and Modbus are cited in general listings but must be confirmed per revision |
| Power | Typically 24 V DC system supply; verify exact rating on nameplate |
| Diagnostics | Front-panel status LEDs, self-test, and module health monitoring |
| Replacement | Hot-swappable where the Trusted system configuration permits |
Product Introduction
Replacing a failed processor in a safety system is not the time to discover that your spare has the wrong firmware or belongs to a different Trusted generation. The 9802-1-9852-2 is an ICS Triplex TMR controller module used inside Trusted safety and critical control architectures, where three independent processor channels vote on every decision so a single hardware fault does not trip the process.
This is not a generic PLC CPU. It lives inside a Trusted TMR chassis and participates in hardware-implemented fault tolerance, with continuous self-diagnostics and automatic fault isolation. The value is simple: if the failed module is labeled 9802-1-9852-2, a verified like-for-like replacement restores the TMR triplet without re-architecting the safety logic. Just match the suffix, firmware, and chassis slot.
QA/QC Transparency SOP
- Intake & Origin Verification — Record full part number 9802-1-9852-2, serial number, firmware/EPROM labels, and Trusted system revision. Inspect backplane connectors, front-panel LEDs, and PCB for thermal stress or corrosion.
- Live Functional Testing — Install in a compatible Trusted TMR test chassis. Verify power-up sequence, TMR synchronization, channel voting, LED diagnostics, and communication with the host controller.
- Electrical Parameter Tests — Measure module supply rails, backplane current draw, and isolation boundaries. Check for shorts, ground faults, or abnormal load before placing the module in a live safety rack.
- Firmware/Config Verification — Read firmware revision, module identity, and stored configuration. Back up readable parameters. Confirm the module matches the system’s required revision.
- Final QC & Anti-Static Packaging — Label with part number, revision, firmware, serial, and test date. Pack in ESD bag with anti-static foam and rigid outer box.
Field Engineer Gotchas
- Suffix mismatch: 9802, 9852, T9802, and T9852 appear across Trusted listings, but the suffixes are not interchangeable. 9802-1-9852-2 must match the failed module exactly. Pull the label before ordering.
- Firmware/revision mismatch: A module that powers up can still fail to join the TMR triplet if the firmware revision does not match the chassis. This shows up as synchronization faults, not dead hardware.
- Wrong slot assignment: Trusted chassis enforce specific slot rules for processors, communicators, and I/O. Forcing a processor into a non-processor slot can damage the backplane or prevent voting.
- Hot-swap risk: Trusted modules are often hot-swappable, but only when the system is configured for it and the remaining channels are healthy. Do not pull a module during an active fault unless procedures allow it.
- ESD and backplane contamination: Dust, oxidation, or bent pins on the IMB connector can cause intermittent channel faults. Clean the backplane contacts and handle the module by the edges.

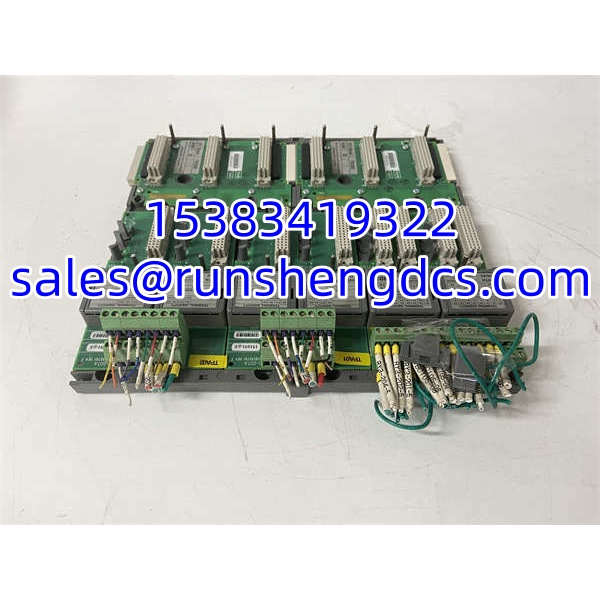

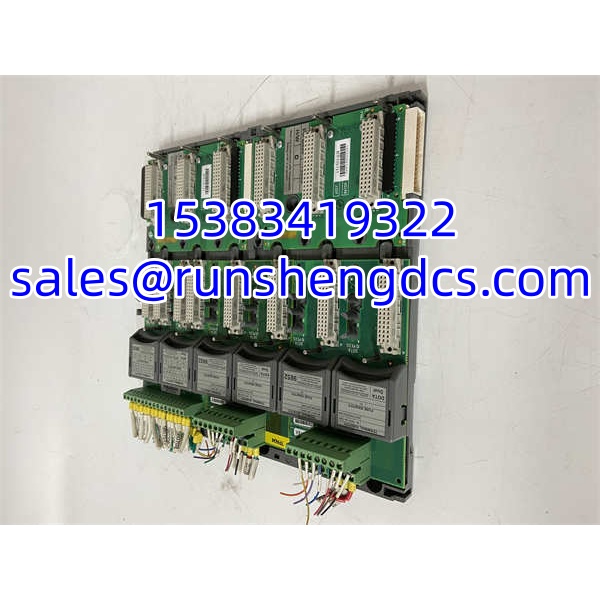

ICS Triplex 9802-1-9852-2
Application Scenarios
- Emergency shutdown system processor failure: Replaces a failed TMR processor in a Trusted ESD rack where a single-channel fault must not cause a spurious trip.
- Oil and gas critical process control: Used in compressor, pipeline, or separator protection systems that require continuous TMR voting and fast fault detection.
- Power generation safety loops: Suitable for turbine protection, burner management, or auxiliary safety systems where availability and fault tolerance are mandatory.
- Chemical plant SIS maintenance: Supports safety instrumented functions that must remain operational during online module replacement.
FAQ
Is 9802-1-9852-2 the same as 9852 or T9852?
Not necessarily. Public listings use 9802, 9852, T9802, and T9852 across Trusted controller and expander contexts, but the full suffix determines compatibility. Match 9802-1-9852-2 exactly.
Can I install this in any ICS Triplex chassis?
No. It belongs in a compatible Trusted TMR controller chassis. Mechanical fit does not guarantee IMB compatibility, firmware support, or slot assignment.
Does this module support hot-swapping?
Trusted TMR modules are commonly hot-swappable, but only when the system is configured for online replacement and the remaining channels are healthy. Follow OEM procedures.
What safety level does it support?
Public listings cite SIL 3 or SIL 4 capability, but the exact certification depends on the Trusted system configuration and OEM documentation. Verify before using it in a safety loop.
Can I upgrade firmware in the field?
Only with approval from the system integrator or OEM. Changing firmware on a TMR processor can break triplet synchronization and invalidate safety validation.
Is this module still in production?
Trusted modules of this generation are commonly supplied as surplus, refurbished, or tested used. Confirm availability and condition with the vendor.
