Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell Process Solutions (legacy FireCom) |
| Model Number | FC-PSU-UNI2450U V1 / V1.0 |
| Product Family | Safety Manager / FSC system PSU |
| Input Voltage | AC 100–240 V, 50/60 Hz typical |
| Output Voltage | 24 VDC (24.5 VDC typical for this family) |
| Output Current | 5 A typical for V1.0; verify from nameplate |
| Output Power | ~120 W at 5 A; V2.1 revisions may be rated higher (up to 50 A) |
| Efficiency | >85% typical |
| Protection | Over-voltage, over-current, short-circuit, over-temperature |
| Voltage Tolerance | 24 VDC output expected range approximately +30% / −15% |
| Diagnostics | LED indicators for power, over-temperature (>90°C), fan fault, and out-of-range voltage |
| Operating Temp | −5°C to +70°C typical; verify per nameplate |
| Storage Temp | −25°C to +85°C |
| Humidity | 5% to 95%, non-condensing typical |
| Certifications | CE, TÜV, UL, CSA; some variants UL 508 listed |
| Availability | Surplus / refurbished; revision-dependent |
Product Introduction

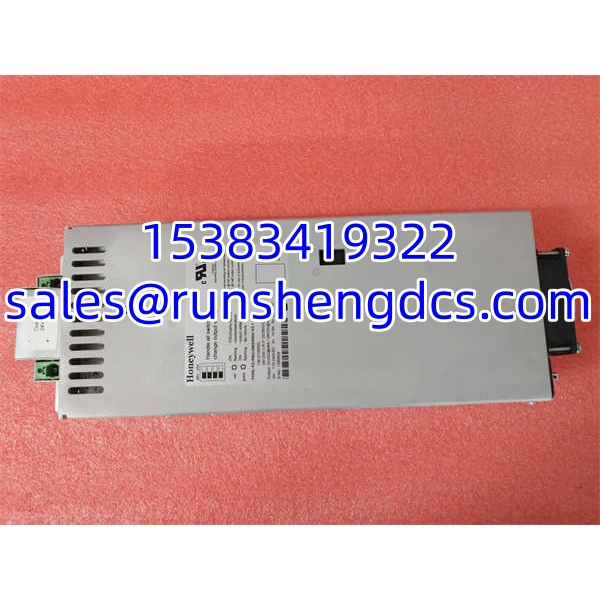

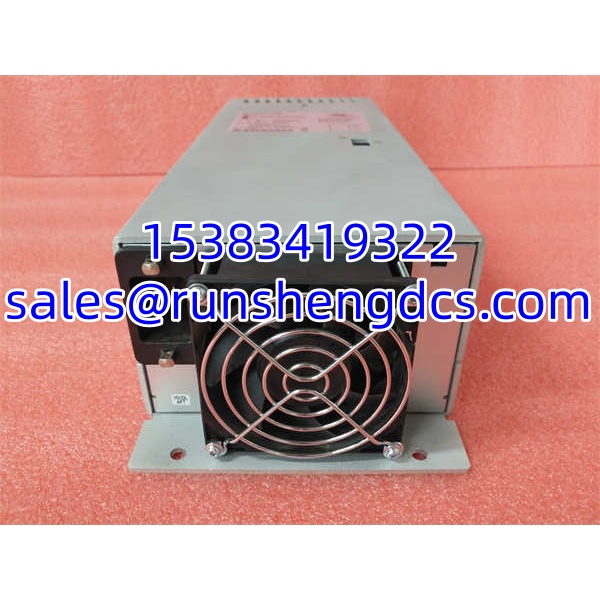

The FC-PSU-UNI2450U V1 is a system power supply unit used in Honeywell Safety Manager and FSC-family safety systems. It converts 100–240 VAC mains into regulated 24 VDC to support safety controllers, I/O racks, communication modules, and field devices. In safety applications, the PSU is not a generic cabinet supply; it is part of a monitored power architecture with diagnostic LEDs, voltage-range checks, and fault reporting.
For procurement, the V1 unit is a maintenance-replacement candidate for legacy safety cabinets where the original PSU has degraded or failed. For engineering, the critical point is revision control. The FC-PSU-UNI2450U family spans V1, V1.0, V2.0, and V2.1 revisions, and current ratings differ significantly. A 5 A V1 replacement cannot be assumed equivalent to a 50 A V2.1 unit without confirming cabinet load, redundancy pairing, wiring, and system approval.
QA/QC Transparency SOP
- Intake & Revision Verification — Record FC-PSU-UNI2450U V1, hardware revision, serial number, and nameplate ratings. Reject units with burnt components, damaged AC/DC terminals, swollen capacitors, or missing labels.
- Live Functional Testing — Energize the PSU in a compatible test setup. Confirm AC input acceptance, 24 VDC output stability, LED status, and fan operation.
- Electrical Parameter Tests — Measure output voltage, ripple/noise, load regulation, over-current response, and short-circuit protection. Flag output drift or unstable regulation.
- Diagnostic Verification — Confirm LED behavior for normal operation, over-temperature warning, fan fault, and out-of-range voltage conditions.
- Final QC & Anti-Static Packaging — Apply ESD bag, moisture barrier, and revision label. Ship with test summary, nameplate photos, and measured output data.
Field Engineer Gotchas
- V1 vs. V2.1 Confusion — V1.0 is commonly listed around 5 A, while V2.1 variants may be rated up to 50 A. Do not substitute revisions without verifying system load and cabinet wiring.
- Redundancy Pairing — Safety cabinets often use redundant PSUs. Mixing revisions or mismatched output settings can cause uneven load sharing or nuisance alarms. Solution: match revision and verify both units under load.
- Output Voltage Range — The 24 VDC family expects approximately +30% / −15% tolerance. Persistent out-of-range voltage indicates a calibration or internal fault; do not force the unit into service.
- Fan and Thermal Faults — Internal air temperature above 90°C or slow fan speed triggers diagnostic LEDs. Clean filters, verify airflow, and replace fans before assuming a controller fault.
- Cabinet Load Verification — Before replacing a failed PSU, confirm the total 24 VDC load from controllers, I/O, relays, and field devices. An undersized replacement may trip under peak demand.
Honeywell FC-PSU-UNI2450U V1
Application Scenarios
- Safety Manager cabinet power restoration — Replacing a failed PSU in a Honeywell Safety Manager or FSC cabinet during planned maintenance.
- Redundant PSU pair maintenance — Swapping one member of a redundant 24 VDC pair while maintaining system availability.
- Legacy safety system sparing — Keeping a verified V1 unit on site for aging installations where newer revisions are not approved for direct substitution.
- ESD and critical process protection — Supporting safety-related power distribution for emergency shutdown, fire/gas detection, and critical interlocks.
FAQ
1. What is FC-PSU-UNI2450U V1?
It is a Honeywell Safety Manager / FSC-family system power supply that converts 100–240 VAC into regulated 24 VDC for safety-related equipment.
2. Is V1 the same as V2.1?
No. The family includes multiple revisions. V1.0 is commonly rated around 5 A, while V2.1 variants may be rated up to 50 A. Always verify the nameplate before substitution.
3. Can I use this in a redundant configuration?
Yes, when the cabinet is engineered for redundant PSUs. Both units should match in revision and output setting.
4. What do the LEDs indicate?
Typical LEDs report power status, over-temperature (>90°C), fan fault, and out-of-range output voltage.
5. What output voltage should I expect?
Approximately 24–24.5 VDC, with an expected tolerance band around +30% / −15%. Persistent deviation requires calibration or replacement.
6. Is this still in production?
Availability depends on revision and Honeywell product status. Many units are now sourced as surplus or refurbished stock.
7. Do you provide load testing?
We can verify output voltage, current capability, protection behavior, and LED diagnostics on a compatible test bench. Final system acceptance must be confirmed by the site safety or controls engineer.
