Description
Key Technical Specifications
- Model Number: CC-TDIL51 51307083-175
- Manufacturer: Honeywell
- Series: Experion C300 / C-Series I/O
- Product Type: Digital Input Module
- Channel Count: 16 Channels
- Signal Conversion: External digital to internal PLC logic level
- Sensor Compatibility: Mechanical contacts, 2-wire photoelectric & proximity switches
- Processing: Fast response with low latency for real-time data transmission
- Diagnostics: Built-in open-field-wire detection and fault protection
- Form Factor: Modular plug-in card for C300 backplane
Functional Role & Application Analysis
The Honeywell CC-TDIL51 is a dedicated digital input module designed for the Experion C300 Distributed Control System. It solves the critical need for reliable, real-time signal acquisition from field devices. In complex industrial environments, standard inputs can suffer from signal degradation or delayed processing. The CC-TDIL51 converts external mechanical and electronic digital signals directly into internal PLC logic levels with minimal latency. It also features advanced diagnostic capabilities, actively monitoring for open field wires and reporting invalid states to prevent incorrect control operations.
Field engineers rely on this module to maintain deterministic control loop performance and system safety.
- Automated Production Lines: Acquires real-time status signals from proximity switches and photoelectric sensors, enabling precise equipment sequencing and monitoring.
- Intelligent Manufacturing: Digitizes physical machine states for upper-level MES integration, facilitating predictive maintenance and OEE tracking.
- Smart Logistics & Warehousing: Monitors conveyor belt states, limit switches, and automated guided vehicle (AGV) docking points in high-speed sorting facilities.
- Building Automation Systems (BAS): Interfaces with HVAC dampers, elevator status relays, and lighting contactors to optimize facility energy management.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed input module can mask critical safety interlocks or halt production. We have established a rigorous, multi-stage testing process to ensure every CC-TDIL51 we ship is 100% functional and ready for immediate deployment.
- Visual & Component Inspection: All boards undergo professional cleaning and high-magnification visual inspection. We verify there is no physical damage, capacitor leakage, or compromised solder joints.
- Live System Test: The module is installed in a live Honeywell C300 test rack and run for 24 hours. We monitor backplane communication, thermal performance, and continuous data exchange.
- Full-Function Diagnostics: We simulate 16 independent digital input signals to test full-channel response times. We also intentionally create open-circuit faults to verify the module’s diagnostic reporting accuracy.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and comes with a comprehensive test report.

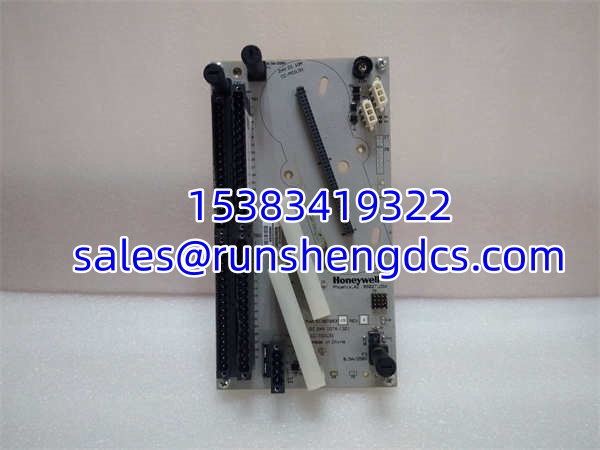

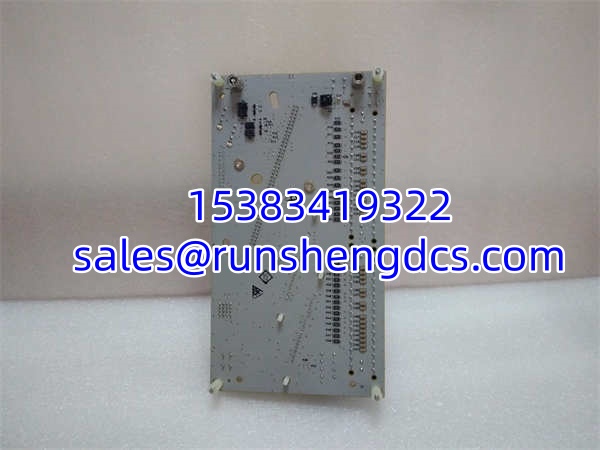

Honeywell CC-TDIL51 51307083-175
Compatibility & Migration Paths
To ensure this CC-TDIL51 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly commissioning delays.
- Firmware/Hardware Revisions: You must confirm your C300 controller firmware supports the specific hardware revision of the 51307083-175 suffix. Mismatched revisions can cause I/O configuration faults.
- Required Components: This module requires the correct C-Series termination assembly and backplane. Verify the specific termination part number matches your existing wiring infrastructure.
- Replacement & Alternatives: The CC-TDIL51 is part of the C-Series family. If replacing an older TDC 3000 card, ensure the baseboard and termination assemblies have been properly migrated to the C300 platform.
- Get Expert Help: Unsure about your system configuration or revision level? Contact our technical team today for a free compatibility check and migration assessment.
