Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part number | 51403645-100 SBHM |
| Product family | CFHD-SBHM controller module |
| Platform | Honeywell Experion PKS DCS |
| Primary function | Process control execution and I/O supervision |
| Control algorithms | PID, advanced process control |
| Communication interfaces | Modbus, Profibus, and other industrial protocols |
| Data handling | Real-time sensor data acquisition and feedback |
| Mounting | Rack-mounted in Experion PKS control cabinet |
| Redundancy | Supports redundant configuration (verify pairing status) |
| Condition | Typically surplus or refurbished |
Product Introduction
The 51403645-100 SBHM is a process controller module for the Honeywell Experion PKS distributed control system. It sits in the control rack and executes the control logic that regulates temperature, pressure, flow, level, and other process variables across the plant. It communicates with field I/O modules, operator stations, and third-party devices through industrial protocols such as Modbus and Profibus.
This is not a generic PLC. Its firmware, redundancy configuration, and Experion PKS release support must align with the installed system. A controller that physically fits the rack may still fail to synchronize with its redundant partner or reject the loaded control strategy if the firmware revision or PKS release is incompatible. For brownfield replacements, matching the existing module’s revision and documenting the control strategy backup before removal is critical.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm full part number 51403645-100 SBHM, hardware revision, and serial number. Photograph nameplate, connector face, LED indicators, and mounting hardware. Reject units with damaged backplane pins, cracked housings, or missing revision labels.
- Live Functional Testing: Install into a compatible Experion PKS test rack. Verify module power-up, LED status, and recognition by the PKS system. Confirm the controller loads and executes a test strategy without fault.
- Communication Testing: Verify Modbus and Profibus interface operation where applicable. Test communication with I/O modules and operator stations. Confirm no address conflicts, timeout errors, or intermittent link drops.
- Firmware & Redundancy Verification: Record firmware revision and compare against the installed Experion PKS release. If the module is intended for redundant service, verify it can pair and synchronize with its partner controller.
- Final QC & Anti-Static Packaging: Label with part number, firmware revision, tested protocols, LED status, and PKS release compatibility. Pack in ESD-safe materials with connector protection. Include photos and a test summary.
Field Engineer Gotchas
- Firmware revision is critical: A mismatched firmware revision can prevent strategy download, redundant synchronization, or communication with existing I/O modules. Always record the revision before replacement.
- Redundancy pairing must be verified: If replacing one half of a redundant pair, the new module must match the partner’s firmware and be able to synchronize. A mismatched spare will remain in a faulted or standby state.
- Control strategy backup is mandatory: Before removing any controller, export and verify the current control strategy backup. A replacement module without a valid strategy load will not restore control.
- Experion PKS release compatibility: The module must be supported by the installed Experion PKS release. Newer or older PKS versions may not recognize the controller.
- Not a drop-in for C300: The SBHM/CFHD family is distinct from the C300 controller line. Do not substitute based on rack compatibility alone.
- Surplus listings vary widely: Vendors may label similar Honeywell controller modules interchangeably. Verify the exact 51403645-100 SBHM marking and revision rather than relying on generic “Experion controller” descriptions.

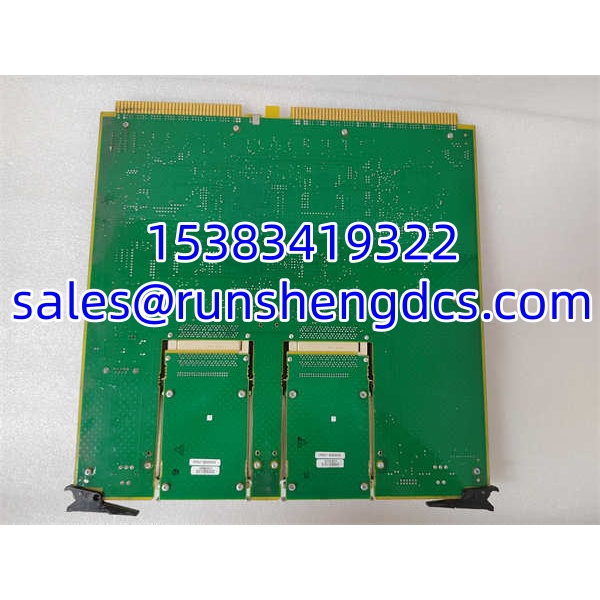

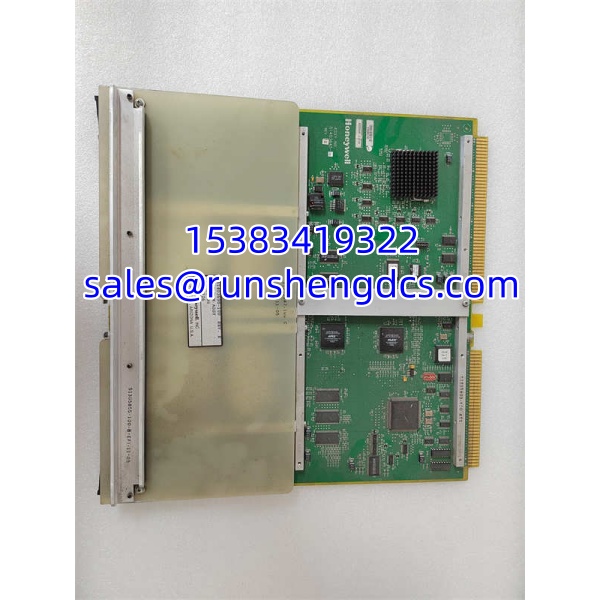

HONEYWELL 51403645-100 SBHM
Application Scenarios
- Brownfield Experion PKS controller replacement: A failed process controller in an existing Experion PKS rack is replaced with a verified 51403645-100 SBHM, with firmware matched and control strategy restored from backup.
- Redundant controller pair maintenance: One half of a redundant controller pair shows persistent fault LEDs. The failed module is replaced with a tested spare, and redundant synchronization is verified before returning to full redundancy.
- Spare controller inventory for critical units: Refineries and chemical plants keep tested SBHM controllers in stock to reduce mean time to repair for controller failures on critical process units.
FAQ
What is the 51403645-100 SBHM?
It is a process controller module (CFHD-SBHM family) for the Honeywell Experion PKS DCS, executing control strategies and managing process I/O.
Is it compatible with C300 controllers?
No. The SBHM/CFHD family is a different controller line from the C300. They are not interchangeable.
Does it support redundancy?
Yes, it supports redundant configuration. Verify pairing status and firmware match before deploying in a redundant pair.
What communication protocols does it support?
Modbus, Profibus, and other industrial protocols, depending on configuration and installed interfaces.
Can I use it as a direct replacement?
Only if the firmware revision, Experion PKS release, and control strategy are compatible. Always verify before installation.
Should I buy this as surplus?
It can be a practical spare if the firmware revision, physical condition, and PKS release compatibility are documented. Avoid units without test records.
