Description
Key Technical Specifications
- Product type: System 57 engineering/commissioning card
- Part number: 05701-A-0361
- DC supply: 18–32 VDC, typically from the rack backplane/DC input card
- Typical power consumption: 1.5 W
- Engineering interface: RS232 mini-DIN for external PC/printer/engineering key
- Panel interface: Membrane keys plus 2 LEDs (Power green, Unlocked red)
- Mounting position: Rightmost dedicated slot in the System 57 rack; not installed in normal gas channel slots
- Quantity per rack: One engineering card per rack
- Dimensions: 132 × 25 × 170 mm
- Weight: Approximately 0.152 kg
- Output ratings / detailed I/O map: Not confirmed from available sources; verify on nameplate or OEM documentation
- Compatibility: Works with System 57 gas channel cards such as 05701-A-0301 and 05701-A-0360; it does not replace those channel cards
Product Introduction
The Honeywell 05701-A-0361 is the engineering/commissioning card for the Honeywell Analytics System 57 fixed gas detection rack. It is not a gas sensor input card. Instead, it provides centralized calibration, alarm management, time reference, backplane communication control, and RS232 engineering access for all gas channel cards installed in the same rack.
In maintenance and commissioning work, this card matters when a System 57 rack cannot be calibrated, cannot communicate over RS232, or shows persistent alarm/configuration issues. Because the 05701-A-0361 sits in the rightmost dedicated slot and manages rack-level engineering functions, replacing it requires confirming the rack type, slot position, firmware/revision compatibility, and whether the existing channel cards and alarm settings are intact.
Troubleshooting Quick Reference
| Fault | Likely Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Cannot calibrate channels | Backplane communication or card fault | High | Check channel card status and rack power | Verify channel cards; replace engineering card if faulty |
| RS232 communication fails | Wrong cable, parameters, or damaged interface | High | Check RS232 cable and serial settings | Restore correct parameters; replace card if RS232 chip is damaged |
| Unlocked red LED stays on | Engineering key inserted or unlocked mode active | Medium | Check engineering key and panel status | Remove key; confirm whether changes were saved |
| Alarm settings cannot be modified | Not unlocked or wrong access level | Medium | Check unlock procedure and key status | Unlock properly; verify alarm setpoints |
| Rack time/date incorrect | Lost time reference | Medium | Check system clock via panel/ | Reset time; verify calibration records |
| Replacement card does not function | Wrong slot or wrong System 57 variant | High | Confirm rightmost dedicated slot | Install in correct slot; verify rack compatibility |

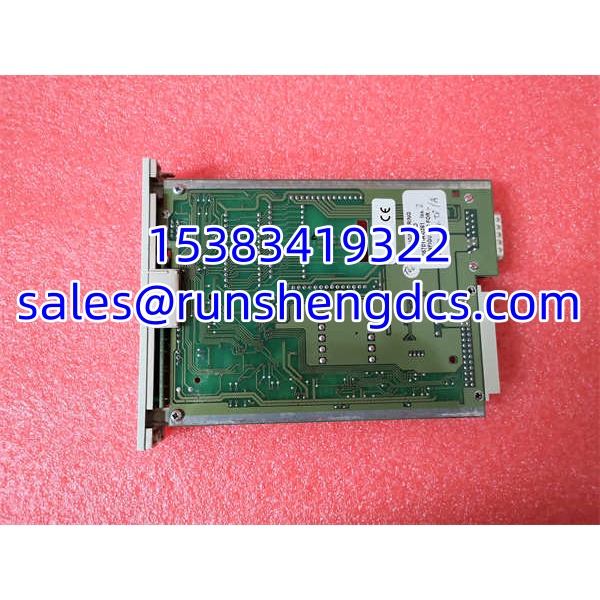

Honeywell 05701-A-0361
Application Scenarios & Pain Points
- Fixed gas detection rack commissioning: The 05701-A-0361 is used to perform zero/span calibration for combustible, toxic, or oxygen detector channels connected to System 57 gas channel cards.
- Alarm configuration and testing: Engineers use the panel keys or interface to set alert/danger points, test alarms, or temporarily inhibit alarms during maintenance.
- Calibration record management: The card stores calibration references and reminders, which is important for safety audits and periodic maintenance planning.
- Surplus replacement risk: Because 05701-A-0361 is often confused with gas channel cards such as 05701-A-0301 or 05701-A-0360, issuing the wrong card will not restore channel acquisition.
- Case note: A site reported that gas channels could not be calibrated after a card replacement. The replacement was a channel card, not the engineering card. After installing the correct 05701-A-0361 in the rightmost slot, calibration and access were restored.
