Description
Key Technical Specifications
- System Compatibility: Honeywell System 57 Rack
- Channel Capacity: Single Channel Operation
- Input Types Supported: 4-20mA Analog / Catalytic Bead
- Display: Front-Panel LCD (Gas Readings & Status)
- Alarm Indication: Front-Panel LEDs (A1, A2, A3, Fault)
- User Controls: Reset Alarm / Card Select Push-button
- Configuration Storage: Non-Volatile EEPROM
- Power Supply: 24V DC (via Backplane / DC Input Card)
- Form Factor: Euro Rack Card (1-inch / 2.54cm wide)
- Mounting: 19-inch Sub-rack (Front or Rear Access)
- Add-on Modules: Supports Plug-in Sensor Drive & Analog Output
- Communication: Backplane Serial Bus / Optional Modbus
Product Introduction
When a toxic gas leak triggers a silent alarm in a remote processing facility, the 05701-A-0330 is the critical interface bridging the physical hazard and the control room. Sitting in a System 57 rack, this single-channel control card continuously processes raw signals from field-mounted gas detectors. It translates analog or catalytic inputs into precise digital readings, compares them against predefined safety thresholds, and triggers local relays and LEDs when limits are breached.
This module is highly configurable via an Engineering Card, with all setpoints and calibration data safely stored in onboard EEPROM. It supports plug-in sensor drive modules, meaning you can swap between 4-20mA and catalytic configurations without replacing the entire card. Honestly, in a 16-channel rack, isolating a fault to this specific 05701-A-0330 card saves hours of troubleshooting. It is a dedicated, single-point-of-failure component designed for fast, hot-swappable replacement to maintain continuous safety compliance.
Troubleshooting Quick Reference
- Blank LCD / No LEDs | Backplane Power Loss | High (75%) | Measure 24V DC at card edge connector | Reseat card; verify DC Input Card (05701-A-0325) is functional
- No Gas Reading | Missing Sensor Drive Module | High (70%) | Check if J1/J2 sensor module is installed | Install correct plug-in drive module (e.g., 05701-A-0283)
- False Alarms | EEPROM Config Drift | Medium (50%) | Connect Engineering Card (05701-A-0361) | Verify alarm setpoints; recalibrate sensor zero/span
- Card Not Communicating | Backplane Bus Fault | Medium (40%) | Check adjacent cards for communication errors | Clean card edge fingers; inspect backplane pins for corrosion
- LED Stuck On | Latched Relay / Logic Fault | Low (20%) | Press front-panel Reset button | If unresponsive, replace the 05701-A-0330 card

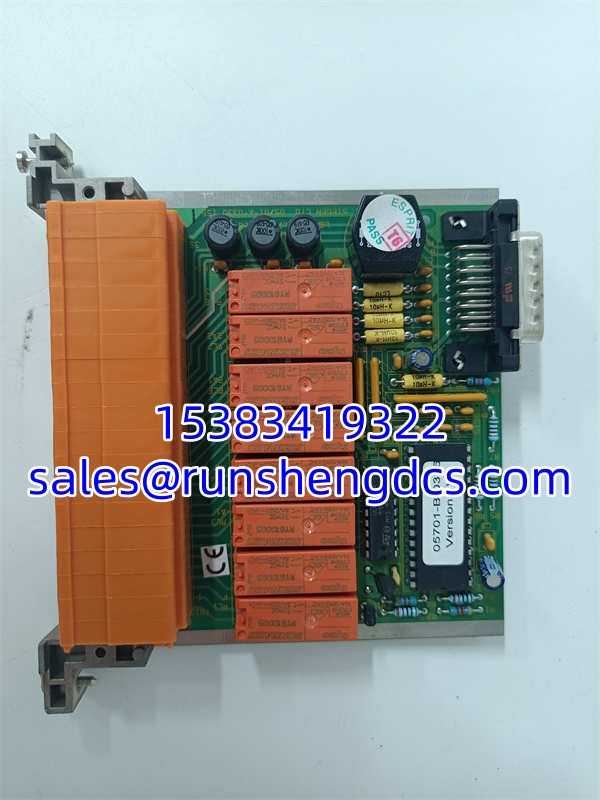

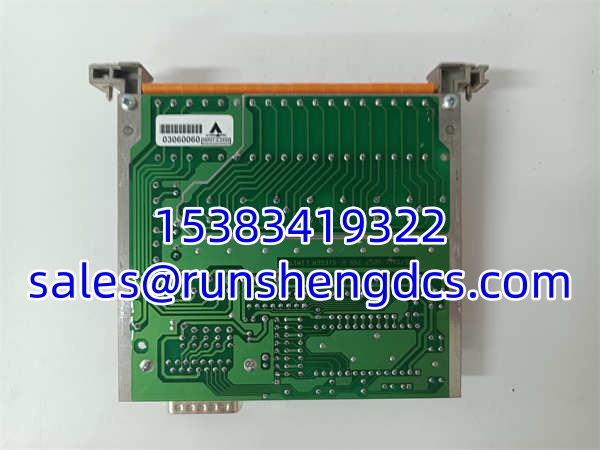

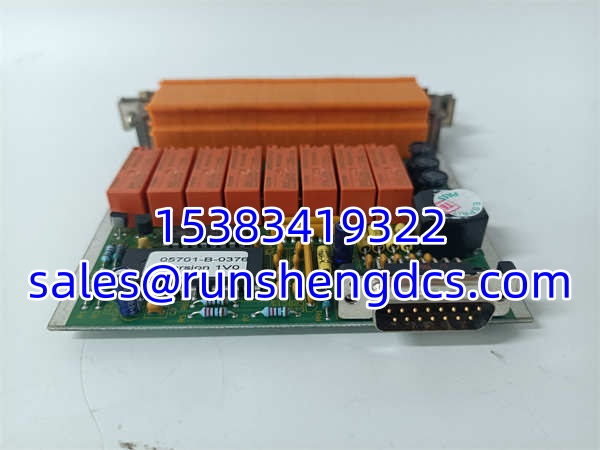

Honeywell 05701-A-0330
Application Scenarios & Pain Points
- Offshore Platform Gas Detection: High vibration and salt spray degrade standard connectors. The System 57’s rigid Euro rack and plug-in module design maintain solid electrical connections where standard DIN-rail controllers fail.
- Refinery Confined Space Monitoring: Requires precise threshold management. The microprocessor’s 1% FSD alarm resolution ensures early warning before LEL limits are reached, preventing catastrophic events.
- Unmanned Remote Stations: Power fluctuations are common. The 24V DC backplane power and non-volatile EEPROM ensure the card boots up with correct safety parameters even after a total power loss.
Compatible Replacement Models
- ✅ Drop-in Replacement: 05701-A-0330 (Exact match. Verify sensor type configuration. No hardware changes needed.)
- ⚠️ Software Compatible: 05701-A-0351 (Alternative single-channel 5701 card. Requires Engineering Card reconfiguration and potential sensor drive module swap.)
- ❌ Hardware Incompatible: 05704-A-0144 (5704 Four-Channel Gas Card. Different width, pinout, and rack slot mapping. Do not attempt to install.)
