Description
Key Technical Specifications
• Sensor Input Type: Catalytic Bridge (Bead)
• System Compatibility: System 5701, 5704, 5704F
• Alarm Levels: 3-stage configurable (A1, A2, A3)
• Display: Front-panel LCD with gas readout
• Status Indicators: LED indicators for Alarm and Fault states
• Relay Outputs: Optional alarm transfer relays
• Analog Output: Optional isolated 0-20mA or 4-20mA loop
• Configuration: Via dedicated Engineering Card (05701-A-0361)
• Mounting: 3U Eurocard format (1″ / 2.54cm width)
• Operating Environment: Indoor, non-hazardous control room
Product Introduction
Catalytic bead sensors are the frontline defense against combustible gas leaks, but they drift and degrade over time. The Honeywell 05701-A-0302 acts as the dedicated brain for a single sensor in the System 57 rack. It drives the Wheatstone bridge, processes the raw signal, and handles the logic. Honestly, if you’re seeing erratic readings or phantom alarms on your gas panel, this microprocessor-controlled card is usually the first suspect after the sensor head itself.
Why keep this specific card? It provides precise signal conditioning and fault detection tailored strictly for catalytic inputs. The front-panel LCD lets local operators verify gas levels without walking back to the DCS, and the 3-stage alarm logic ties directly into plant safety interlocks. Bottom line—this module is a dedicated safety device. Do not attempt to substitute it with the 05701-A-0301 (which is strictly for 4-20mA inputs) unless you are also replacing the field sensors.
Troubleshooting Quick Reference
• Blank LCD / No Power | Cause: Backplane power failure or unseated card | Relevancy: 90% | Quick Check: Verify 24VDC at rack backplane | Fix: Reseat card or check DC input card
• Sensor Open/Fault LED | Cause: Broken field cable or dead catalytic bead | Relevancy: 85% | Quick Check: Measure bridge resistance at TB | Fix: Replace sensor head or repair shielded cable
• Nuisance High Alarms | Cause: Sensor drift or zero/span degradation | Relevancy: 80% | Quick Check: Apply test gas and compare to LCD | Fix: Perform zero and span calibration via Engineering Key
• Relays Not Energizing | Cause: Logic state mismatch or bad output driver | Relevancy: 75% | Quick Check: Check alarm setpoints vs. current reading | Fix: Verify relay logic (NO/NC) in configuration
• Comm Loss to Engineering PC | Cause: Faulty Engineering Card or bad serial cable | Relevancy: 70% | Quick Check: Verify Engineering Card is in rightmost slot | Fix: Reseat Engineering Card or replace RS232 cable

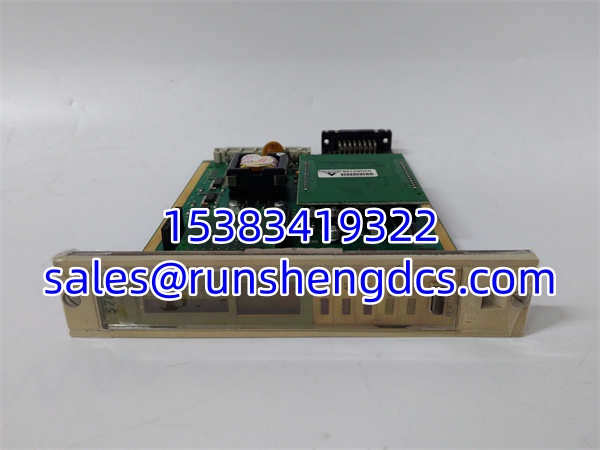

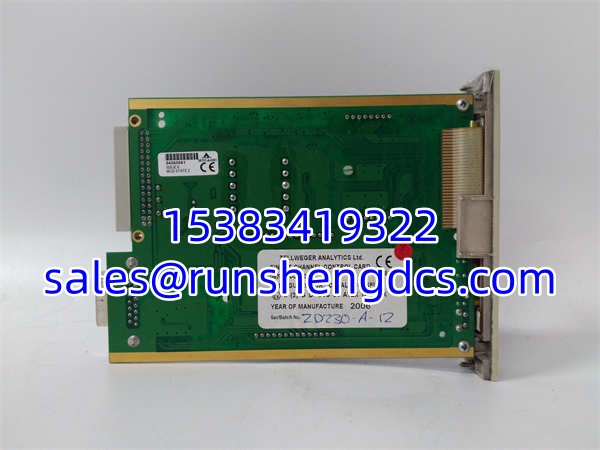

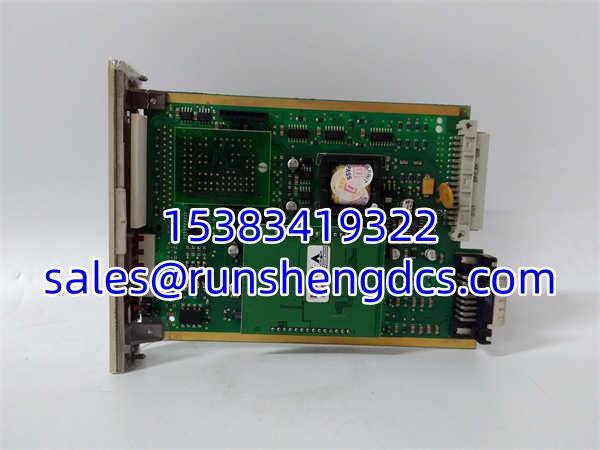

Honeywell 05701-A-0302
Application Scenarios & Pain Points
• Oil & Gas Refineries: High EMI from variable frequency drives corrupts analog signals. The digital processing on this card isolates the catalytic bridge signal from electrical noise, preventing false combustible gas trips.
• Chemical Processing Plants: Toxic and explosive atmospheres demand strict safety integrity. The 3-stage alarm (A1/A2/A3) allows operators to vent areas before reaching critical LEL thresholds.
• Marine Offshore Platforms: Space and weight are at a premium. The 1-inch wide 3U card format maximizes channel density in cramped, vibration-prone electrical rooms.
Compatible Replacement Models
• ✅ Drop-in Replacement: Honeywell 05701-A-0302 (Exact Match). Same footprint, same backplane connector, same catalytic configuration. Cost varies wildly (7k-10k) depending on surplus availability.
• ⚠️ Software Compatible: Honeywell 05701-A-0301. Same physical card, BUT configured for 4-20mA inputs. Requires Engineering Card reconfiguration and swapping field sensors to active transmitters. Plan 4 hours for re-commissioning.
• ❌ Hardware Incompatible: Honeywell 05701-A-0284 (Sensor Drive Module only). Do not attempt to use alone. This is just the daughterboard; it requires the base control card to function. Total system rewrite required if migrating to modern DCS.
