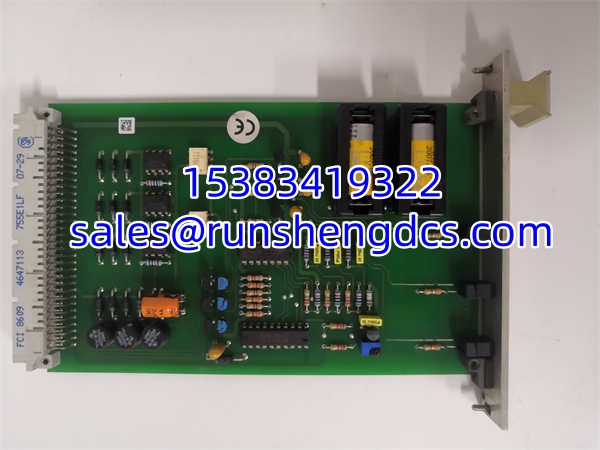

HIMA F7131 | Power Supply Monitoring Module with Buffer Batteries for HIMA SIS

Description

Key Technical Specifications

Product Introduction

The HIMA F7131 is a power-supply supervision module for HIMA safety-instrumented systems. Its job is straightforward but critical: it watches the 5 V system voltage produced by up to three power supplies and reports their health to the central modules. In a SIL-rated architecture, losing visibility into internal power rails is itself a failure mode, so the F7131 exists to make sure the system knows when a supply is missing, degraded, or out of tolerance.

The module also supports buffer batteries. That means it is not only watching voltage levels; it helps maintain diagnostic continuity during brief supply disturbances. The three test bits readable by F8650/F8651 allow the safety program or diagnostic display to treat power-supply health as a monitored condition rather than an invisible hardware event.

Bottom line — treat the F7131 as infrastructure. It does not execute logic, read field devices, or talk Modbus/Profibus. It keeps the safety rack aware of its own power integrity.

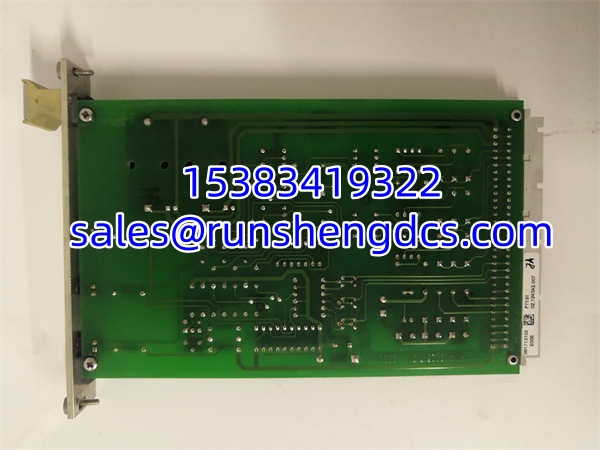

HIMA F7131

QA/QC Transparency SOP

1. Part Verification
   Confirm HIMA F7131 label, revision, and serial number. Verify the module matches the HIMA rack family in use.
2. Visual Inspection
   Check front-panel LEDs, connector pins, PCB condition, battery holder, and mounting clips. Look for corrosion, cracked solder joints, or swollen battery contacts.
3. Battery Check
   Inspect the installed buffer battery. If the battery date is unknown or older than four years, recommend replacement with HIMA 44 0000016 before commissioning.
4. Power and Diagnostic Verification
   Apply 5 V DC and 24 V DC as applicable. Confirm LED indications and verify that diagnostic test bits are readable by the paired central module.
5. Final Documentation
   Record LED behavior, battery status, test-bit response, and any observed anomalies. Pack in ESD-safe packaging with a configuration note.

Field Engineer Gotchas

• Not a CPU or I/O card
  Risk: Substituting F7131 for a processor or field I/O module will not work.
  Solution: Confirm it is being used strictly for power-supply monitoring.
• Battery age matters
  Risk: An expired buffer battery can mask supply disturbances or cause nuisance diagnostics.
  Solution: Replace with CR-1/2 AA-CB, HIMA 44 0000016, on a four-year cycle.
• Wrong rack family pairing
  Risk: HIMA modules are platform-sensitive. An may not be compatible with every HIMA chassis or generation.
  Solution: Verify compatibility with HIMax, H41q, or H51q documentation before installation.
• Misreading the 24 V outputs
  Risk: The PS1–PS3 24 V outputs are only relevant when used with the B9361 additional power-supply assembly.
  Solution: Do not expect these outputs on every installation.
• Risk: Some listings incorrectly describe as a controller, communication module, or servo drive.
  Solution: Accept only listings that identify it as a power-supply monitoring module.

HIMA F7131

Application Scenarios

• HIMA SIS rack power-health monitoring
  The provides continuous supervision of internal 5 V rails so the safety system can detect supply degradation before it affects logic execution.
• Buffer-battery maintenance during turnarounds
  Replacing aged buffer batteries on a known cycle helps prevent hidden power-supply faults in long-running HIMax/H41q/H51q racks.
• Diagnostic integration with F8650/F8651
  The three test bits allow power-supply status to be read into the central module diagnostics or user program for alarm handling.
• Legacy system sparing
  Plants running older HIMA safety systems often need verified modules to maintain original power-supply supervision architecture.

FAQ

No. It is a power-supply monitoring module. It does not execute control logic.

What does it monitor?
It monitors the 5 V system voltage generated by up to three power supplies and supports buffer-battery-assisted supervision.

What battery does it use?
CR-1/2 AA-CB, HIMA part number 44 0000016. Replacement is recommended every four years.

Can it be used in any HIMA system?
It is associated with HIMA HIMax / H41q / H51q family architectures. Compatibility should be confirmed against the specific rack and manual before installation.

Does it provide field I/O?
No. Its outputs are internal diagnostic/monitoring signals, not field device outputs.

Should I buy it as a “controller”?
No. Listings that call a controller, communication module, or servo drive are inaccurate. Treat it as a power-supply supervision card.
