Description
Key Technical Specifications
- Input Channels: 16 independent digital inputs
- Safety Rating: TÜV AK6 / SIL3 certified
- Microprocessors: Dual Intel 386EX (32-bit, 25 MHz)
- Input Signal Types: 6 mA current or 24V mechanical contacts
- Switching Time: 8 ms typical response
- Power Supply: 5 VDC (120 mA) or 24 VDC (200 mA)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity Range: 5% to 95% (non-condensing)
- Protection Class: IP20+
- Diagnostics: Auto-tests for crosstalk, filter caps, and line breaks
Product Introduction
Safety instrumented systems demand zero tolerance for signal drift or hidden faults. The HIMA F3236 tackles this by running two synchronized Intel 386EX processors in parallel, constantly comparing memory states through a hardware comparator to catch anomalies before they propagate.
This 16-channel module doesn’t just read switches; it actively hunts for internal failures. With an 8 ms switching time and a verified fault coverage exceeding 99%, it reliably captures emergency stops and pressure trips in harsh environments without false tripping.
Troubleshooting Quick Reference
- Entire Card Reads Zero: 90% chance of internal self-test failure. The OS automatically zeros all 16 channels when a fault is detected. Check the CU display for specific error codes (e.g., 1314).
- Single Channel Flickering: Electromagnetic interference. Route shielded twisted pair cables away from VFDs and verify shield grounding.
- Mechanical Contact Failure: Oxidation on low-frequency switches. Measure contact resistance; consider upgrading to gold-plated sensors if action is infrequent.
- No Power / Dead LEDs: Blown input fuse or missing 24V feed. Measure L+ and M terminals for exactly 24VDC ±10%.
- Intermittent Comm Loss: Backplane seating issue. Reseat the module firmly and inspect the IO BUS pins for corrosion.
Application Scenarios & Pain Points
- Offshore ESD Systems: Salt spray and vibration destroy standard relays. This module’s solid-state design and IP20+ rating survive harsh marine environments.
- Chemical Reactor Protection: False trips cost millions. The 2oo3 (two-out-of-three) voting logic prevents unnecessary shutdowns while maintaining SIL3 integrity.
- Power Generation Turbines: Millisecond-level overspeed detection is critical. The 8 ms response time guarantees precise mechanical protection.

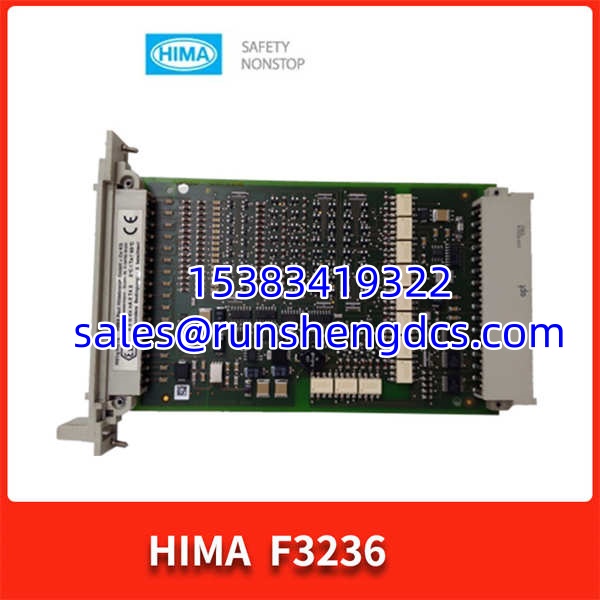

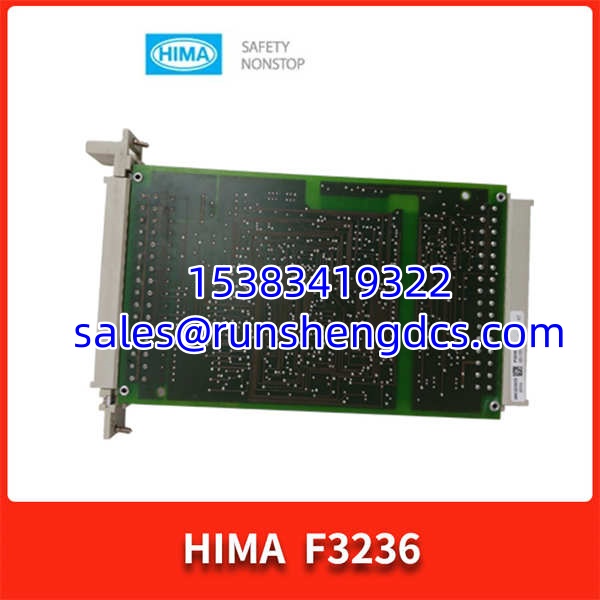

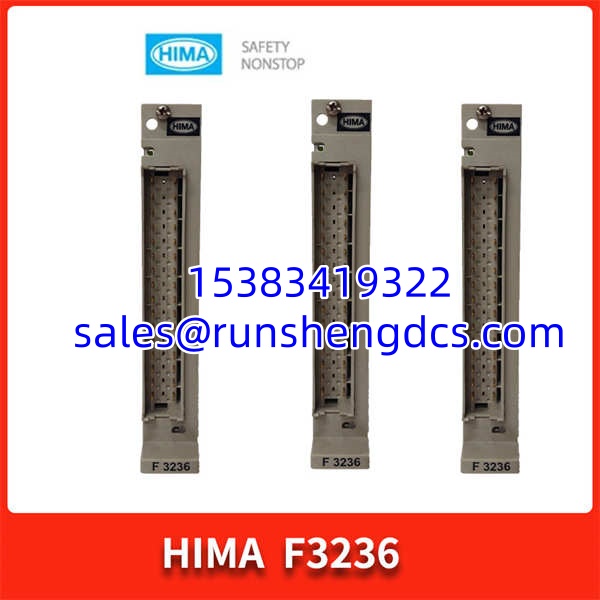

HIMA F3236
Compatible Replacement Models
- ✅ Drop-in Replacement: HIMA F3236 (Exact match). No logic changes required.
- ⚠️ Software Compatible: HIMA F3225 (8-channel variant). Requires recompiling logic to map the missing 8 channels; same rack footprint.
- ❌ Hardware Incompatible: Non-HIQUAD modules (e.g., standard F-series). Different backplane bus architecture. Will not physically mate or communicate.
