Description
Key Technical Specifications
- Model Number: VMIVME-4140-001
- Manufacturer: GE Fanuc (VMIC)
- Series: VMEbus Analog I/O
- Channels: 32 Independent Analog Outputs
- Resolution: 12-Bit DAC per Channel
- Output Current: Max 10 mA per channel (Source/Sink at ±10 V)
- Voltage Ranges: Software-selectable Unipolar (0-10V) or Bipolar (±10V)
- Output Impedance: 0.82 Ω (Typical)
- Interface: VMEbus Rev.C Standard
- Form Factor: 6U Single Slot Eurocard
Functional Role & Application Analysis
The GE VMIVME-4140-001 is a high-density analog output module designed for VMEbus systems requiring precise signal generation. It solves the challenge of driving multiple analog actuators from a single slot. Each of the 32 channels has a dedicated 12-bit DAC, eliminating cross-channel interference. The board supports both random updates and synchronous updates via software or external TTL triggers, making it ideal for coordinated control tasks.
This module handles the heavy lifting in environments where signal integrity matters. It features built-in auto-calibration and self-test routines that run on system reset or via software command. Calibration coefficients are stored in RAM and applied automatically. The front panel provides BNC access to the internal reference voltage, allowing manual fine-tuning when extreme precision is required. Output channels can be disconnected from field wiring for offline testing, preventing accidental actuator movement during diagnostics.
Typical use cases include:
- Steel Mill Process Control: Driving servo valves and hydraulic actuators in high-temperature, high-vibration rolling mill environments.
- Automated Test Equipment (ATE): Generating precise analog stimulus signals across dozens of test points simultaneously.
- Power Plant Control Systems: Providing analog setpoints to turbine governors and boiler feedwater valves in legacy VME-based DCS platforms.
- Legacy System Maintenance: Replacing failed analog output boards in aging GE Fanuc VMIC systems where OEM supply has ended.
Our Quality Standard & Testing Process
A failed analog output board in a steel mill or power plant means lost production. We do not ship untested boards. Every VMIVME-4140-001 undergoes a multi-stage validation process that replicates actual operating conditions before it leaves our facility.
- Visual & Component Inspection: Technicians inspect the PCB for cold solder joints, capacitor leakage, and connector wear. We verify the dual DC-DC converters that generate isolated ±15V analog power are functioning within spec.
- Live System Test: The board is installed in a live VMEbus test chassis and burned in for extended operation. We verify backplane communication, register read/write, and interrupt generation.
- Full-Function Diagnostics: We exercise all 32 DAC channels across every selectable voltage range. Auto-calibration is triggered and verified. Self-test status registers are checked for fault flags. Output impedance and short-circuit protection are validated.
- Warranty Backing: Only boards passing all tests ship with our 12-month warranty. We include test data so your team can verify baseline performance upon receipt.

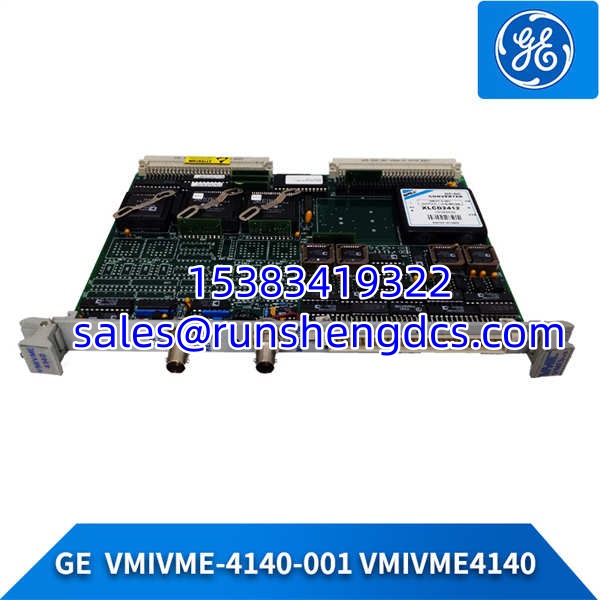

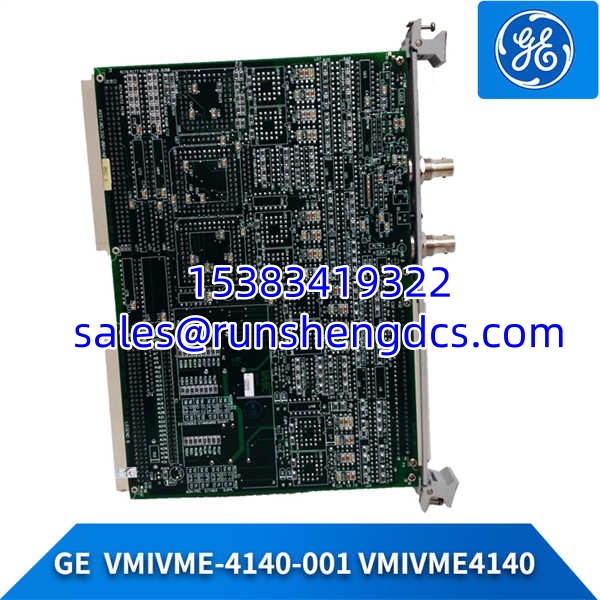

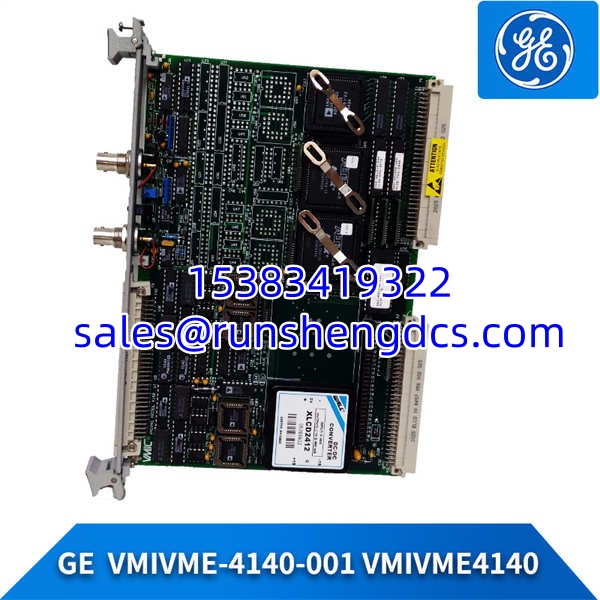

GE-VMIVME-4140-001-VMIVME4140
Compatibility & Migration Paths
VMEbus boards have configuration details that will bite you if ignored. The VMIVME-4140-001 uses 29 jumpers to set base address, address mode, and access privileges. Installing a board with the wrong jumper settings guarantees a non-functional system.
- Firmware/Hardware Revisions: Confirm your VME CPU board supports the VMIVME-4140-001. Check the Board ID Register ($2A00 = 32 channels) to verify the controller recognizes the module correctly.
- Required Components: This board uses standard P2/P3 VME connectors. Verify your backplane pinout matches. The front panel uses either discrete wire or IDC mass-terminal connectors—confirm which your field wiring supports.
- Replacement & Alternatives: The VMIVME-4140-001 is the 32-channel variant. If your application requires fewer channels, verify whether a lower-density variant exists in your system documentation. Do not assume plug-and-play without checking jumper maps.
- Get Expert Help: Send us a photo of your existing board’s jumper configuration and system slot assignment. Our technical team will verify compatibility and provide the correct jumper map before you order.
