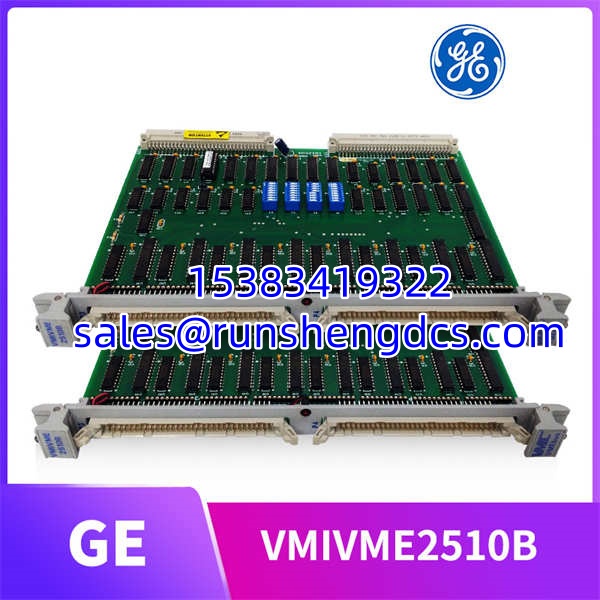

Description
Key Technical Specifications
- Model Number: VMIVME-2510B
- Manufacturer: General Electric (VMIC)
- Series: VMEbus I/O Modules
- Module Type: Digital Input/Output Board
- Bus Compatibility: VMEbus Specification Compliant
- I/O Organization: 8 Ports, 8-Bits Wide (64-Bit Total)
- Signal Type: TTL (Transistor-Transistor Logic)
- Sink Capability: 64 mA per channel
- Data Transfers: Supports 8-, 16-, and 32-bit transfers
- Connectors: Dual 64-Pin DIN41612 Connectors
- Built-in Test: BIT Logic for Fault Detection and Isolation
- Operating Voltage: 24 VDC
Functional Role & Application Analysis
The GE VMIVME-2510B is a high-speed digital interface designed for VMEbus-based control systems. Its primary role is to bridge the VME backplane with external TTL-level field devices. It provides eight independently programmable 8-bit ports. Each port can be configured as input or output via software. This flexibility allows a single board to handle mixed signal requirements without hardware changes.
This module solves the problem of fast, deterministic digital I/O in legacy VME architectures. It features 64 mA sink capability, allowing it to drive relays, optocouplers, and logic gates directly. The built-in test (BIT) logic is critical for high-availability systems. It allows the host CPU to read back output states in real-time or offline test mode. This enables automatic fault detection and isolation without physical probing.
Typical use cases include:
- VME-Based Test Equipment: Interfacing digital stimulus and capture signals in automated test systems.
- Industrial Process Control: Reading TTL-level sensor states and driving discrete actuators in manufacturing lines.
- Embedded Computing: Expanding digital I/O capacity for VME-based single-board computers and controllers.
- Legacy System Maintenance: Replacing failed I/O boards in aging VMEbus installations to prevent unplanned downtime.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed I/O board in a VME system can halt an entire test cell or production line. We have established a rigorous, multi-stage testing process to ensure every VMIVME-2510B we ship is 100% functional.
- Visual & Component Inspection: All parts undergo professional cleaning and detailed visual inspection. We check for physical damage, corrosion, or compromised components on the PCB.
- Live System Test: The module is installed in a live VMEbus test chassis. We run it for a minimum of 24 hours to verify continuous operation, backplane communication, and thermal stability.
- Full-Function Diagnostics: We exercise all 64 TTL lines in both input and output modes. We verify sink current capability, BIT register readback, and 8/16/32-bit transfer integrity.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and lifetime technical support.

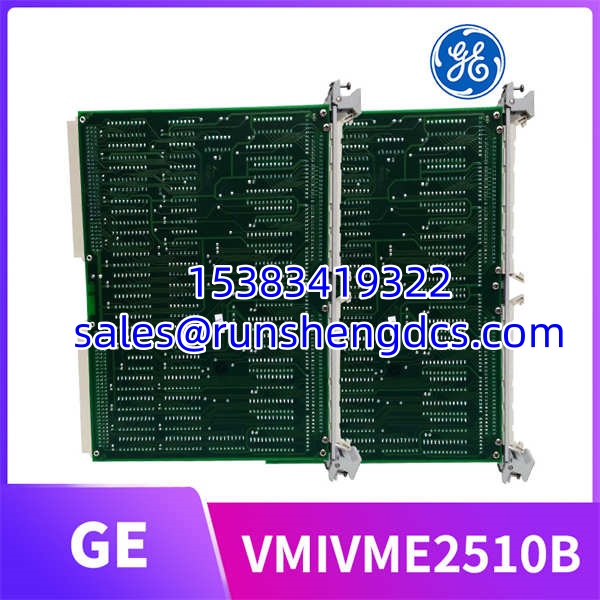

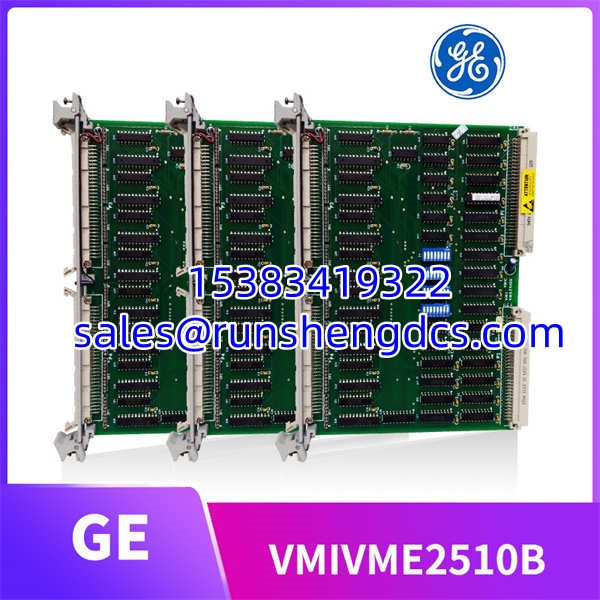

GE-VMIVME2510B
Compatibility & Migration Paths
To ensure this VMIVME-2510B is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly downtime.
- Address DIP Switches: The board uses DIP switches for address decoding. You must configure these to match your existing system’s I/O map. Incorrect switch settings will cause bus conflicts or unresponsive channels.
- Connector Compatibility: This module uses dual 64-pin DIN41612 connectors. Verify your backplane and mating cables match this standard. Some VME variants use different pinouts.
- Replacement & Alternatives: The VMIVME-2510B is functionally equivalent to the VMIVME-2510. The “B” revision includes minor improvements. If you need open-collector outputs instead of standard TTL, consider the optional open-collector variant.
