Description
Key Technical Specifications

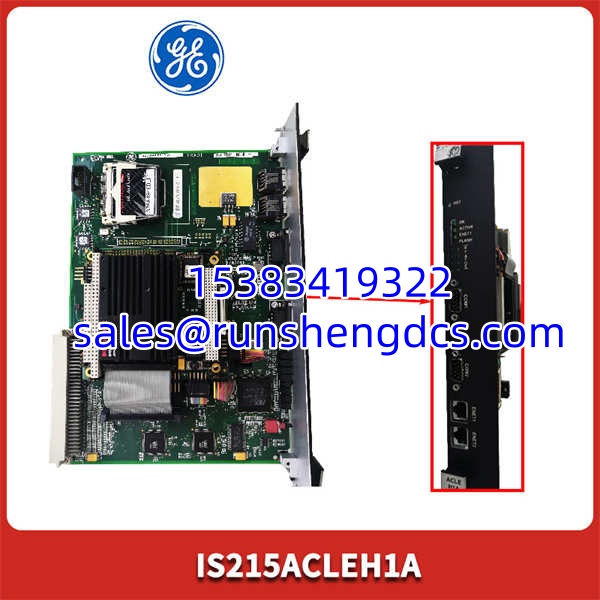

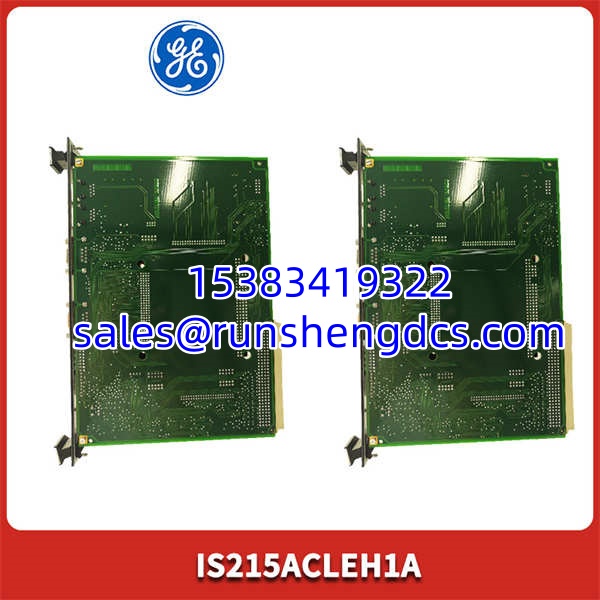

- Model Number: IS215ACLEH1A
- Manufacturer: GE Industrial Systems. Series: EX2100 Excitation Control System
- Module Type: Application Control Layer (ACL) Microprocessor Controller
- Form Factor: Dual Half-Slot Module
- Communication Interfaces: Dual Ethernet Ports, PCI Controller, RS-232/RS-485
- Processor Architecture: PowerPC 604e / 32-bit RISC
- Firmware Support: Integrated BIOS for hardware initialization and serial OS loading
- Status Indicators: Active, OK, ENET, Status, and Flash LEDs
- Mounting Location: EX2100 Control Rack or Innovation Series Drive
- Technical Reference: GEI-100434 Application Control Layer Module Manual
Functional Role & Application Analysis
The GE IS215ACLEH1A serves as the central processing brain within the EX2100 excitation control architecture. As the primary Application Control Layer (ACL) module, it executes complex control algorithms, manages high-speed data communication across the IsBus and Ethernet networks, and handles human-machine interface (HMI) tasks.
This board represents the first generation of ACL modules equipped with a PCI controller and dual Ethernet ports, significantly enhancing data throughput and system integration capabilities. By centralizing these critical processing tasks, the IS215ACLEH1A ensures precise regulation of generator excitation systems while providing robust fault diagnostics and redundant communication pathways for mission-critical power generation facilities.
Typical use cases include:
- Generator Excitation Control: Acting as the primary controller for managing voltage regulation and reactive power in power generation plants.
- Industrial Automation: Executing complex control logic and data acquisition for heavy industrial processes in oil, gas, and chemical facilities.
- Legacy System Maintenance: Replacing obsolete or failed ACL modules in existing EX2100 racks to restore critical plant operations.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed controller in an excitation system can lead to catastrophic generator damage. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional.
- Visual & Component Inspection: All boards undergo professional cleaning and high-magnification inspection to verify no physical damage, corrosion, or compromised solder joints.
- Live System Test: The module is installed in a live EX2100 test rack and run for 24 hours to verify continuous operation, BIOS initialization, and backplane communication.
- Full-Function Diagnostics: We test both Ethernet ports, verify PCI controller functionality, and confirm all status LEDs respond correctly to simulated CPU memory access and system states.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.
GE IS215ACLEH1A
Compatibility & Migration Paths
To ensure this IS215ACLEH1A is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly downtime during installation.
- Rack & Drive Compatibility: You must confirm your system uses either an EX2100 control rack or an Innovation series drive. This dual half-slot module will not fit standard single-slot configurations.
- Software & BIOS Verification: Ensure your system software is compatible with the integrated BIOS functions, particularly if you rely on serial loading for the operating system.
- Replacement & Alternatives: The IS215ACLEH1A is the foundational ACL module for this series. If your system requires higher assembly levels or additional components, verify the exact suffix requirements against the GEI-100434 manual.
- Get Expert Help: Unsure about your rack configuration or software compatibility? Contact our technical team today for a free compatibility check.
