Description
Key Technical Specifications
- Input Voltage: 2 to 240 V AC/DC
- Logic Conversion: Converts inputs to 24 VDC logic signals
- Control Inputs: 8 Configurable Plugs (CI1PL to CI8PL)
- Control Outputs: 7 Low-Voltage C-Type Relay Contacts
- Relay Specs: Low voltage, low current, 3 terminals each
- Signal Transfer: LAN, NTB/3TB, and Drive Control Boards
- Turn-On Threshold: 6 V, 0.5 mA peak AC/DC
- Turn-Off Threshold: 6 V, 0.5 mA peak AC/DC
- Dimensions: 4.2 cm x 3.6 cm
- Weight: 1.2569 kg
- Hardware Adjustments: None (No adjustable hardware on board)
Product Introduction
You are troubleshooting a GE drive cabinet at 3 AM, and the operator says the machine won’t start because a safety interlock is open. The 531X307LTBAJG1 is the exact board sitting between your main drive controller and those physical pushbuttons, indicator lights, and contactors. It acts as the physical gateway, taking raw 2-240V AC/DC signals from the field and converting them into clean 24VDC logic the main board can actually understand.
This specific G1 variant gives you eight programmable control input plugs and seven low-voltage relay outputs. It’s a passive interface, meaning there are no adjustable pots or dip switches on the board itself. Honestly, when this board fails, it’s usually because someone wired a 240VAC line directly to a terminal without checking the G1 vs G2 compatibility. It handles the dirty electrical work so your expensive drive control board doesn’t have to.
Troubleshooting Quick Reference
- Input Not Registering | G1/G2 Mismatch | High (70%) | Check if board is G1 or G2 variant | G2 does not support AC inputs or 8PL connectors; swap board
- No Relay Click | Missing Pilot Signal | Medium (50%) | Measure voltage at relay coil terminals | Verify high-voltage pilot contacts are activating correctly
- Intermittent Faults | Capacitive Coupling | Medium (40%) | Check I/O ribbon cable routing | Separate I/O cables from high-voltage power lines immediately
- Logic Signal Dead | Threshold Failure | Low (20%) | Measure input at IN1-IN8 terminals | Verify signal exceeds 6V/0.5mA peak threshold
- Board Not Seated | Backplane Connection | Low (15%) | Inspect edge connector for corrosion | Reseat LTB; check NTB/3TB terminal board mating

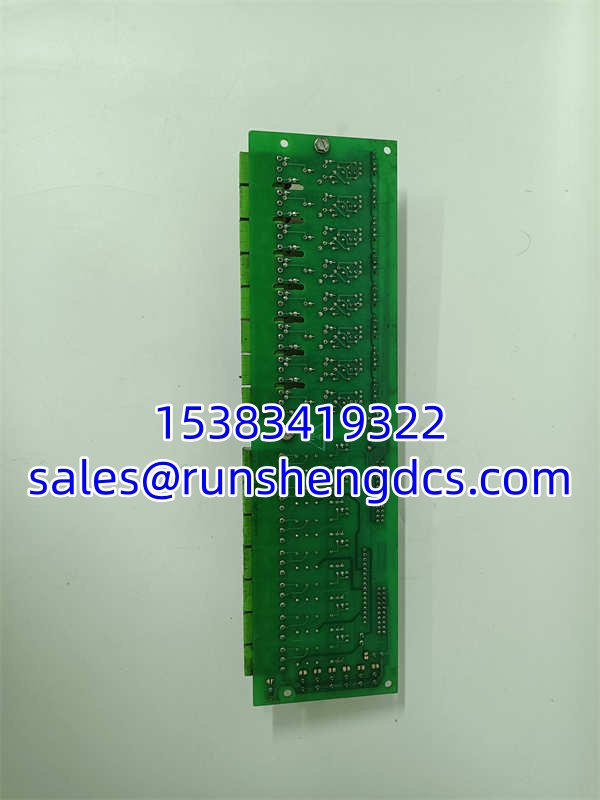

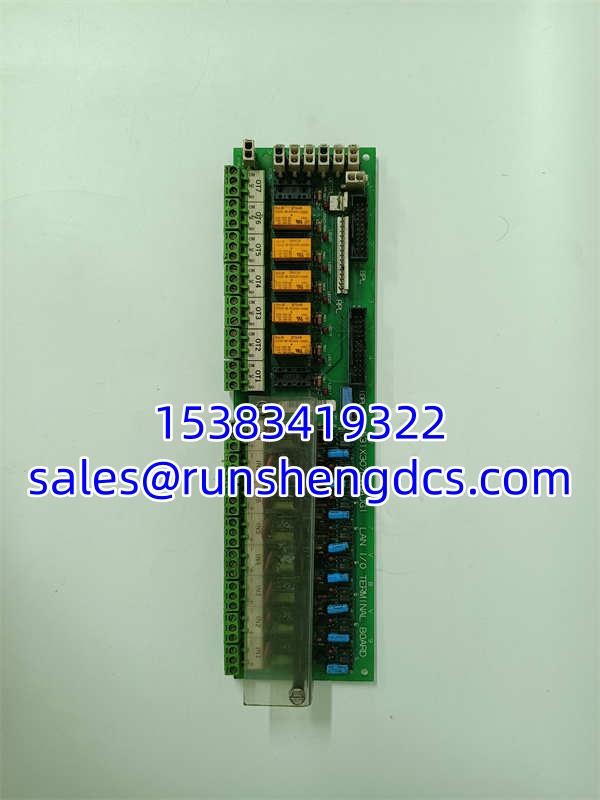

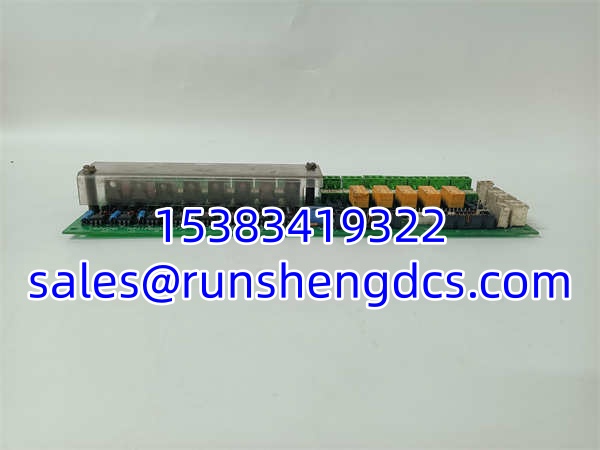

GE 531X307LTBAJG1
Application Scenarios & Pain Points
- Turbine Control Cabinets: High electrical noise from generators. Standard PLC inputs get fried by transients. This board takes the hit, converting harsh field signals to safe 24VDC logic.
- Drive Interlock Circuits: Safety relays require fast, reliable contact. The 7 C-type relays provide isolated switching, preventing ground loops from tripping the main drive.
- Retrofit Projects: Upgrading old analog drives. The 2-240V AC/DC input range means you don’t have to rewire 20-year-old field panels to 24VDC.
Compatible Replacement Models
- ✅ Drop-in Replacement: 531X307LTBAJG1 (Exact match. Verify G1 vs G2 suffix. No config change.)
- ⚠️ Software Compatible: 531X307LTBAJG2 (G2 variant. No 8PL connectors. AC inputs disabled. Requires rewiring to IN1-IN8 terminals only.)
- ❌ Hardware Incompatible: 531X307NTBAJG1 (NTB Terminal Board. Different form factor and pinout. Do not force-install.)
