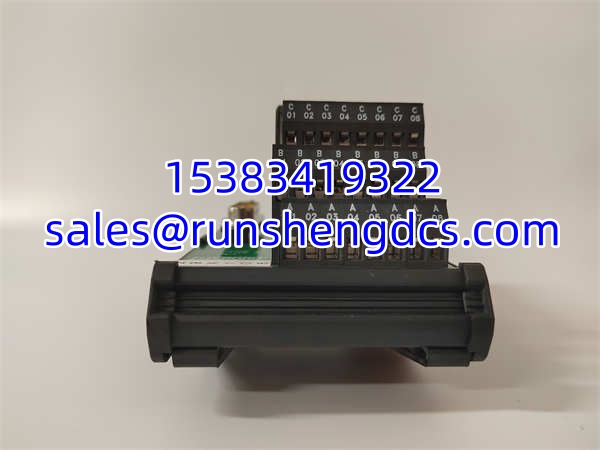

Foxboro P0916AA | DCS I/O Module, I/A Series

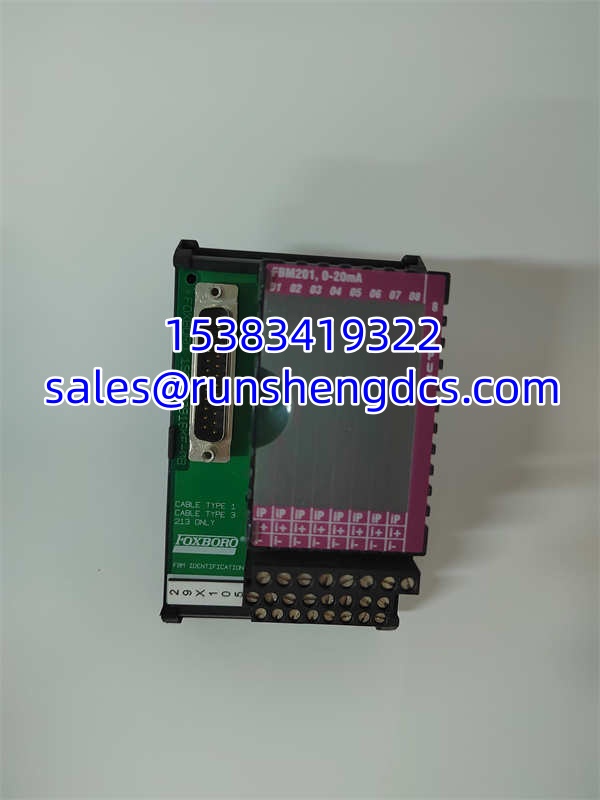

Foxboro P0916AA | DCS I/O Module, I/A Series - Image 2
Foxboro P0916AA | DCS I/O Module, I/A Series - Image 3

Foxboro P0916AA | DCS I/O Module, I/A Series

  • Model: P0916AA
  • Brand: Foxboro (Schneider Electric / ABB Legacy)
  • Series: I/A Series DCS
  • Core Function: Serves as the physical interface and wiring termination base for I/A Series field bus modules.
  • Type: I/O Terminal Board / Wiring Base
  • Key Specs: Direct FBM201 Mounting, Multi-Channel I/O Routing, Industrial Grade
Get a Quote
Category: SKU: FOXBORO P0916AA
Phone: +86 15383419322
Email: [email protected]
WhatsApp: +86 15383419322
WhatsApp QR Code
Brand:

Description

Key Technical Specifications

  • Base Function: Field Wiring Termination & Signal Routing
  • Primary Module Compatibility: FBM201 (and select FBM series)
  • Mounting Style: I/A Series Node Backplane / DIN Rail
  • Wiring Type: Screw Clamp / Spring Terminal (Verify specific rev)
  • Operating Temp: -10°C to +70°C (G3 Environment)
  • Max Wire Gauge: Typically 14 AWG to 22 AWG
  • Signal Types: Discrete, Analog, HART (Dependent on mated FBM)
  • Material: High-Temp Thermoplastic, Copper Alloy Contacts
  • Standards: IEC 61131-2, UL Listed, CE Marked



Product Introduction

Field wiring failures in legacy DCS systems rarely happen inside the controller; they happen at the terminal block where corrosion, vibration, and thermal cycling destroy connections. The P0916AA is the unsung hero of the I/A Series architecture, acting as the physical bridge between the messy field cables and the expensive FBM201 electronics module.

Replacing a fried terminal board is cheap compared to replacing an FBM. The P0916AA routes signals directly to the mating module without intermediate wiring, eliminating point-of-failure crimps. Rated for -10°C to +70°C in G3 environments, it handles the thermal abuse of panel enclosures. Bottom line — never reuse a 20-year-old terminal board when swapping an FBM. The copper is fatigued.

QA/QC Transparency SOP

  1. Intake & Origin Verification: Visual inspection for cracked thermoplastic, stripped screw threads, or carbon tracking. We verify the P0916AA revision against the FBM201 mating list to prevent mechanical fitment issues.
  2. Live Functional Testing: Mated with a known-good FBM201 on a live I/A Series test rack. We inject 24V DC and 4-20mA signals through every channel and verify zero voltage drop across the terminal contacts.
  3. Electrical Parameter Tests: Megger test at 500V DC between channels and ground to confirm insulation integrity >100 MΩ. Continuity verified on every screw-to-backplane path using a 4-wire Kelvin measurement.
  4. Firmware/Config Verification: N/A (Passive hardware). We verify mechanical latch engagement and backplane connector pin alignment under magnification. Bent pins = immediate scrap.
  5. Final QC & Anti-Static Packaging: All screws torqued to spec, terminals cleaned with contact-safe solvent. Sealed in ESD bag with silica gel, labeled with test date and tech ID. No bare-hand handling.



Field Engineer Gotchas

  • FBM Mating Compatibility: P0916AA is NOT universal. It pairs with FBM201. Slapping it onto an FBM202 or FBM237 will physically fit but misroute signals. War story: Tech swapped a terminal board during a midnight outage, assumed “P0916” meant any P0916. Blew two FBM channels on startup. Read the datasheet.
  • Stripped Terminal Screws: These boards are 20+ years old. The screws are soft. If you feel resistance, STOP. A stripped screw means you can’t torque to spec, and that channel will arc over in 6 months. Replace the board.
  • Backplane Connector Pins: The 96-pin (or similar) backplane connector is fragile. Pushing the FBM down at an angle bends pins. Blunt warning: Align perfectly vertical. Hand-pressure only. If it doesn’t seat easily, pull it back out and check for debris. Forcing it destroys the board.
  • ESD During Swap: The terminal board itself is passive, but the FBM201 mounted on it is ESD-sensitive. Ground yourself before touching the assembly. I’ve seen static from a tech’s glove fry the FBM during a “simple” terminal swap.
FOXBORO P0916AA

FOXBORO P0916AA

Application Scenarios

  • Refinery Crude Unit Upgrades: 30-year-old I/A Series nodes with original P0916AA boards showing terminal corrosion. Hot-swap to new surplus during planned turnaround without controller downtime.
  • Chemical Reactor Loop Tuning: Analog input channels drifting due to high-resistance terminal contacts. Replace P0916AA, re-calibrate 4-20mA loop, restore accuracy to ±0.1%.
  • Power Plant BMS Retrofit: Legacy Foxboro DCS supporting boiler safety. Terminal boards replaced proactively during forced outage to eliminate arc-fault risk in high-vibration environment.



FAQ

  • No. The suffix denotes revision or specific FBM compatibility. P0916AC typically mates with FBM202. Verify your exact BOM before ordering.
  • Can I repair a cracked terminal block? No. Structural integrity is compromised. Arc tracking will follow the crack. Replace the entire board. Field epoxy fixes are a liability.
  • Does this board have any active electronics? No. It’s a passive interconnect. All signal conditioning happens in the FBM. If you’re seeing signal issues, test the FBM first, then the terminal board.
  • What torque spec for terminal screws? Typically 0.5 Nm to 0.7 Nm. Verify with the I/A Series wiring manual for your specific rev. Over-torque strips threads; under-torque causes hot spots.
  • Are these still manufactured by Schneider? Officially discontinued. Surplus and refurbished stock is the primary supply channel. Lead times vary. Plan ahead for outages.
  • Can I use this with third-party FBMs? No. The backplane connector and signal routing are proprietary to Foxboro I/A Series. Third-party modules use different terminal boards.
  • Remove the FBM, apply known voltage to field side terminals, measure at backplane connector pins. Any resistance >0.5Ω or intermittent connection = bad board. Don’t guess.
