Description
Key Technical Specifications
- Model Number: IPM2-P0904HA
- Manufacturer: Foxboro. Series: I/A Series 200 Series Baseplates
- Input Voltage: 24 VDC Nominal (18–32 VDC operating window)
- Output Type: Regulated DC to Baseplate Bus
- Redundancy Support: A/B Redundant Pair Configuration
- Status Indication: Front Panel LED Status Indicators
- Operating Temperature: 0°C to +55°C (Typical cabinet ambient)
- Form Factor: Compact Plug-in Module (< 0.5 kg)
- Process I/O: None (Dedicated Power Supply Function)
- Communication Interface: None (Hardware power conditioning only)
Functional Role & Application Analysis
The IPM2-P0904HA serves as the critical power conditioning backbone for the Foxboro I/A Series Distributed Control System. It solves the fundamental engineering challenge of providing clean, stable, and regulated DC power to Fieldbus Modules (FBMs) mounted on 200 Series baseplates. By converting raw 24VDC input into a regulated bus voltage, this module ensures that sensitive I/O cards operate reliably even when facility power fluctuates or experiences transient noise.
Engineers specify the IPM2-P0904HA when deploying high-availability control systems. Its native support for A/B redundant pairing eliminates single points of failure at the power distribution level. During operation, one module carries the full load while the other remains in standby; if the active module fails, the redundant unit seamlessly assumes the load without interrupting process control. The front-panel LEDs provide immediate visual health status, allowing maintenance teams to identify power issues during routine cabinet inspections without connecting diagnostic software.
Typical use cases include:
- Oil & Gas Refineries: Deployed in I/O cabinets requiring redundant power to maintain safety and process control during electrical disturbances.
- Power Generation Plants: Integrated into balance-of-plant control cabinets housing mixed analog and digital FBMs for boiler and turbine monitoring.
- Water Treatment Facilities: Used in space-constrained panels where reliable, low-noise power is essential for precise instrumentation and valve control.
Our Quality Standard & Testing Process
We understand that a failed power module can take down an entire I/O baseplate, causing widespread process disruption. We have established a rigorous testing process to ensure every IPM2-P0904HA we ship is 100% functional and meets original Foxboro specifications.
- Visual & Component Inspection: Every board undergoes professional cleaning and microscopic inspection. We verify solder joints, check for electrolytic capacitor degradation, and confirm the plug-in connectors show no pin deformation or oxidation.
- Live System Test: The module is installed in a live Foxboro I/A Series test rack. It runs for 24 continuous hours under load to verify continuous operation, thermal stability, and stable bus voltage output.
- Full-Function Diagnostics: We apply variable input voltage across the 18-32VDC range and verify the regulated output remains within specification. We test front-panel LED indicators and validate overcurrent protection circuitry.
- Redundancy Verification: We test A/B load sharing and hot-swap capability to confirm seamless failover performance.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and lifetime technical support.

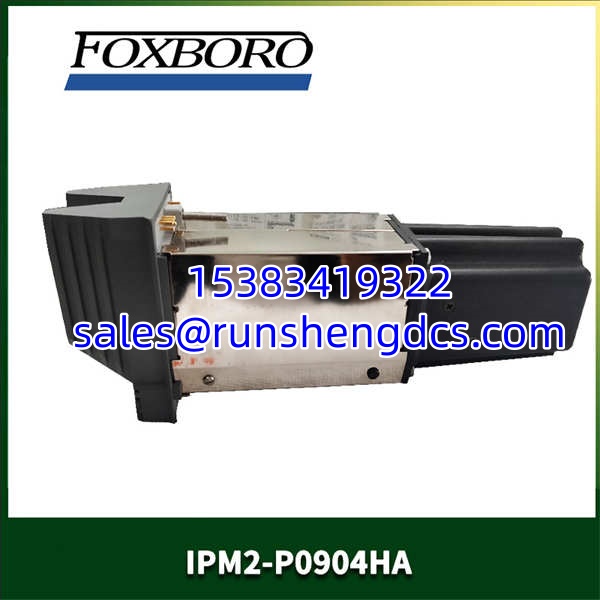

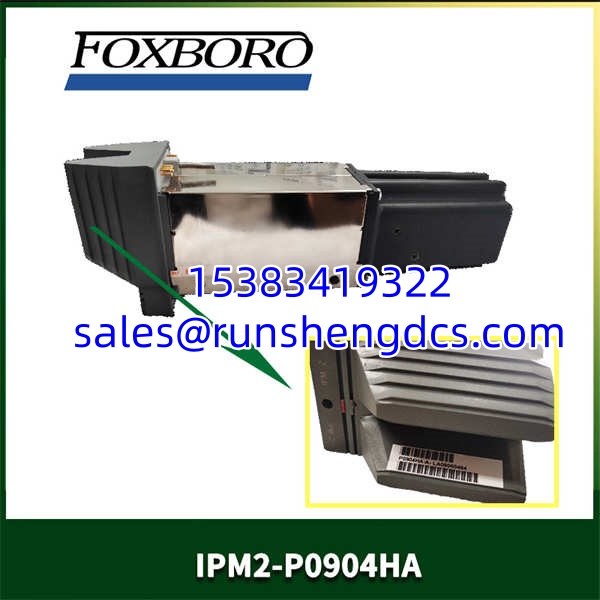

FOXBORO IPM2-P0904HA
Compatibility & Migration Paths
To ensure this IPM2-P0904HA is 100% compatible with your I/A Series system, you must check these key compatibility points. Failure to verify this is a common project risk.
- Baseplate Compatibility: The IPM2-P0904HA is designed exclusively for Foxboro 200 Series FBM baseplates. Verify your baseplate model before ordering. It will not fit older or newer baseplate generations.
- Redundant Pairing: When deploying in A/B configuration, both modules should be the same revision. Mixing revisions may cause uneven load sharing or alarm logic conflicts.
- Input Power Sizing: Confirm your 24VDC power supply is adequately sized to support the total load of all FBMs on the baseplate plus redundancy overhead. Undersized supplies will cause brownouts.
- Get Expert Help: Unsure about your baseplate compatibility or redundancy configuration? Contact our technical team today for a free compatibility check and power budget assessment.
