Description
Key Technical Specifications
- Model Number: FBM207 P0916PH
- Manufacturer: Foxboro. Series: I/A Series DCS
- Channel Count: 16 Isolated & Independent Channels
- Input Types: DC Voltage Monitor (15-60V) & Contact Sense
- Contact Sense Voltage: FBM207b: 24VDC | FBM207c: 48VDC
- Communication: Redundant 2 Mbps Module Fieldbus
- Filter/Debounce: Configurable (0, 4, 8, 16, 32 ms)
- Pulse Counting: No missing pulses from 0 to 250 Hz
- Logic 1 Threshold: 15 to 60 VDC (Voltage Monitor Mode)
- Logic 0 Threshold: 0 to 5 VDC (Voltage Monitor Mode)
Functional Role & Application Analysis
The FBM207 P0916PH is a foundational input interface module in the Foxboro I/A Series Distributed Control System. It solves the critical need for acquiring discrete field status signals while providing galvanic isolation to protect the control network. This module operates in two primary modes: as a DC voltage monitor for higher voltage signals (15-60VDC) or as a contact sense input for dry contacts powered by an internal 24V or 48V source.
Engineers specify the FBM207 P0916PH when they need reliable, configurable discrete input acquisition. Its configurable debounce filter is essential for filtering out mechanical switch bounce or electrical noise from long cable runs. The module communicates with its associated FCM or FCP via a redundant 2 Mbps fieldbus, ensuring data integrity even if one communication path fails. It acts as the definitive digital “eyes” for the DCS, converting physical switch states and voltage levels into accurate process data.
Typical use cases include:
- Motor Control Centers (MCC): Monitoring the run/stop/trip status of motor starters and circuit breakers across multiple MCC buckets.
- Valve Position Feedback: Acquiring open/closed limit switch signals from critical control valves in process lines.
- Safety Interlock Status: Verifying the state of permissive and interlock contacts before allowing a process sequence to start.
Our Quality Standard & Testing Process
We understand that a failed input module can blind operators to critical process conditions. We have established a rigorous testing process to ensure every FBM207 P0916PH we ship is 100% functional and meets original Foxboro specifications.
- Visual & Component Inspection: Every board undergoes professional cleaning and microscopic inspection. We verify solder joints, check for electrolytic capacitor degradation, and confirm the fieldbus connectors show no pin damage.
- Live System Test: The module is installed in a live Foxboro I/A Series test rack. It runs for 24 continuous hours to verify continuous operation, thermal stability, and stable communication with the FCP.
- Full-Function Diagnostics: We inject calibrated DC voltage and contact closure signals across all 16 channels. We verify logic state accuracy, test each debounce filter setting, and validate pulse counting functionality.
- Fieldbus Communication Test: We verify the module’s response to redundant fieldbus commands and confirm it correctly reports its diagnostic status to the controller.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and lifetime technical support.

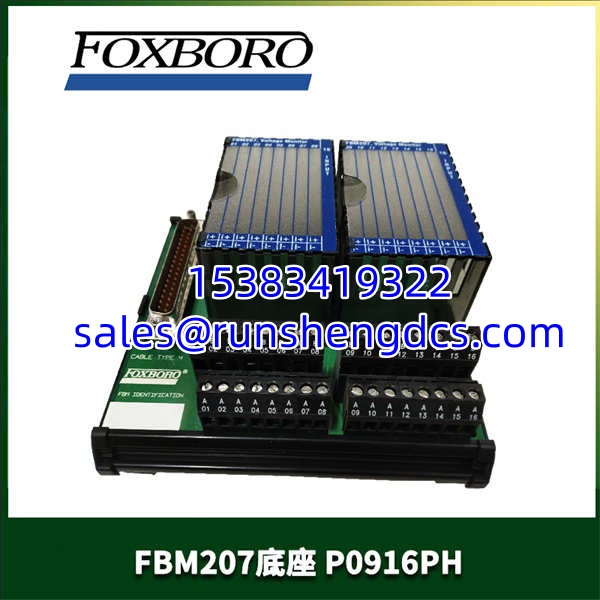

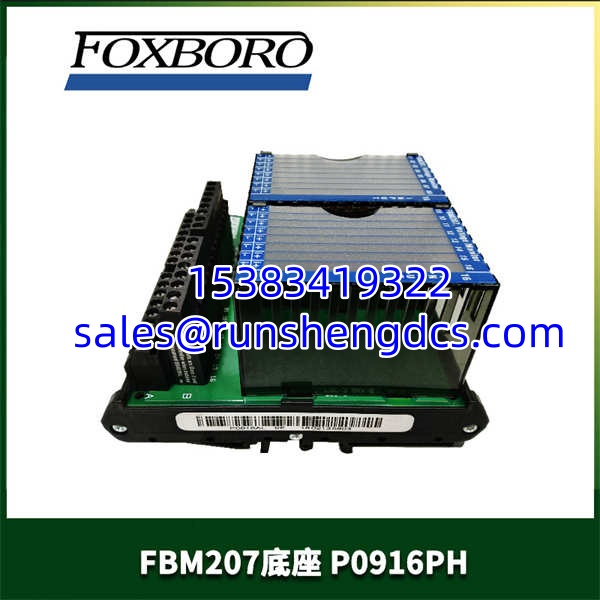

FOXBORO FBM207 P0916PH
Compatibility & Migration Paths
To ensure this FBM207 P0916PH is 100% compatible with your I/A Series system, you must check these key compatibility points. Failure to verify this is a common project risk.
- FBM207 Sub-Revision: The P0916PH base supports multiple sub-revisions (FBM207b, FBM207c). You must confirm whether your application requires 24VDC or 48VDC contact sense. Installing the wrong sub-revision will result in non-functional inputs.
- FCM/FCP Compatibility: Verify your associated Fieldbus Communication Module (FCM) or Fieldbus Control Processor (FCP) firmware supports the . Older FCPs may require a firmware upgrade.
- Baseplate & Connector: This module plugs into a specific I/O baseplate. Ensure your existing baseplate is the correct type for the and that the connector is undamaged.
- Get Expert Help: Unsure about the required sub-revision or FCP compatibility? Contact our technical team today for a free compatibility check and migration assessment.
