Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | A3120022-000 |
| Product Family | Emerson CSI 3120 |
| Device Type | Dual-Channel Bearing Vibration Monitor |
| Input Channels | 2 independent vibration channels |
| Sensor Compatibility | Proximity probes, velocity sensors (configuration-dependent) |
| Output Signals | Alarm relay, trip relay, 4-20 mA buffered output |
| Communication | Modbus RTU / serial (revision-dependent) |
| Power Supply | 24 VDC (typical) |
| Mounting | DIN-rail or rack-mount (system-dependent) |
| Operating Temperature | 0°C to +60°C (typical industrial range) |
| Typical Applications | Rotating machinery protection, compressor monitoring, turbine/pump vibration monitoring, predictive maintenance |
| Availability | New surplus, used, refurbished |
Product Introduction
The EMERSON A3120022-000 is a CSI 3120-series dual-channel bearing vibration monitor designed for continuous machinery protection in industrial environments. It accepts vibration signals from proximity probes or velocity sensors mounted on rotating equipment bearings, compares the measured vibration levels against configurable alarm and trip thresholds, and triggers relay outputs to alert operators or shut down equipment before catastrophic failure occurs.
This monitor is commonly deployed on critical rotating assets — centrifugal compressors, steam and gas turbines, large pumps, fans, and gearboxes — where bearing degradation is a leading indicator of impending failure. The dual-channel architecture allows a single module to monitor two bearing positions simultaneously, reducing panel space and wiring complexity. Buffered 4-20 mA outputs feed vibration data into the plant DCS or historian, while relay contacts can drive local alarms or trip circuits directly.

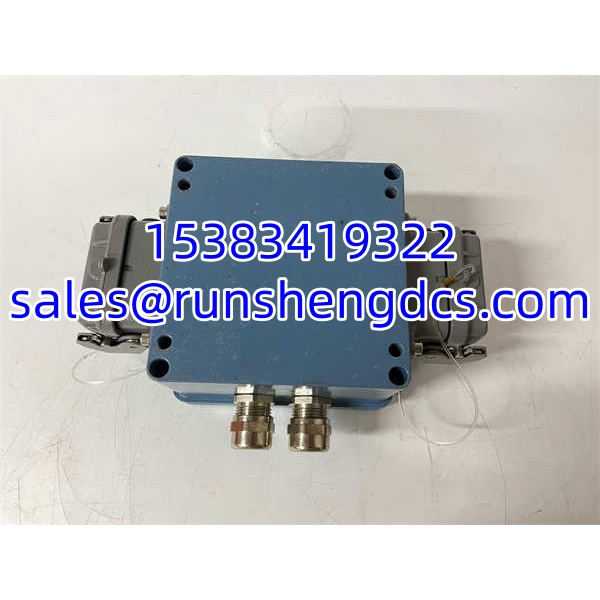

EMERSON A3120022-000
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm the physical label reads EMERSON A3120022-000 / CSI 3120. Photograph the front label, revision code, serial number, and connector face.
- Visual Inspection: Inspect DIN-rail or rack-mount clips, terminal blocks, communication ports, and PCB surface. Reject units with cracked connectors, corrosion, burnt components, or damaged terminal blocks.
- Power-Up Test: Apply 24 VDC in a controlled test fixture. Verify normal power-up sequence, LED indicators, and absence of fault codes.
- Channel Verification: Inject simulated vibration signals into both input channels. Confirm alarm and trip relay actuation at configured thresholds. Verify 4-20 mA output scaling matches input levels.
- Communication Check: Test Modbus RTU or serial communication where test equipment is available. Confirm register reads match channel status and vibration values.
- Final Packaging: Label with part number, revision, test status, and date. Pack in ESD-safe packaging with rigid support to prevent connector damage.
Field Engineer Gotchas
- Not a CPU or PLC module. Despite some surplus listings calling it a “CPU module,” the A3120022-000 is a vibration monitor, not a general-purpose controller. Do not attempt to use it as a PLC replacement.
- Channel configuration matters. The “-000” suffix may indicate a specific channel/input configuration. Verify that the unit matches your installed sensor types (proximity probe vs. velocity sensor) and channel count.
- Threshold settings are not factory-default universal. Alarm and trip thresholds must be configured to match your machine’s API 670 or ISO 10816 limits. A unit pulled from another application may have incompatible thresholds.
- Sensor compatibility is hardware-dependent. Proximity probe inputs require different excitation and scaling than velocity sensor inputs. Confirm the unit’s input type matches your installed sensors.
- Revision and firmware variation. Different revisions may support different communication protocols or relay configurations. Match the revision to your installed unit when replacing in a live system.

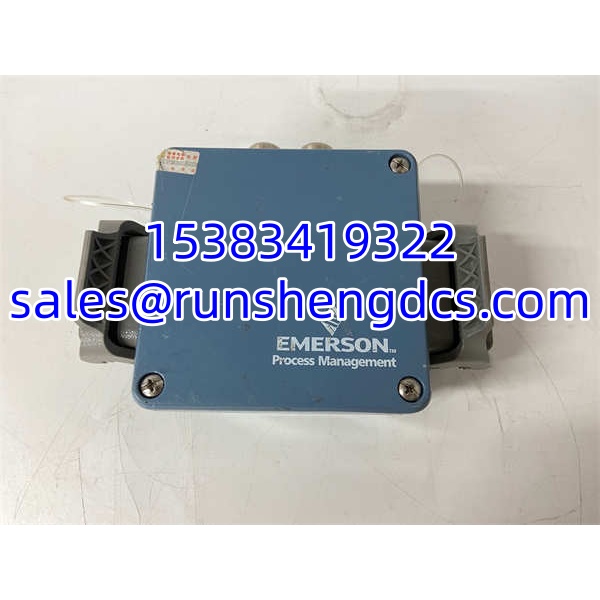

EMERSON A3120022-000
Application Scenarios
- Centrifugal compressor protection. A refinery compressor train uses CSI 3120 monitors on each bearing. A failed A3120022-000 is replaced to restore dual-channel vibration monitoring and trip protection.
- Steam turbine bearing monitoring. A power plant turbine’s vibration monitor trips on high vibration. The is swapped during a planned outage, restoring bearing protection on two critical positions.
- Large pump predictive maintenance. A chemical plant integrates CSI 3120 4-20 mA outputs into its DCS for trend analysis. A faulty monitor is replaced to restore continuous vibration trending.
- Gearbox condition monitoring. A mining operation uses dual-channel vibration monitors on critical gearbox bearings. A verified surplus restores monitoring capability without waiting for OEM lead times.
FAQ
It is an Emerson CSI 3120-series dual-channel bearing vibration monitor used for continuous machinery protection on rotating equipment.
Is it a CPU or PLC module?
No. Some third-party listings incorrectly describe it as a CPU module. It is specifically a vibration protection monitor with alarm/trip relay outputs and 4-20 mA analog outputs.
How many channels does it monitor?
Two independent vibration channels, allowing one module to monitor two bearing positions simultaneously.
What sensors does it support?
Typically proximity probes and/or velocity sensors, depending on the specific configuration. Verify input type against your installed sensors.
Is this module still in production?
It is a mature Emerson component. Availability is primarily through surplus and refurbished channels. Verify current Emerson lifecycle status for new deployments.
What should I check before buying?
Request photos of the Emerson label, revision code, terminal block configuration, and any test report. Confirm the input type (proximity vs. velocity) and whether the unit has been functionally tested.
