Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part number | 8610-FT-NA |
| System compatibility | Emerson PAC8000 I/O carrier and matching I/O modules |
| Hazardous rating | Class I, Division 2, non-arcing |
| Terminal type | Screw-clamp field wiring terminals |
| Mounting method | Snap onto PAC8000 carrier assembly |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Enclosure rating | IP20 (cabinet mounted only) |
| Mechanical feature | Module-specific keying to prevent wrong I/O insertion |
| Construction | Thermoplastic housing, non-arcing contact design |
| Compliance | UL HazLoc, CE |
Product Introduction
Many PAC8000 field failures trace back to damaged terminal assemblies, not the I/O module itself. Replacing the whole I/O module adds unnecessary cost and downtime. The 8610-FT-NA separates field wiring termination from the electronics, so technicians can swap only the terminal piece if screw terminals crack or corrosion sets in. It locks onto the PAC8000 carrier and mates with one corresponding PAC8000 I/O module.
It sits between field instrument cables and the PAC8000 I/O module. The mechanical keying physically blocks insertion of an incompatible I/O module, preventing wrong module wiring in classified areas. Field data shows typical service life of 12–15 years under continuous cabinet operation at 40 °C ambient. That life drops quickly if the cabinet runs above 55 °C or condensation forms on terminal screws. Bottom line — it is a simple mechanical-electrical interface, but wrong key selection creates a safety hazard in Div 2 zones.
QA/QC Transparency SOP
- Intake & Origin Verification: Match part number and molded key profile against Emerson drawings. Inspect housing for cracks, stripped screw bosses, or deformed locking clips. Units with melted plastic or terminal deformation get rejected.
- Live Functional Testing: Snap the 8610-FT-NA onto a validated carrier. Install the matching I/O module. Cycle module insertion and removal 10 times to confirm the latch retains tension. Check keying will block mis-matched I/O modules.
- Electrical Parameter Tests: Use a Fluke 87V to verify continuity across all terminal paths. Perform 500 VDC megger insulation test between field terminals and the carrier backplane. Reject any unit with leakage above 100 nA.
- Firmware/Config Verification: No firmware on this terminal assembly. Confirm paired I/O module is recognized by BIM after full assembly and power cycle.
- Final QC & Anti-Static Packaging: Blow loose dust from terminal cavities. Apply inspection label. Seal inside static shielding bag with desiccant. Pack in rigid cardboard for transit shock protection.
Field Engineer Gotchas
Key Profile Mismatch: 8610-FT-NA uses molded mechanical keys matched to specific I/O modules. A terminal with the wrong key will either refuse to seat or allow an incorrect module, violating Div 2 safety rules. One site tried substituting a different FT terminal; the mismatch created an unapproved combination and triggered a third-party audit finding.
Terminal Torque Overload: Over-tightening screw terminals splits the plastic housing. The damage often stays hidden until thermal cycling opens the connection. Use a torque screwdriver set to OEM specified value. I have seen three units fail after technicians used impact drivers on terminal screws.
Wiring Stray Conductive Debris: Metal wire strands trapped between terminals create intermittent shorts. This fault can pass initial power-up and fail only during cabinet vibration. Brush all loose strands away before closing the terminal cover.
Hot Swap Wiring Risk: The terminal snaps in while the rack remains powered, but field side wiring must be de-energized before touching terminals in Div 2 classified cabinets. Live field wiring removal can create arcs that violate the non-arcing rating.

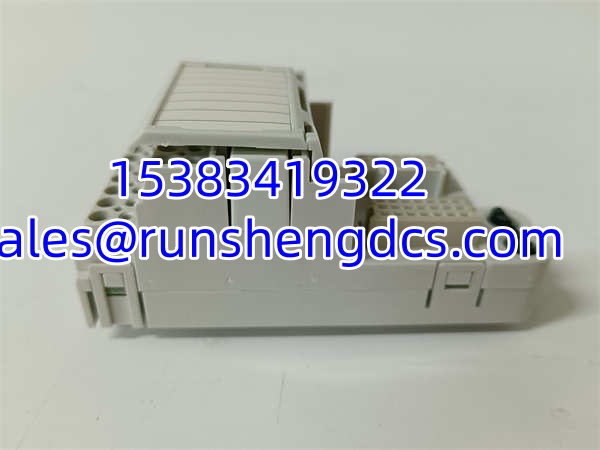

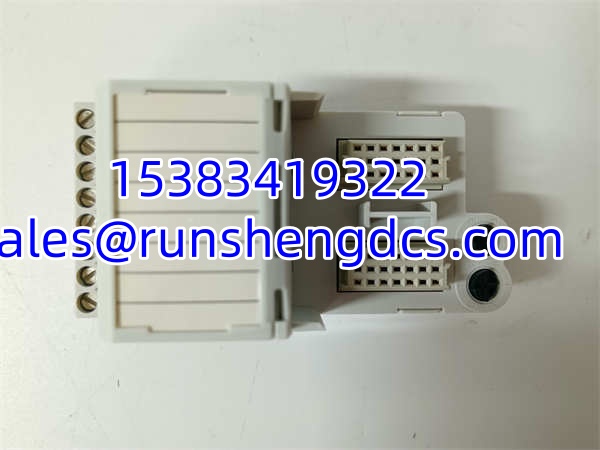

EMERSON 8610-FT-NA
Application Scenarios
Oil & gas wellhead control cabinets require Div 2 rated termination for pressure transmitters and solenoid valves. The 8610-FT-NA isolates field wiring from I/O electronics and meets area classification requirements.
Chemical plant remote I/O skids deploy for analog and discrete signals. Cabinet space is constrained, and technicians need to replace damaged terminals without pulling the entire I/O module.
Refinery utility monitoring racks use remote I/O for pump status and flow switches. High vibration levels stress screw terminals; spare 8610-FT-NA assemblies reduce planned maintenance time.
Case study: A natural gas compressor station had intermittent loss of pressure transmitter readings. I/O module diagnostics showed no fault. Visual inspection revealed cracked plastic on an 8610-FT-NA terminal from over-torqued field wiring. Replacing the terminal assembly and retorquing all field cables to spec cleared the fault. No recurrence over 14 months of continuous operation.
FAQ
Can I reuse the existing I/O module when replacing a damaged 8610-FT-NA? Yes, provided the I/O module itself has no physical damage or contamination. The terminal and I/O module are separate serviceable parts. Confirm key profile matches before assembly.
Does 8610-FT-NA work with all I/O modules? No. Each 8610-FT-NA has a unique mechanical key. It only mates with the I/O module designed for that key code. Cross-check Emerson catalog key tables.
Is this terminal assembly rated for Class I Division 1? No. It is non-arcing and approved for Class I Division 2 only. Do not deploy in Division 1 classified zones.
Can I mix different field terminals on the same carrier? Yes, as long as each terminal and paired I/O module uses the correct matching key. The carrier backplane accepts mixed I/O types. Keep total rack power budget within carrier limits.
What torque value should I use for field wire screws? Follow Emerson datasheet values. Typical range is 0.5–0.8 N·m. Over-torque fractures the plastic housing; under-torque causes high-resistance intermittent connections.
Will condensation damage this terminal? Condensation inside the IP20 cabinet can corrode screw terminals over time. Use a heated, sealed enclosure if dew point conditions exist. IP20 does not protect against liquid ingress.
Is the 8610-FT-NA still in active production? Emerson maintains it as a replacement spare for installed base. New builds often use newer I/O families. Lead times vary for factory direct orders. Verify lead time before project scheduling.
