Description
Key Technical Specifications
- Input Signal Type: RTD (Resistance Temperature Detector)
- Channel Count: 8 Points per Module
- Supported RTD Types: Platinum (Pt100), Nickel, Copper (verify via Ovation config)
- Wiring Configurations: 2-wire, 3-wire, and 4-wire RTD support
- Module Type: Electronic Module (EMOD)
- Diagnostics: Built-in channel open/short detection
- System Compatibility: Emerson Ovation DCS Platform
- Mounting Style: Ovation I/O Baseplate / Backplane
- Resolution: High-resolution A/D conversion for precise temperature profiling
- Power Configuration: System Powered
Product Introduction
Temperature control loops in a power plant or refinery live or die by the accuracy of the RTD input card. The EMERSON 5X00121G01 is an 8-channel analog input module built specifically to read resistance temperature detectors in the Ovation DCS environment. Sitting in the I/O base, it converts raw resistance changes into highly accurate temperature data for your PID controllers and safety logic.
Why do maintenance teams keep the 5X00121G01 on the shelf? Because a drifting RTD card can cause a boiler to overfire or a chemical reactor to run out of spec. This module supports multiple wiring configurations and features built-in diagnostics to instantly flag open circuits or shorted field wires. Bottom line—it is the critical bridge between your physical process temperature and your control system’s decision-making.
Troubleshooting Quick Reference
- Fault: Single channel reads max scale / open wire alarm | Cause: Broken RTD wire or bad terminal connection | Relevancy: 70% chance it’s field wiring | Quick Check: Measure resistance directly at the module terminal block | Fix: Repair field wiring or replace the RTD sensor
- Fault: Temperature reading is erratic or noisy | Cause: Poor shielding or ground loop | Relevancy: 20% chance it’s EMI/grounding | Quick Check: Verify RTD shield is grounded at the module end only | Fix: Reshield field cable or check for VFD interference nearby
- Fault: All channels reading incorrectly | Cause: Backplane power issue or module seating | Relevancy: 10% chance it’s module/base failure | Quick Check: Reseat the 5X00121G01 and check base voltage | Fix: Clean backplane pins or replace the electronic module

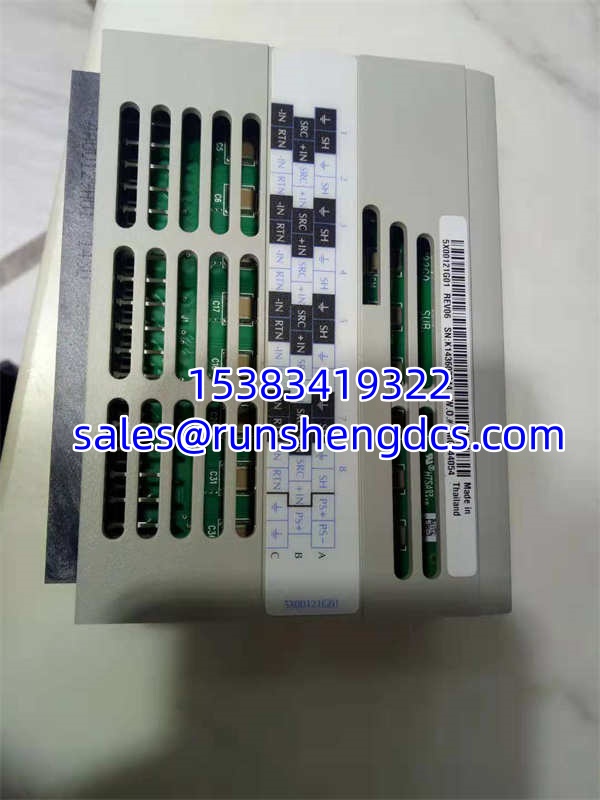

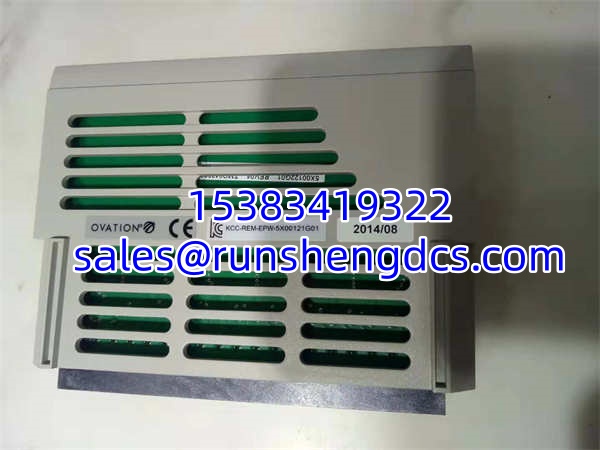

EMERSON 5X00121G01
Application Scenarios & Pain Points
- Thermal Power Generation: Monitoring bearing temps and steam headers. A noisy RTD card here causes false turbine trips during critical load ramps.
- Petrochemical Reactors: Exothermic process temperature profiling. Drift in a single channel ruins batch quality and risks runaway reactions.
- HVAC & Chiller Plants: Precise supply/return water temp tracking. Bad data leads to massive energy waste and equipment wear.
Real-world case: Controls engineer at a combined-cycle plant noticed a gas turbine bearing temp spiking randomly during the night shift. The Ovation historian showed the RTD card dropping data packets. Swapped the 5X00121G01 during a planned weekend outage. The spiking stopped immediately. Turns out the internal A/D converter was failing under ambient cabinet heat. Saved them from a forced turbine outage.
Compatible Replacement Models
- ✅ Drop-in Replacement: 5X00121G01 (Exact match. Ensure same hardware revision suffix. Cost varies based on surplus availability.)
- ⚠️ Software Compatible: 5X00119G01 (Functionally equivalent 8-ch RTD module. Same Ovation platform and base footprint. Requires verifying controller configuration parameters match the new module’s scaling.)
- ❌ Hardware Incompatible: 5X00070G04 (Thermocouple input card. Completely different signal conditioning. Do not attempt to substitute an RTD module with a TC card without rewiring the entire field panel.)
