Description
Key Technical Specifications
- Model Number: 1X00781H01L
- Manufacturer: Emerson
- Series: Ovation DCS / I/O Base
- Module Type: 24VDC Power Supply / I/O Base
- Output Voltage: 24 VDC
- Output Current: 10A
- Power Rating: 60W
- Mounting: DIN Rail
- Application: Chemical, Petrochemical, Power Generation DCS
- Condition: New Surplus / Legacy Industrial Equipment
Functional Role & Application Analysis

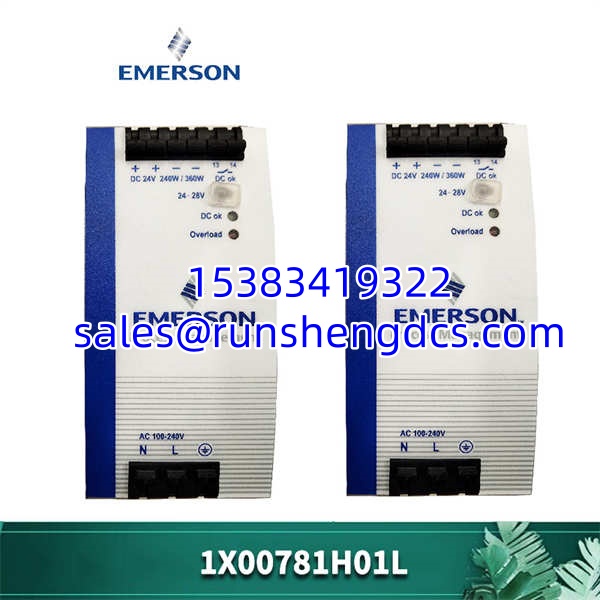

The Emerson 1X00781H01L is the 24VDC power backbone for Ovation I/O racks. It doesn’t just provide power; it acts as the base that field I/O cards plug into. This dual role makes it a single point of failure for an entire I/O segment. If this module dies, you lose every sensor and actuator connected to that base.
It delivers a clean, regulated 24VDC at 10 amps to power field devices and backplane logic. The DIN rail mount makes it easy to swap, but the real value is in its integration with the Ovation ecosystem. It’s designed to work seamlessly with Ovation I/O cards, ensuring proper voltage regulation and fault reporting back to the controller.
- Use Case 1: Powering and housing digital and analog I/O cards in Ovation DCS racks for power plant turbine and boiler control
- Use Case 2: Providing stable 24VDC field power for chemical process control loops in refinery and petrochemical applications
- Use Case 3: Critical maintenance and direct replacement in legacy Ovation installations where 1X00781H01L bases are currently deployed
Our Quality Standard & Testing Process
We understand that the cost of an unreliable power base is far greater than its purchase price. A failed 1X00781H01L can take down an entire I/O segment, causing uncontrolled process deviations. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection under magnification. We check for physical damage, capacitor leakage, trace corrosion, or compromised components on the PCB.
- Live System Test: The module is installed in a live Ovation test rack and run for 24 hours to verify continuous operation, thermal stability, and backplane communication.
- Full-Function Diagnostics: We apply a 10A load to verify 24VDC output stability, test voltage regulation under load, and confirm I/O card detection and fault reporting logic.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

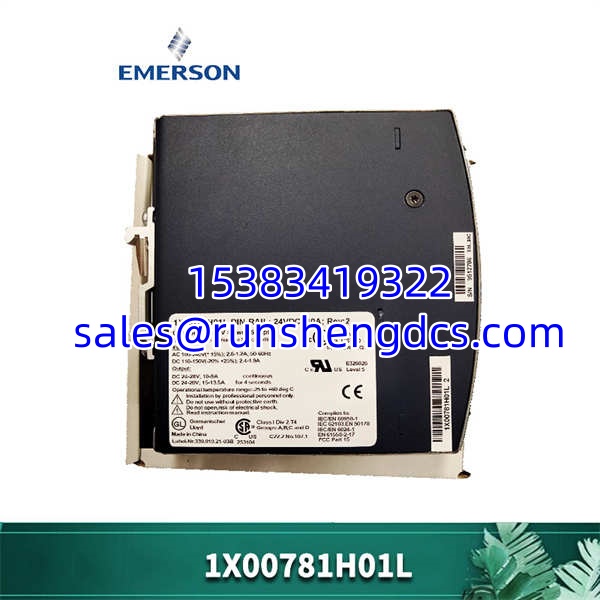

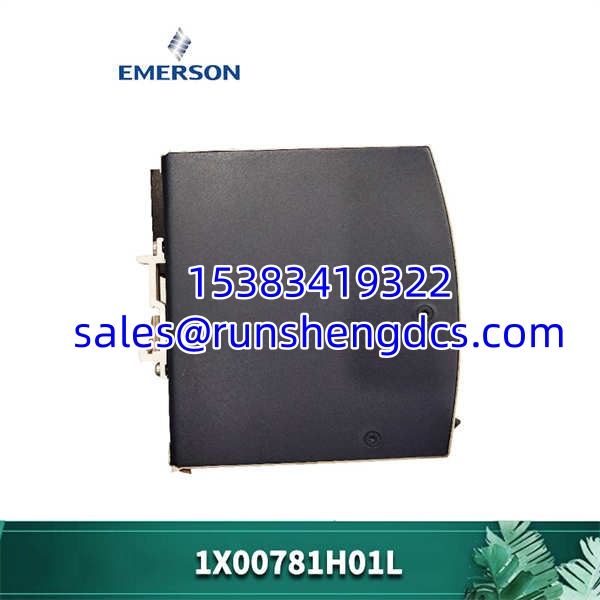

EMERSON 1X00781H01L
Compatibility & Migration Paths
To ensure this 1X00781H01L is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that causes extended I/O downtime.
- Hardware Revisions: You must confirm the physical form factor and backplane connector layout match your existing Ovation I/O base. Emerson has released multiple revisions, and mechanical fit is not always guaranteed across all variants.
- Required Components: Verify your I/O cards are compatible with this base revision. Some older Ovation I/O cards may not seat correctly or communicate with newer base modules.
- Replacement & Alternatives: The 1X00781H01L is a direct replacement for other 1X00781H01L units. If your system uses a variant like the 1X00781H01M, contact us for cross-compatibility verification before ordering.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check. Send us a photo of your existing module’s label plate and I/O card part numbers, and we will verify the exact match before you order.
