Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Part Designation | AAP3798102-00037 |
| Manufacturer | CAMERON (Cooper-Joy / Cameron compressor platform) |
| Function | Operation Panel / UIM (User Interface Module) |
| Supply Voltage | 24 VDC |
| Communication Interfaces | RS485, RS232 (to MLM main board) |
| Compatible Compressors | TA2000, TA3000, TA6000, TA9000, TA11000, MSG series |
| Paired Main Board | MLM — AAP3798102-00031 / AAP3798102-00131 |
| Related UIM Suffix | AAP3798102-00130 (alternate UIM revision) |
| Control Architecture | PID-based compressor control via MLM; UIM provides operator interface |
| Availability | Surplus / refurbished / new-old-stock |
Product Introduction
Swapping the wrong AAP3798102 suffix is one of the fastest ways to turn a compressor panel repair into a communication fault that never clears. The CAMERON AAP3798102-00037 is the operation panel (UIM) for Cameron/Coper-Joy centrifugal compressor control systems. It is not the main controller — that role belongs to the MLM board (-00031 / -00131). The UIM provides the operator interface: displaying pressure, temperature, speed, and status parameters; allowing navigation through menus; acknowledging alarms; and issuing operator commands to the MLM over RS485/RS232.
This distinction matters in procurement. Many surplus listings bundle all variants together, but the -00037 UIM cannot replace an MLM main board, and an MLM cannot serve as an operator panel. The UIM communicates with the MLM, which executes the PID control logic, reads sensor inputs, and drives outputs such as inlet guide vanes and bypass valves. If the compressor trips on a control fault, the root cause may be the MLM, the UIM, the communication link between them, or a field sensor — and the replacement part depends on which layer has failed.
QA/QC Transparency SOP
- Intake & Role Verification — Confirm the label reads -00037 and identify it as the UIM/operation panel. Reject units labeled as MLM (-00031/-00131) if the requirement is the operator panel, and vice versa.
- Suffix Cross-Check – Record the full suffix. The -00037 and -00130 are both UIM variants; the -00031/-00131 are MLM main boards; the -00140 is listed as a control panel in some channels. Do not substitute across roles.
- Visual & Connector Inspection — Inspect the display, keypad, RS485/RS232 ports, and 24VDC power terminals for corrosion, bent pins, cracked housings, or heat damage.
- Functional Testing — Apply 24VDC and verify display boot, keypad response, and communication with the MLM. Confirm parameter readback and alarm display if a test bench with the paired MLM is available.
- Final QC & Packaging — Photograph labels, connectors, and display condition. Pack in anti-static packaging with port protection. Include a test record showing suffix, supply voltage, communication verification, and compatible compressor series.
Field Engineer Gotchas
- UIM ≠ MLM. The -00037 is the operator panel. The -00031/-00131 is the main control board. They are not interchangeable.
- Suffix discipline is mandatory. -00037, -00130, -00031, -00131, and -00140 all belong to the family but serve different roles or revisions.
- Communication link is a common failure point. A dead UIM display may actually be a failed RS485/RS232 link, a bad cable, or a failed MLM — not the panel itself.
- 24VDC polarity is critical. Reversed polarity can damage the UIM instantly.
- Surplus units may be blank or mislabeled. Some vendors list all variants under a single title. Always verify the actual label photo.

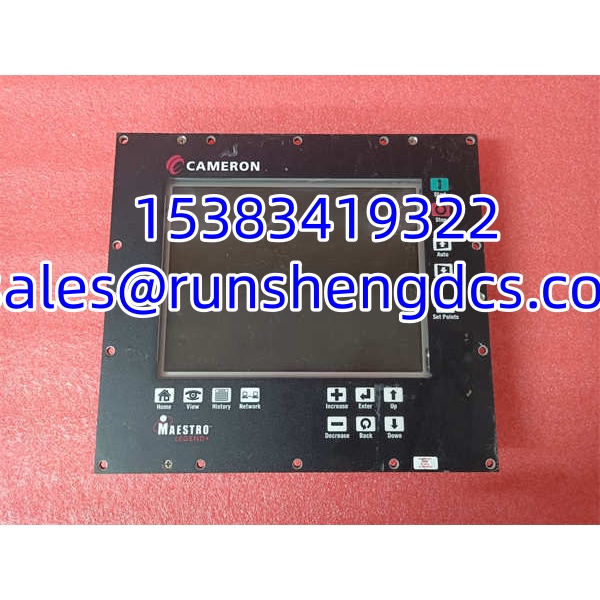

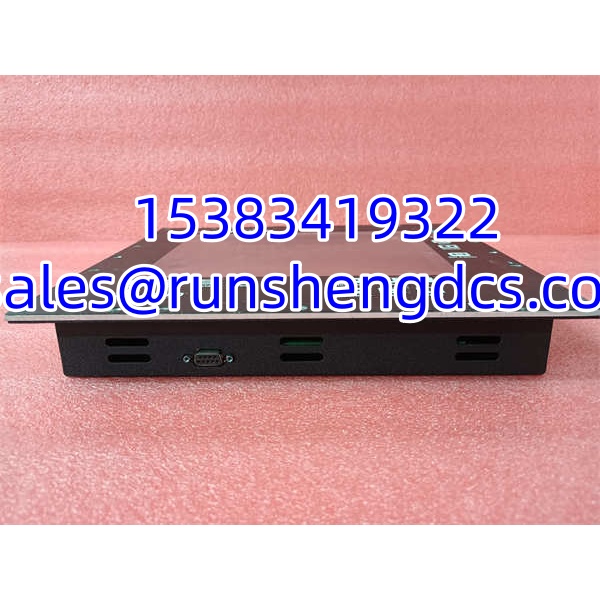

CAMERON AAP3798102-00037
Application Scenarios
- Cameron centrifugal compressor UIM replacement. The operator panel display is blank or unresponsive on a TA6000/TA9000 unit.
- Communication fault troubleshooting. The MLM runs the compressor but the UIM shows no parameters — root cause may be the RS485 link or the UIM itself.
- Preventive spare for critical compressor trains. Plants running Cameron TA/MSG series stock verified UIM and MLM pairs.
- Control panel refurbishment. An aging Cameron compressor panel is rebuilt; both UIM and MLM are verified or replaced as a matched set.
FAQ
No. It is the UIM operation panel. The main controller is the MLM board (-00031 / -00131).
What compressors is it compatible with?
TA2000, TA3000, TA6000, TA9000, TA11000, and MSG series Cameron/Coper-Joy centrifugal compressors.
Can I use -00130 instead of -00037?
Both are UIM variants, but suffix compatibility should be confirmed against the compressor model and OEM documentation before substitution.
What voltage does it require?
24VDC.
How does it communicate with the controller?
Via RS485/RS232 to the MLM main control board.
What should I verify before buying?
Confirm the exact suffix (-00037), the compressor model, whether you need the UIM or the MLM, and obtain a label photo from the supplier.
