Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part number | 136180-01 (3500/92 front card PWA) |
| Product type | Communication gateway module |
| Platform | Bently Nevada 3500 rack |
| Primary function | Publishes rack monitored values, status, and alarms to external systems |
| Ethernet interface | RJ45, 10BASE-T, IEEE 802.3, Modbus/TCP |
| Serial interfaces | RS232 / RS422 / RS485, Modbus RTU |
| Supported protocols | Modicon Modbus RTU, Modbus/TCP, Bently Nevada proprietary protocol |
| Data update rate | Up to 1-second refresh from rack modules, depending on configuration |
| Power | Powered from 3500 rack backplane; no separate supply |
| Power consumption | ~5.0 W typical (RS232/RS422); ~5.6 W (RS485) |
| Safety certification | SIL 2 (TÜV, IEC 61508) |
| Operating temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Weight | Approximately 0.82 kg (1.8 lb) |
| Dimensions | Approximately 241 × 24.4 × 242 mm |
| Status indicators | OK LED, TX/RX LED |
Product Introduction
The 3500/92 is the bridge between the Bently Nevada 3500 protection rack and the plant control network. It does not measure vibration, displacement, or speed directly. Instead, it collects monitored values, alarm states, and module diagnostics from the 3500 backplane and publishes them to DCS, PLC, historian, or HMI systems.
The 136180-01 is the front card PWA. It must be paired with the correct rear I/O module to match your communication architecture. If your DCS expects Modbus/TCP over Ethernet, you typically need the Ethernet-capable rear module. If your integration runs over RS485, the RS485 rear module is required. Using 136180-01 without verifying the rear I/O part number is a common procurement mistake.
Its configurable Modbus register utility replaces the older primary-value Modbus registers from the 3500/90 generation, giving more flexible mapping of vibration values, alarm states, and channel status into the DCS address space.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm 3500/92 designation and 136180-01 front card PWA. Photograph front panel, rear I/O module, connector face, and nameplate. Verify the rear I/O part number matches the required serial/Ethernet option.
- Live Functional Testing: Install into a compatible 3500 test rack. Verify module recognition, OK LED, and TX/RX activity. Confirm communication with 3500 configuration software via Ethernet or serial as applicable.
- Communication Testing: Test Modbus/TCP connectivity over RJ45 and/or Modbus RTU over the configured serial port. Verify register reads for monitored values, alarm status, and module health. Confirm no address conflicts or timeout errors.
- Electrical & Environmental Checks: Verify backplane power consumption, connector integrity, and LED behavior. Inspect for capacitor swelling, corrosion, or damaged Ethernet/serial ports.
- Final QC & Anti-Static Packaging: Label with front PWA 136180-01, rear I/O part number, tested protocol, register map notes, and LED status. Pack in ESD-safe materials with connector protection. Include photos and a test summary.
Field Engineer Gotchas
- Front card is not the full gateway: 136180-01 is the front PWA. The rear I/O module defines whether the gateway supports RS232/RS422, RS485, or Ethernet/serial combinations.
- Not a measurement module: The 3500/92 does not accept sensor inputs directly. It reads data from other 3500 monitor modules over the backplane.
- Modbus register mapping must be verified: The configurable Modbus register utility must be reviewed against the DCS point list. A module swap without exporting/restoring the register map can break integration.
- Ethernet speed is 10 Mbps: The 3500/92 Ethernet interface is 10BASE-T. Modern switches usually handle this, but auto-negotiation or managed-switch settings can cause intermittent communication loss.
- Replacing only one half of a pair: If the rear I/O module is damaged, replacing only the 136180-01 front card will not restore communication.
- SIL boundary awareness: The 3500/92 is SIL 2 certified, but it is primarily a communication gateway. Trip decisions are executed by relay modules and monitor logic, not by the gateway itself.

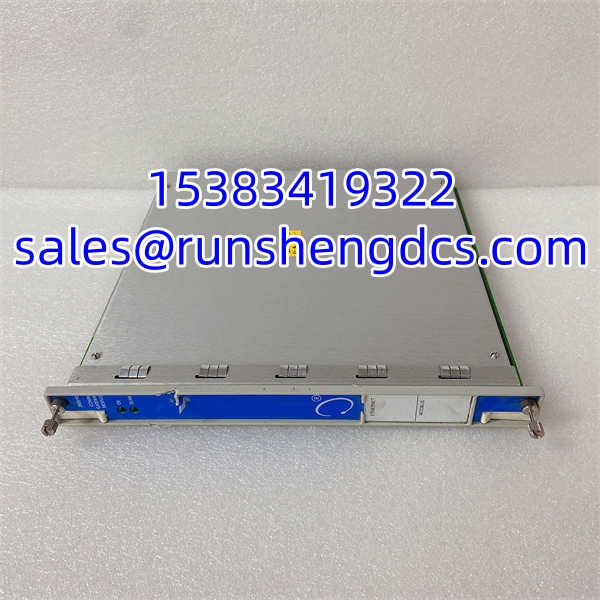

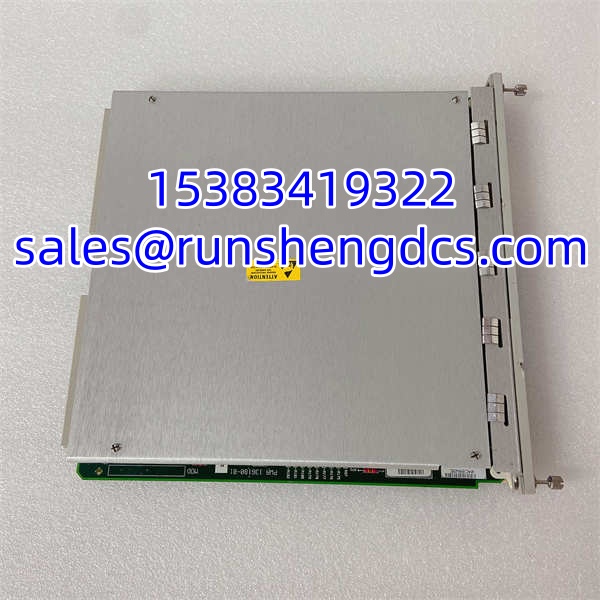

Bently Nevada 3500/92 136180-01
Application Scenarios
- DCS integration for turbine/compressor protection racks: Publishes vibration, displacement, speed, and alarm status from the 3500 rack to a DCS or PLC via Modbus/TCP or Modbus RTU.
- Legacy 3500 rack communication upgrade: Replaces or supplements older 3500/90 communication paths while maintaining existing Modbus register mapping through the configurable register utility.
- Troubleshooting lost DCS visibility: When the 3500 rack trips or alarms correctly but the DCS shows stale data, the 3500/92, its rear I/O module, and the Modbus register map become primary suspects.
FAQ
Is 136180-01 the complete 3500/92 module?
No. 136180-01 is the front card PWA. The rear I/O module must also match your required communication option.
What protocols does it support?
Modbus RTU over serial, Modbus/TCP over Ethernet, and the Bently Nevada proprietary protocol for configuration and data acquisition.
Can it read vibration values directly from sensors?
No. It reads monitored values from other 3500 modules over the rack backplane.
What is the data update rate?
Up to 1-second refresh from the rack, depending on configuration and module count.
Is it SIL certified?
Yes, the 3500/92 family is SIL 2 certified per TÜV/IEC 61508.
Should I buy this as surplus?
It can be a practical spare if the front PWA, rear I/O module, firmware, and Modbus register map are verified. Avoid buying 136180-01 without confirming the rear I/O part number.
