Description
Key Technical Specifications
| Parameter | Value / Note |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Designation | 3500/42M Proximitor/Seismic Monitor |
| Front Board P/N | 176449-02 |
| Common Assembly | 3500/42-01-00 = 176449-02 + 128229-01 |
| Channels | 4 configurable channels |
| Supported Measurements | Radial vibration, thrust position, differential expansion, eccentricity, seismic velocity/acceleration, absolute shaft vibration |
| Sensor Compatibility | Bently Nevada proximity probes, seismic/velocity sensors, accelerometers |
| Analog Output | 4–20 mA per channel (recorder/DCS output) |
| Communication | 3500 rack backplane via RIM/TDI; optional 3500/92 gateway |
| Standards | API 670 machinery protection; SIL 2 capability per 3500 system certification |
| Hot-Swap | Supported within a powered 3500 rack per system design |
Product Introduction
In a 3500 TSI rack, pulling the wrong monitor board is a fast way to lose alarm coverage on a turbine or compressor train. The 176449-02 is not a generic vibration card; it is the front board for the Bently Nevada 3500/42M Proximitor/Seismic Monitor. It sits in a 3500/05 rack and works with a rear I/O terminal board to accept proximity probes, seismic sensors, and accelerometers.
The 3500/42M provides four configurable channels. Each channel can be programmed through the 3500 Rack Configuration Software to measure radial vibration, thrust position, differential expansion, eccentricity, seismic velocity/acceleration, or absolute shaft vibration. Unlike the 3500/40M, the 3500/42M provides a dedicated 4–20 mA recorder output per channel, which makes it useful when the DCS needs a proportional vibration or position signal. For procurement, treat 176449-02 as the 3500/42M front board. Always verify the rear I/O board part number before releasing a replacement.
QA/QC Transparency SOP
- Intake & Origin Verification — Record 3500/42M, 176449-02, rear I/O board P/N, serial number, rack slot, and channel configuration. Reject units with damaged front connectors, burnt components, or missing labels.
- Live Functional Testing — Install the module in a known-good 3500 rack. Apply calibrated proximity-probe simulator signals and seismic inputs. Verify channel readings, alarm/danger trip points, and 4–20 mA outputs.
- Electrical Parameter Tests — Check backplane power draw, 4–20 mA loop accuracy, sensor supply voltage, insulation resistance, and I/O terminal continuity. Flag drift, open channels, or unstable trip behavior.
- Configuration Verification — Upload the existing rack configuration and compare channel types, setpoints, trip delays, and recorder output mapping. Back up the rack configuration before final acceptance.
- Final QC & Anti-Static Packaging — Label with full assembly P/N, front/rear board numbers, and tested channel summary. Protect connectors, apply ESD packaging, and include a test report for the receiving engineer.
Field Engineer Gotchas
- 176449-02 is only the front board. A working replacement usually requires the correct rear I/O board. For 3500/42-01-00, the rear board is typically 128229-01.
- Do not confuse 3500/42M with 3500/40M. The 42M provides 4–20 mA outputs per channel; the 40M does not. Swapping them can break DCS analog feeds.
- Channel pairing matters. Channels are configured in pairs. Channels 1–2 and 3–4 can run different measurement types, but the pairing must match the existing configuration.
- Sensor type must match the channel setup. A channel configured for proximity probe input will not behave correctly if wired to a seismic sensor without reconfiguration.
- Hot-swap is supported, but not risk-free. The 3500 system allows module replacement under power, but alarm outputs and 4–20 mA signals may be disturbed during insertion. Follow site bypass and permit procedures.
- Upload the rack configuration first. If the rack is still communicating, save the configuration before removing any monitor module.

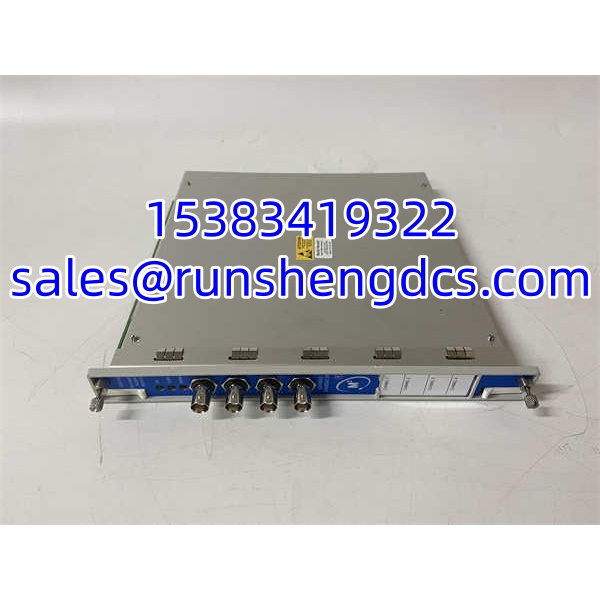

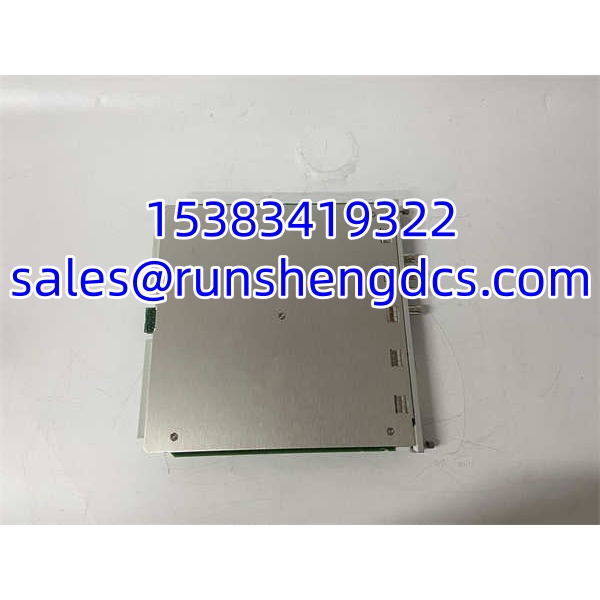

Bently Nevada 3500/42M 176449-02
Application Scenarios
- Replacing a failed 3500/42M front board in a steam turbine TSI rack where radial vibration and thrust position must remain monitored.
- Supporting a centrifugal compressor train that uses 3500/42M channels for both proximity probe vibration and seismic casing vibration.
- Maintaining a legacy 3500 rack where the 4–20 mA outputs feed a DCS historian and alarm summary.
- Keeping a critical rotating asset protected while planning a migration to newer Bently Nevada or integrated control systems.
FAQ
Is 176449-02 the same as 3500/42M?
176449-02 is the front board for the 3500/42M Proximitor/Seismic Monitor. The full module assembly also includes a rear I/O terminal board.
What rear board does it need?
For 3500/42-01-00, the rear board is typically 128229-01. Other I/O boards exist for different sensor configurations, so verify the installed assembly.
Can it replace a 3500/40M?
Not directly. The 3500/42M provides 4–20 mA outputs per channel; the 3500/40M does not. Substitution requires configuration and wiring review.
Does it support hot-swap?
Yes, the 3500 system supports hot-swappable modules. However, follow site safety procedures because alarm relays and analog outputs may be affected during replacement.
Is this still sold new?
Treat it as a legacy spare. Availability depends on region and distributor stock. Surplus, removed, and refurbished units are common.
Can I use it with 3300 XL probes?
Yes. The 3500/42M supports Bently Nevada proximity probes, including 3300 XL series, when configured correctly.
What if my module only shows 176449-02?
Photograph the full nameplate, rear board number, and rack slot. Do not install it as a confirmed replacement until the assembly matches the failed unit.
